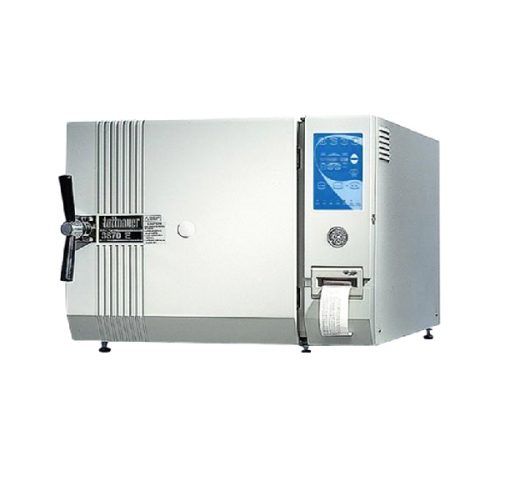

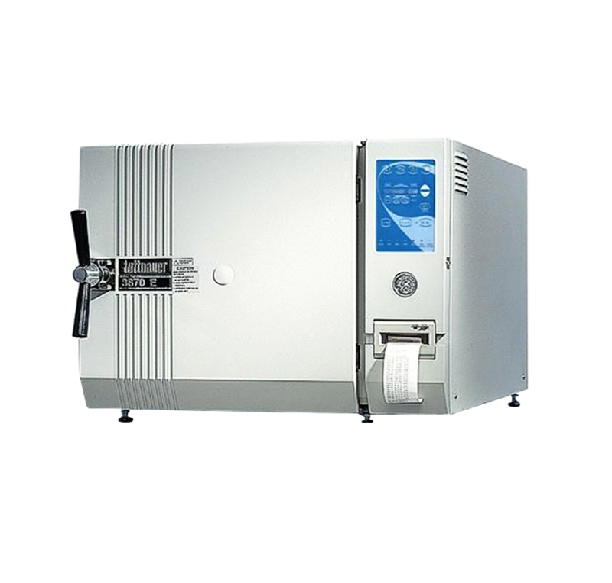

Tuttnauer 3870EA Automatic Autoclave – Large Capacity


SKU: TLC-387 Category: Tags: , ,

Tuttnauer 3870EA Automatic Autoclave – Large Capacity

The Tuttnauer 3870EA Automatic Autoclave – Large Capacity has a closed-door active drying system to maintain sterility and ensure efficient drying of packs and pouches. A high-efficiency air pump circulates hot air after the sterilization cycle for fast drying. These steam sterilizers use a replaceable HEPA 0.2m air filter.

Tuttnauer 3870EA Automatic Autoclave Features

  • New contemporary design with an easier to read bright blue display panel.
  • Pre-loaded cycles for unwrapped instruments; wrapped/packs; liquid and additional drying cycle.
  • Cycle time is (hot) 40 minutes, (cold) 55 minutes.
  • The Chamber is 15″ x 30″ with a 22-gallon volume (85L) and holds 15 full standard cassettes.
  • All program parameters can be changed and stored.
  • Automatic shut off at the end of both the sterilization and dry cycles.
  • Audible and visual cycle interruption alert.
  • Double safety locking device prevents the door from opening while the chamber is pressurized.
  • Low water sensor prevents activation of sterilization cycle when there is insufficient water in the chamber or reservoir.
  • Constant monitoring of temperature and pressure for sterilization.
  • Power outage recovery system.
  • Door design prevents steam from coming in contact with the control panel.
  • Optional printer.
  • High-Efficiency air pump.
  • Decreased overall drying time.
  • Closed door drying.
  • Hepa filter 0.2μm air filter (replaceable)
  • Circulates hot air after the sterilization cycle for fast drying.

Tuttnauer 3870EA Automatic Autoclave Specifications

  • Standard Unwrapped Cycle Time
    • COLD: 32 mins
    • HOT: 23 mins
  • Overall Dimensions: 34.5″ D x 26” W x 20.6” H
  • Chamber
    • Size: 15″ Diameter x 30″ L
    • Volume: 22 Gal (83 liters)
    • Capacity: (15) FULL Standard Cassettes
  • Tray
    • Number of Trays: (2)
    • Dimensions:
      • 26.6″ D x 11.3″ W x 1″ H
      • 26.6″ x 13.8″ x 1″
  • Electrical: 230 V | 50-60 Hz | 13.6 A | 3000 W
  • Shipping Weight: 213 lbs.
