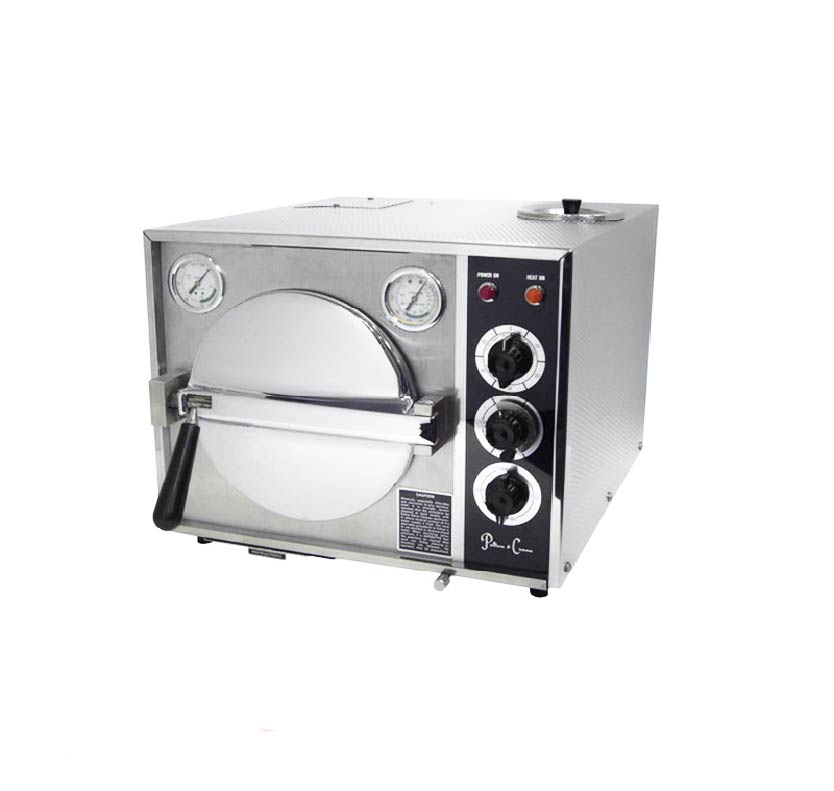

Pelton & Crane OCM Autoclave 7″ x 14″ Chamber

Pelton & Crane OCM Autoclave 7″ x 14″ Chamber

The Pelton Crane OCM Autoclave 7″ x 14″ Chamber, is a steam pressure model ideally suited for surgery and veterinary practices but can also be found in many other settings: physician’s offices, clinics, hospitals, nursing homes, and laboratories. This model features a stainless steel door.

The OCM “Omni-Clave” is a steam pressure autoclave made of stainless steel. It comes with an automatic shut off and venting mechanism. Smallest of the Omni-Clave models.

Reaches 250 °F in approximately twelve minutes from a cold start or approximately 5 minutes from a warm start. Maybe used as a steam or dry-heat sterilizer. Optional dry-heat door is available. Equipped with ASM E-type safety valve to limit maximum chamber pressure to 35 PSI. Reservoir drain conveniently located at front. Unique bolt latch is designed to prevent door from unsafe opening under pressure. Easily replaceable silicone door gasket.

This autoclave is best for smaller offices and can be found in a range of settings, including dental offices, physician’s offices, clinics, hospitals, nursing homes, and laboratories.

Pelton & Crane OCM Autoclave Specifications

• Dimensions
  • Overall: 15″ W, 18″ D x 13″ H
  • Chamber Size: 7″ Diameter x 14″ D
• Sterilizer Type: Manual Steam
• Model Type: Tabletop / Countertop / Desktop
• Integrated Reservoir: no plumbing required
• Controls: on Front Panel
• Water Cut-Off: Low
• Safety Door
• Non-Insulated Door
• Volume: 2 Gallons
• Tray Capacity: 2
  • Small: 5″ x 13″
  • Large: 6 1/2″ x 13″
• Cycle Time: 3 to 25 minutes
• Power: 110-120 V 50/60 Hz
• Weight
  • NET: 50 lbs
  • Gross: 70 lbs
• Model is listed by UL and CSA
