Philips HeartStart MRx Defibrillator AED

Original price was: $9,995.00.Current price is: $8,995.00.

SKU: MRX-161 Category: Tags: ,

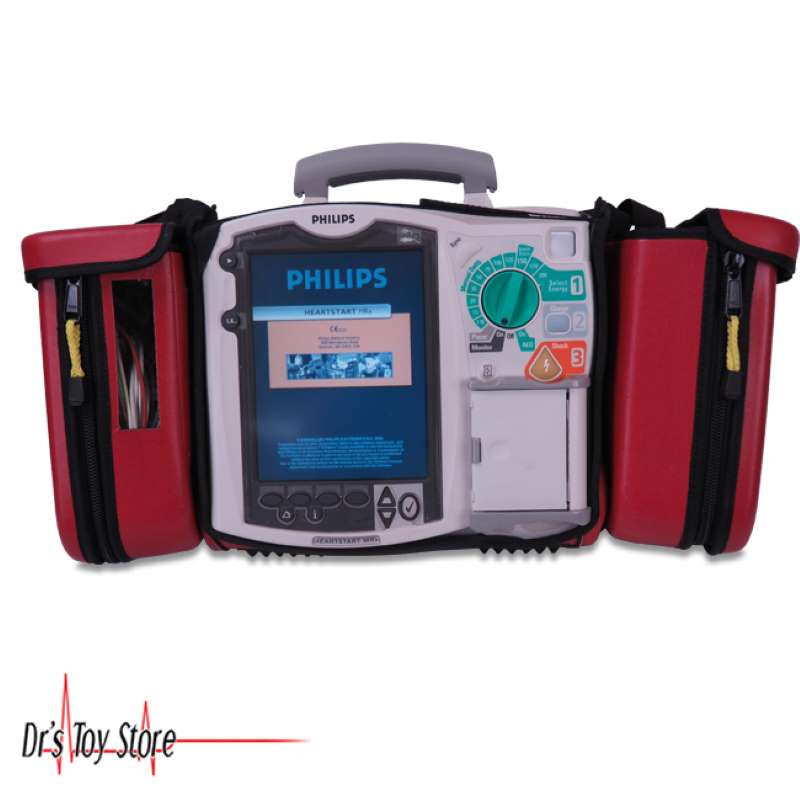

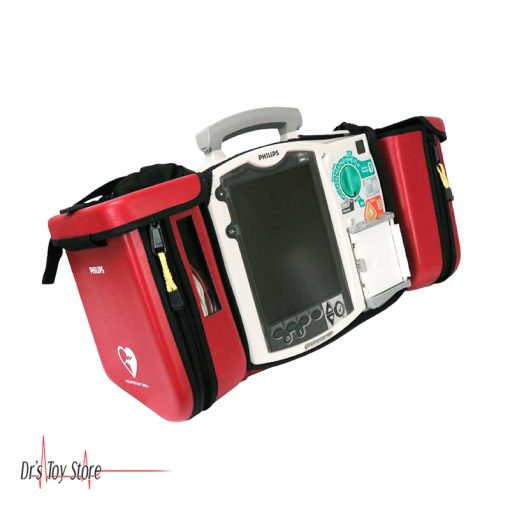

Philips HeartStart MRx Defibrillator AED

Here at the Dr’s Toy Store, we bring you a great addition to AED defibrillation, the Philips HeartStart MRx Defibrillator. This HeartStart MRx AED is a lightweight and portable monitor and defibrillator. It provides four modes of operation such as Monitor, Manual Defib, AED, and Pacer. It also offers a long battery life, quick charging defibrillator, and state of the art technology that is sure to please all users. In monitor mode, you can monitor up to four ECG waveforms. Alarms are available to alert you to changes in the patient’s condition. You can also display a Vital Signs Trending Report to view all key parameters and their measurements over time, at a glance.

Built tough, reliable and ready for action
For whatever you face in a day, the HeartStart MRx is built to be tough and ready for action. The HeartStart MRx is designed to meet stringent test requirements including spraying water, military helicopter vibration, mechanical shock, one-meter drop, electromagnetic compatibility, and extreme environmental conditions (temperature, humidity, and altitude). In addition, the same MRx model that we ship to all EMS customers has passed an extensive battery of tests, performed by the US military, to achieve aeromedical air-worthiness certification. These military-level tests include baseline performance and durability, electrical safety, vibration, electromagnetic compatibility, climate, altitude, rapid decompression, explosive atmosphere, acceleration, and in-flight performance evaluations.

Philips HeartStart MRx Defibrillator AED Features

  • Code view
  • Monitor view
  • Task-specific view
  • Analysis on screen
  • Longest battery life
  • Store up to 50 12-leads
  • Device diagnostic mode
  • Large, bright, easy-to-view display
  • Configurable monitor and defibrillator in one device
  • 12-Lead view which eliminates the need to resend
  • Temperature, an increasingly important parameter

Philips HeartStart MRx Defibrillator AED Specifications

  • Waveform: Truncated Exponential Biphasic. Waveform parameters adjusted as a function of patient impedance
  • Output Energy
    • Manual: 1-10, 15, 20, 30, 50, 70, 100, 120, 150, 170, 200 Joules max
    • Internal Defibrillation: limited to 50 Joules
    • AED Mode (single energy output): 150 Joules @ 50 Ohm load
  • Charge Time: Less than 5 seconds to 200 Joules with a new, fully charged lithium ion battery at 77 ºF
  • Shock Delivery: Via multifunction electrode pads or paddles
  • Quick Shock: Less than 10 seconds from cessation of CPR to shock delivery
  • Patient Impedance Range Minimum: 15 Ohm (internal); 25 Ohm (external) Maximum: 180 Ohm
  • AED Mode
  • Shock advisory sensitivity and specificity meet AAM
  • IDF-39 guidelines
  • Dimensions: 12 1/2″ W x 8 1/3″ D x 11 2/3″ H
  • Weight: 13.2 lbs
  • Temperature
    • Operating: 32 ºF – 113 ºF
    • Storage: -4 ºF – 158 ºF

Philips HeartStart MRx Defibrillator Package Includes

  • Philips MRX (M3535A)
  • HeartStart Pad Connector Cable (M3508A)
  • DP Electrode Pads
  • ECG Cables (M1644A & M1602A)
  • Ambu WhiteSensor WS ECG Electrodes (2)
  • SPo2 Finger Sensor (M1191A)
  • Blood Pressure Cuffs (1 Adult & 1 Large Adult)
  • NiBP Hose (M1598B)
  • EtCO2 Sensor (M1920A)
  • Plug-style Test Loader (M3725A)
  • Battery
  • AC Adapter
  • Power Cord
  • Carrying Case
  • Printer
  • Extra Printer Paper Roll
