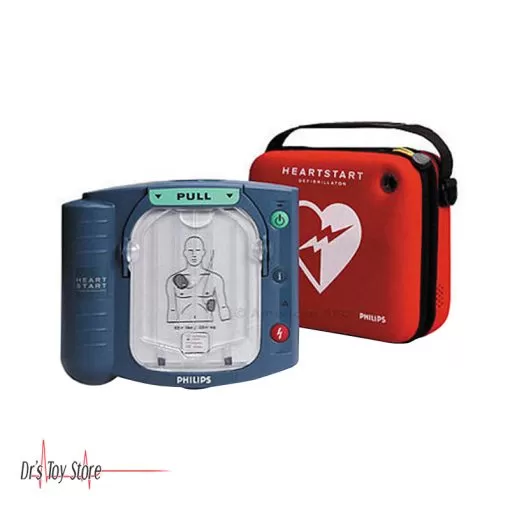

Philips HeartStart Onsite AED

Original price was: $1,695.00.Current price is: $1,495.00.

This AED does not require medical authorization.

SKU: PHS-118 Categories: , Tags: ,

Philips HeartStart Onsite AED

Embracing reliability and ease-of-use, this high-quality, low-cost Philips Heartstart Onsite AED is designed for use by the lay-responder. OnSite AED is ideal for homes, churches, communities, offices, schools, gyms and corporations. Also known as the “Home” defibrillator.

  • The current survival rate for Sudden Cardiac Arrest – SCA – is under 7%
  • The likelihood of successful resuscitation decreases by about 10% with every minute that passes
  • It is estimated that an additional 40,000 lives could be saved each year in the U.S. alone with widespread access to defibrillators

Philips HeartStart Onsite AED Features

  • Simple to operate – ready to rescue
  • Smart Biphasic Therapy – delivering maximum shock with high current, but low energy dose
  • Quick Shock – chest compression interruptions are minimized
  • Visual Queues – graphics-based visual instructions
  • Guided Audio Instructions – Philips Heartstart Onsite AED provides on-demand audio coaching
  • Built-in Self Test – conducts self tests every single day
  • Integrated Smart Pads – application senses the patient’s skin, realizes it’s out of the box already

SCA most often occurs when the electrical system of the heart becomes chaotic, causing it to stop beating effectively. Lacking proper blood flow, the person becomes unresponsive, stops breathing normally,
and will likely die unless promptly treated.

Philips Heartstart Onsite AED Defibrillator enables virtually anyone to treat the most common cause of SCA by delivering a shock quickly and effectively, wherever it happens – at work, at play, while traveling – providing the power to save a life.

Philips HeartStart Onsite AED Specifications

  • Waveform: Truncated Exponential Biphasic. Waveform parameters adjusted as a function of each patient’s impedance
  • Therapy: Adult defibrillation: Peak current 32A (150 J nominal into a 50-ohm load). Pediatric defibrillation with optional Infant-Child pads cartridge installed: Peak current 19 A (50 J nominal into 50-ohm load)
  • Shock-to-Shock cycle time: Typically less than 20 seconds between shocks in a series
  • Quick Shock: Able to deliver a shock after the end of a CPR interval, typically in 8 seconds
  • Voice instructions: Detailed voice messages guide responder through use of the defibrillator
  • CPR coaching: Instructions for adult or infant-child CPR available at user’s option
  • Shock delivery: Via adhesive pads placed on patient’s bare skin as illustrated on pads
  • Controls: Green SMART Pads cartridge handle, green On-Off button, blue i-button, orange Shock button
  • Indicators: Ready light; blue i-button; caution light, Shock button lights up when shock is advised
  • Dimensions: 2.8″ D x 7.4″ H x 8.3″ W
  • Gross Weight: 3.3 lbs
  • Net Weight: 2.4 lbs
  • Operating Temperature: 32 ºF – 122 ºF
  • Standby Temperature: 50 ºF – 109 ºF

This Philips Heartstart Onsite AED package Includes

  • 1 New HeartStart OnSite AED Unit
  • 1 Long-Life Battery Pack
  • 1 Set of Adult Electrodes
  • Owner’s Manual
