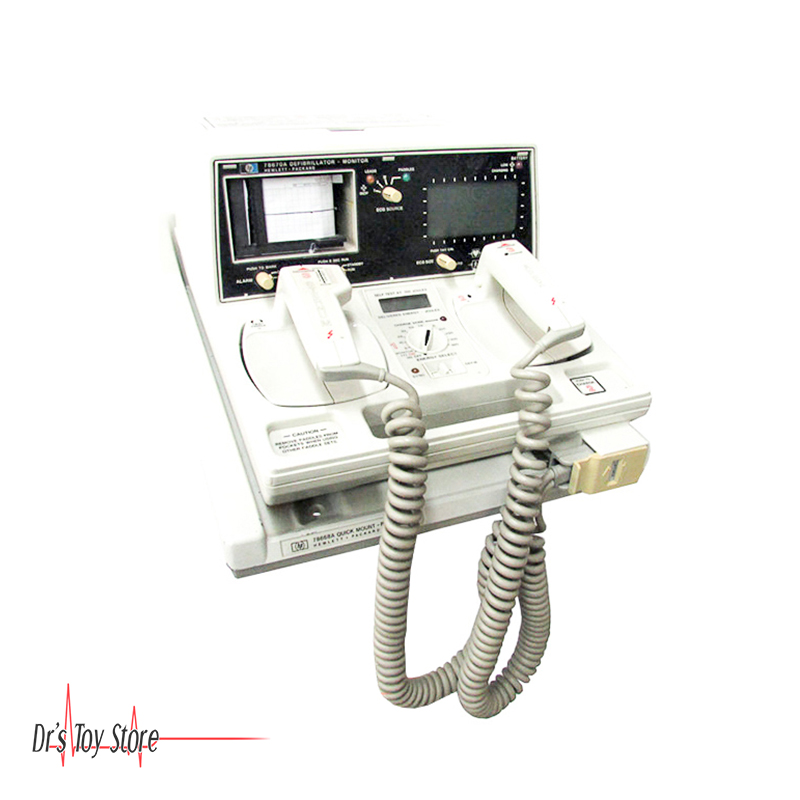

Hewlett Packard 78670A Defibrillator
The Hewlett Packard 78670A Defibrillator is a critically damped sinusoidal waveform defibrillator combined with a non-fade ECG monitor and annotating strip chart recorder. Energy is selectable to 360 Joules (delivered @ 50-ohm load) in eleven discrete steps, (400 Joules replaces 360 Joules with option A01).
Hewlett Packard 78670A Defibrillator Features
- Defibrillator with ECG and recorder
- Built-in pads
- Built-in Quicklook
- Range 30-220 BPM
- Resolution 1 BPM
- Noise Rejection
- Safety alarm
The ECG Monitor displays HEART RATE, and ECG obtained through the paddles or through a three-lead patient cable. HEART RATE ALARMS are preset at 30 and 150 BPM. Size of the ECG waveform is automatically controlled or can be manually adjusted if desired.
During a procedure the Hewlett Packard 78670A Defibrillator’s recorder automatically annotates
- HEART RATE
- SELECTED ENERGY
- DELIVERED ENERGY
- PEAK CURRENT
- PATIENT IMPEDANCE
The HP 78670A operates from a rechargeable 2.0 ampere-hour nickel-cadmium battery which provides fifty 360 Joule discharges, or more than 2.5 hours of continuous monitoring or 1.5 hours of combined monitoring and recording. A Model 78668A (Quick-Mount Power Base) is provided as a standard accessory and allows AC line power operation ope of the Defibrillator/Monitor while simultaneously charging its battery. During battery operation, a BATTERY LOW indicator flashes when a low battery condition exists.
Mounting the Hewlett Packard 78670A Defibrillator to the top of a cart or vertically on a wall, provides a secure mounting for the instrument as well as a quick release for emergency portable use. An accessory storage compartment provides convenient storage for patient leads, electrodes, and Redux paste. The compact, lightweight package design, along with battery operation, permits its use in portable applications.
