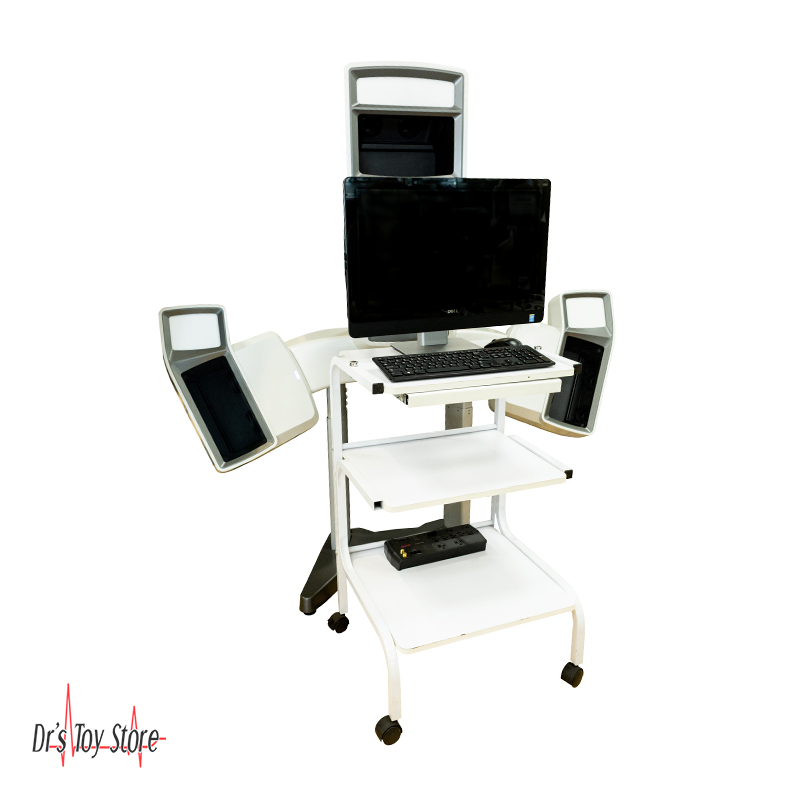

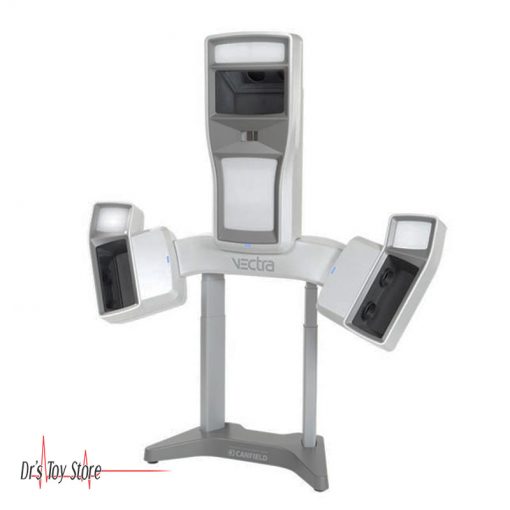

Canfield VECTRA XT

A single system to capture 3D face, breast, and body images.

With ultra-high resolution color image capture, VECTRA XT assures razor sharp definition of the smallest details. Its elegant design complements your space. With a wall projection of less than 17″, it takes up hardly any floor space.

  • Proprietary lighting system automatically adjusts for optimal face, breast and body imaging.
  • Compact design projects less than 17 inches from the wall.
  • Capture time of 3.5 milliseconds makes the VECTRA system immune to subject movement.
  • Software controlled height adjustment for fast accurate positioning.

Specifications

Capture System
  • 1.2 mm geometry resolution – face captures (triangle edge length)
  • 3.5 milliseconds capture time
  • On-board modular, intelligent flash units
  • Stereophotogrammetry technology
  • Floor stand with motorized lift to adjust for patient height
  • Dell computer and flat panel display
  • Download Dimensional Specifications (pdf)
Software
  • VECTRA Capture Module
  • Face Sculptor®
  • Breast Sculptor®
  • Body Sculptor®
  • RBX® image processing
  • VECTRA® 3D Analysis Module
  • Mirror® PhotoFile®
  • Mirror® PhotoTools

Requirements

System Power
  • Voltage: 110-220V AC and 220-240V AC
  • Frequency: 50/60 Hz
  • Current 4.0A (rms), 100-240V AC
Capture Computer
  • Configured and supplied by Canfield. Computers from other suppliers are not supported.
Consultation Computer Recommendation (not supplied)
  • Operating system:
    Microsoft Windows 7 Professional or Ultimate, 64 bit
    Windows 8.1 Professional, 64 bit,
    Windows 10 Professional, 64 bit
    Windows Home Edition & Windows VISTA – NOT SUPPORTED
  • Processor: Dual Core 2.75 GHz or higher (Quad Core recommended)
  • System memory (RAM): 16 GB or greater
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • Graphics card:
    • 1 GB minimum (2 GB recommended)
    • Dedicated nVidia or AMD cards (nVidia recommended)
    • Driver: latest available
    • 3.0 or later Open GL
  • Display: 1920 x 1080 minimum, 1920 x 1200 recommended (4K monitors not currently optimized)
  • Anti-virus software: Microsoft Security Essentials recommended
  • Wired printers (recommended for speed)

Mirror iPad App (used for VECTRA 3D images)

  • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router
Server / Network Guidelines (not supplied – minimum recommendations)
  • Windows Server 2008 R2 SP1 64-bit, Server 2012 64-bit or 2012 R2 64-bit, Server 2016 64-bit
  • Microsoft SQL Server 2008, 2008 R2, 2012 (Express edition is installed by default), 2016
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • 1 Terabyte HDD, minimum. Space required is dependent upon patient volume, camera used, and settings.
  • Regularly scheduled backups are highly recommended.
Notes
  • We do not support using a server class OS as a workstation.
  • WAN Connectivity is NOT supported.
