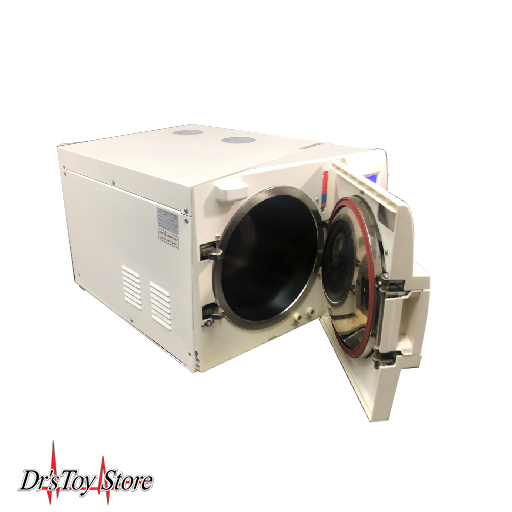

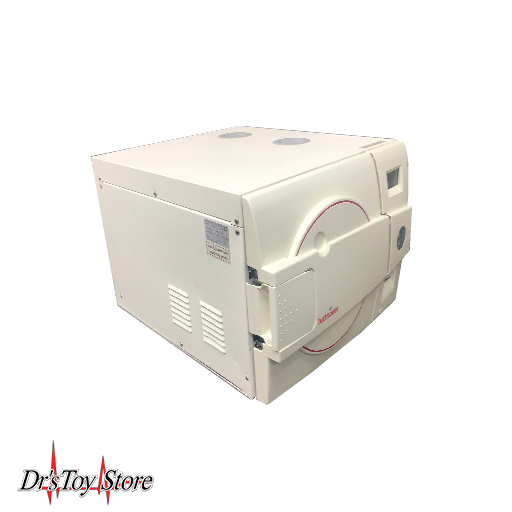

The Elara11 top-of-the-line tabletop autoclave is a robust Class B sterilizer for dental, medical
and veterinary clinics requiring pre post vacuum sterilization. A built-in vacuum pump used for
fractionated pre vacuum air removal eliminates air pockets from all load types and maximizes
efficient steam penetration. After sterilization is complete, the vacuum pump delivers efficient
post-vacuum drying.

Features

– Easy Fill for Front or Top access

– Rear waste reservoir for continuous
wastewater drainage

– Ergonomically designed keypad

– Automatic double safety locking door

– Multi-language

– Printer

– USB Support

– Network Port

Overall Dimensions (DxWxH)

• 26” x 20.9” x 17.3”
• 660mm x 530mm x 440mm

Chamber Volume

• 28.5 Liter
• 7.5 Gallon

Chamber Dimensions

• 11″ x 19.8″
• 280mm x 504mm

Tray Dimensions

• 16.3″ x 6.7″ x 0.6″
• 442mm x 177mm x 19mm

Tray Capicity

• 5 Tray

Standard Cassette Capacity

• 4 Full & 4 Half**(loaded vertically)

Voltage & Frequency

• 230V
• 50-60Hz

Power & Current

• 2300w
• 10A

Shipping Weight

• 186 Lbs
• 84Kg

Warranty

• 2-Year Parts and Labor
