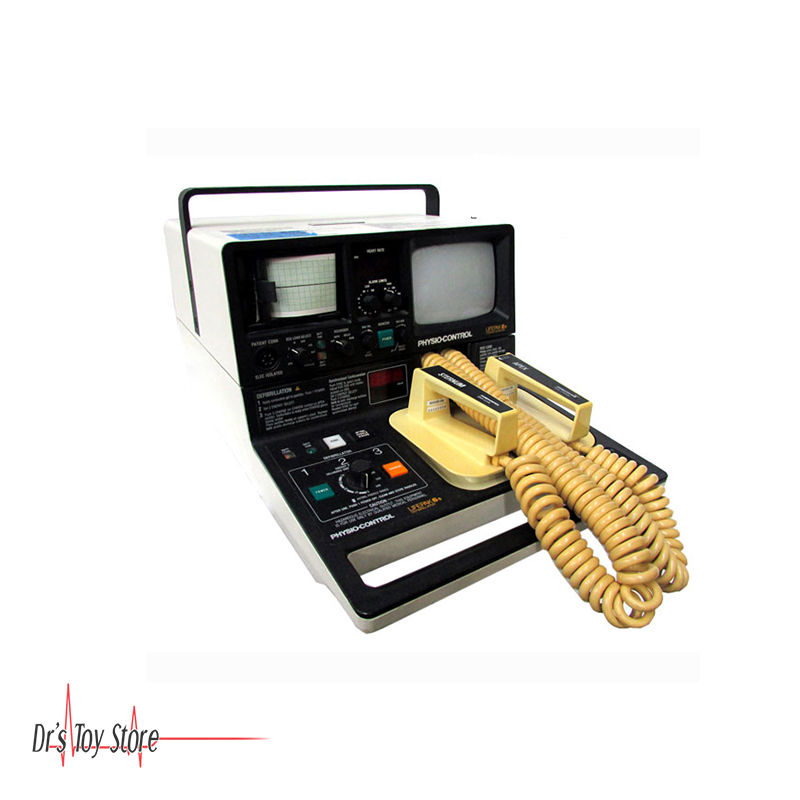

Physio-Control LifePak 6 Defibrillator
The Physio-Control LifePak 6 Defibrillator is equipped with a built-in recorder, CRT cardioscope display, and a heart rate meter. Other features include a systole beeper with adjustable volume, battery indicator, and adjustable low and high rate limit audio alarms.
The LifePak 6 consists of two modules: a Cardioscope / Recorder Module and a DC Defibrillator Module. Each module is battery or line operated, and they may be operated independent of each other or as a unit. The internal batteries are charged when the modules are connected to the line power. Full battery charge is accomplished in 16 hours for depleted cells.
The Cardioscope / Recorder module is connected to the DC defibrillator module through a special slide connector. They may be separated by pressing the lock release button on the right side of the DC defibrillator module. When joined, the two modules provide a lightweight combination that provides use of the system on a crash cart or hand carried from one area to another.
Physio-Control LifePak 6 Defibrillator Specifications
- Dimensions: 10 3/4″ W x 12″ D x 4 1/2″ H
- Weight: 15 lbs
- Display: 3″ x 4″
- Sweep Speed: 25 mm/sec
- Bandwidth: 0.5 Hz to 30 Hz
- Common Mode Rejection: minimum 72 dB
- Low Battery Indicator: Yes
- Calibration: Internal 1 mV calibration, push-button switch to calibrate instrument
- Rate Meter: 3 digit readout provides for display of the R-wave rate from 20 to 300 beats-per-minute.
The Physio-Control LIFEPAK 6 Defibrillator is a portable precision electronic cardiac care system for monitoring the ECG signal from the heart and for applying controlled monophasic defibrillating pulse to the heart or, in the synchronized mode, for performance of elective cardioversion by using the patient generated R-wave as a timing reference.
