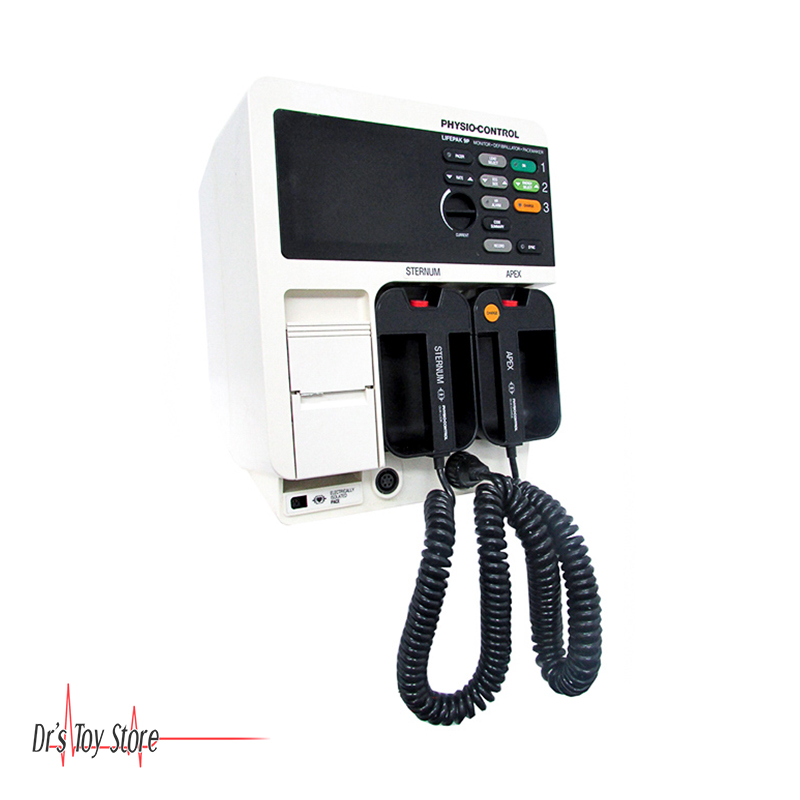

Physio-Control Lifepak 9P Defibrillator
The Physio-Control LifePak 9P Defibrillator is a microprocessor-based unit and available in the following models: 9, 9P (pacing) and 9A. This LifePak 9P Defibrillator Monitor was designed to meet the needs of clinical, biomedical engineering, and purchasing professionals throughout the world. The LifePak 9P’s simple 1-2-3 operation and user friendly display, plus its compact, portable, space-saving design, revolutionizes in-hospital defibrillation.
Physio-Control Lifepak 9P Defibrillator Features
- Micropressor-based unit with optional pacing
- Operates on either AC Power or Internal Battery Power
- Sealed lead acid battery back-up
- Built-in recorder
- Meet current ACLS standards and has annotating summary
- Allows for 17 energy selections, HR alarms, 5-lead monitoring, recorder and CODE Summary critical event record
- Provides: defibrillation, synchronous cardioversion, a Cathode Ray Tube monitor screen, a strip chart recorder, 3-lead electrocardiogram monitoring, heart rate display and alarms, multiple energy selection, and CODE SUMMARY critical event record.
Physio-Control Lifepak 9P Defibrillator Specifications
- Energy Selection
- External Paddles 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 50, 100, 200, 300, 360 Joules
- Internal Paddles 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 50 Joules
- Charge Controls: Independent momentary push-button controls on front panel and APEX paddle
- Paddle Cord Length: 10 feet
- Charging Time: Charge to 360 Joules in less than 10 s with a fully-charged battery
- Defibrillator Energy: ±15% at 50 Ω
- Accuracy: ±30% over the range of 25 to 100 Ω
- Defibrillator Waveform: 5 ms monophasic pulse
- AC Input: 120 to 240 VAC | 50 – 60 Hz
- Battery Type: Sealed Lead-Acid, 16 VDC nominal, 3 AHr
- Battery Capacity
- Number of 360J discharges: Typical – 75 | Minimum – 40
- Minutes of monitoring: Typical – 90 | Minimum – 70
- Low Battery Indicator
- Number of 360 Joules discharges before warning: Typical – 50 | Minimum – 20
- Minutes of monitoring: Typical – 90 | Minimum – 70
- Battery Charge Time 24 hours to full capacity
- Power Consumption: 160 W
- Dimensions: 11 2/3” W x 12 1/4” D x 14” H
- Weight 28 lbs
The microprocessor-based Physio-Control LifePak 9P Defibrillator includes an internal battery supply and is available with optional pediatric paddles, internal paddles, pacing cable and pads, and ECG patient cable and leads. Isolated ECG via Quick-Look defibrillator paddles, Fast-Patch disposable defibrillation / ECG electrodes or three-lead patient cable.
