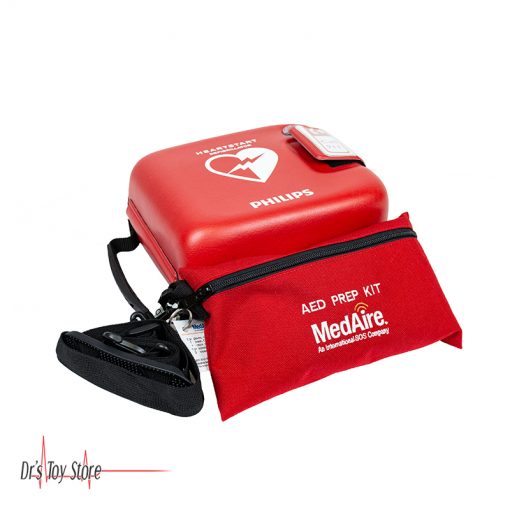

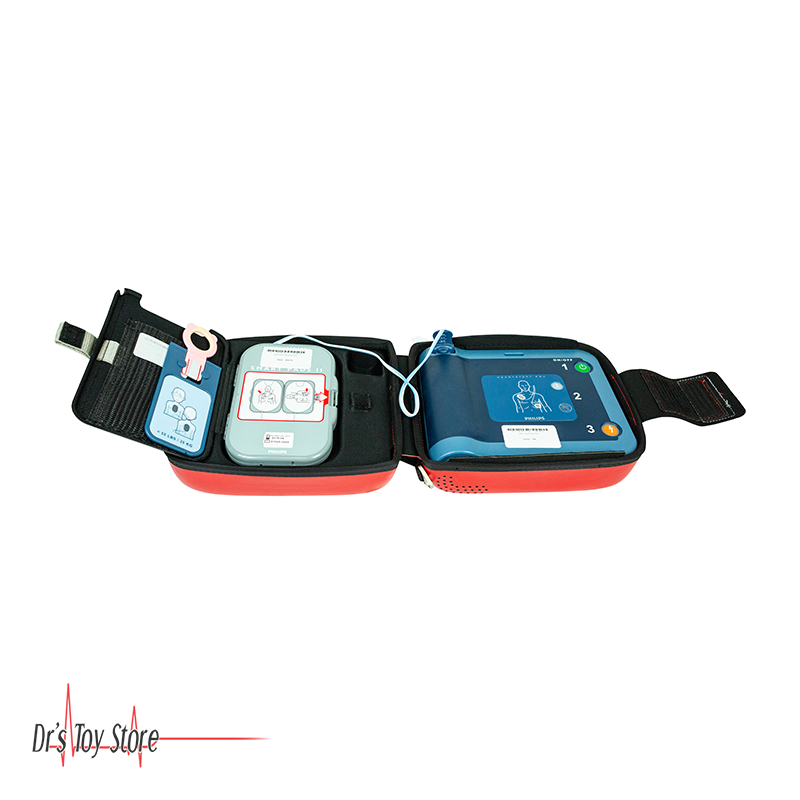

Philips Heartstart FRx AED Defibrillator – Waterproof Case
The Philips Heartstart FRx AED Defibrillator provides real-time guidance through simple, step-by-step voice commands, an audible metronome and CPR coaching to help guide the treatment of a suspected sudden cardiac arrest. With easy set-up, clear voice prompts, and rugged design, HeartStart FRx is designed for users trained in Basic Life Support (BLS).
Built for rugged environments. On the scene with law enforcement, on the field with student athletes, or on the job with employees, the FRx is the solution for helping treat victims of suspected sudden cardiac arrest (SCA) in demanding environments and conditions. Lightweight, rugged, and reliable, it can withstand rough handling, extreme temperatures, dust, or wet environments. Easily used on infants and children.
Waveform – Truncated Exponential Biphasic; waveform parameters adjusted as a function of each patient’s impedance
Therapy – Adult defibrillation: peak current 32 A (150 J nominal into a 50-ohm load) Pediatric defibrillation with optional FRx Infant/Child Key installed: peak current 19 A (50 J nominal into 50-ohm load)
Protocol – Device follows preconfigured settings; defibrillation and CPR protocol can be customized using HeartStart Event Review software
Philips Heartstart FRx AED Defibrillator Specifications
- Dimensions: 2.4″ D x 9″ W x 7″ H
- Weight: 3.5 lbs
Operating: 32 °F
Standby: 122 °F
- Crush: 500 pounds
- Operating: meets MILSTD 810F Fig.514.5C-17, random
- Standby: meets MILSTD 810F Fig.514.5C-18, swept sine

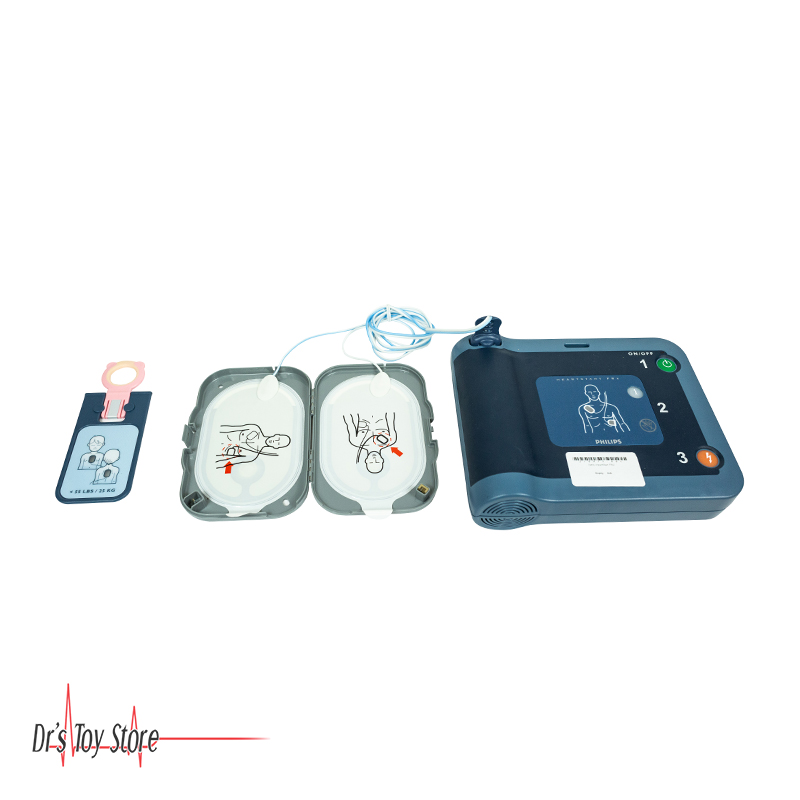

The Philips Heartstart FRx AED Defibrillator features a unique Infant / Child Key that allows you to use the same pads for both adults and children. Simply insert the key into the FRx. The defibrillator automatically adjusts the shock strength and adapts to provide pad placement and CPR instructions appropriate for children, according to American Heart Association guidelines—all without the need for different pads. Low maintenance to be ready when you need it.
Philips Heartstart FRx AED Battery Specs
- Battery (M5070A)
- Item numbers
- Standard: M5070A
- Aviation: 989803139301 (TSO C-142-U.S. only)
- Type: 9 VDC, 4.2 Ah, lithium manganese dioxide, disposable long-life primary cell
- Capacity: Minimum 200 shocks or 4 hours of operating time
- Install-by date: Battery is labeled with an install-by date of at least 5 years from date of manufacture
- Standby life: Four years typical when battery is installed by the install-by date
The Philips Heartstart FRx AED Defibrillator arrives practically ready for rescue. Everything is connected and in place. Just pull the green tab to start the self-test that confirms its readiness for use. Once initiated, the FRx is easy to maintain. It performs a series of automatic self-tests, including daily, weekly, and monthly self-tests to check pad readiness and verify functionality and calibration of circuits and systems, and it can go up to four years between battery replacements. Detailed defibrillation guidance so you know what to do.
The FRx tells you exactly what to do. To deliver a shock, place the pads on bare skin as shown in the placement diagram. The Philips Heartstart FRx AED Defibrillator determines if a shock is needed and if so, prompts you to press the orange shock button. The voice commands repeat and rephrase if you need additional help. Flashing icons and a reference guide help if you’re in a noisy setting.
Complete CPR assistance for BLS-trained rescuers. If you need help with CPR, the Philips Heartstart FRx AED Defibrillator gives instructions and audio cues that tell you how to do it. It guides you through the appropriate number, rate, and depth of chest compressions, as well as how to perform rescue breaths, as recommended by the American Heart Association.² If the Infant/Child Key is inserted, the instructions adapt to CPR instructions that are appropriate for an infant or child.
