Zeiss OPMI 1 Surgical Microscope


SKU: ZOM-101 Category: Tags: ,

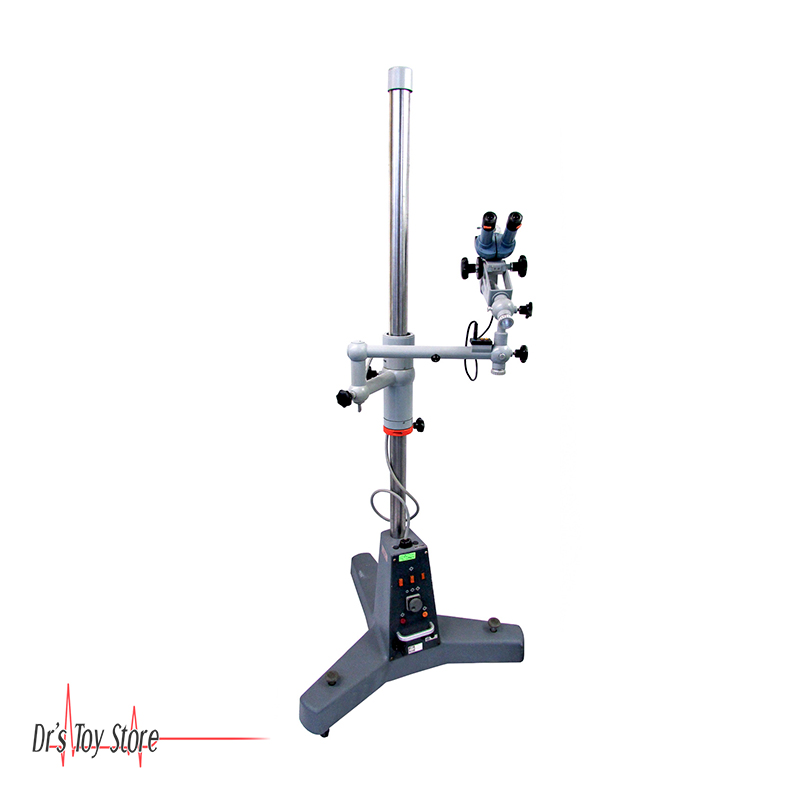

Zeiss OPMI 1 Surgical Microscope

Introducing the Zeiss OPMI 1 Surgical Microscope for sale. It is designed for flawless product operation, the quick-action lamp changer allows users to switch to the spare lamp at the push of a button. Brightness adjustments are located within the surgeon’s reach for ease of adjustment. After completing the procedure, the illumination automatically shuts off when the suspension arm is moved in its upper park position.

Zeiss OPMI 1 Surgical Microscope Features

  • Sharp Optical View
  • Terrific Depth of Focus
  • Compact Microscope Body
  • 5-Step Magnification
  • Fine Focus Adjustment
  • Inclined Coupling for Easy Maneuvering
  • Straight Binocular f=170 mm
  • 10X 22B Widefield Eyepieces
  • Fine Adjustment for Head Rotation
  • Interchangeable Objective Lens
  • Smooth Mechanics
  • Assistant Scope and Video Available
  • Zeiss S2 Floorstand
    • Stable, Movable Base
    • Long, Articulating Arm
    • Adjustable Spring Tension Control
    • Durable Friction & Locking Knobs
    • Locking Spindles
    • Internal Fiberoptic Cable
    • Smooth, Precise Arm Movement
    • Sturdy, Oversized Casters
    • Compatible with Various Optical Heads
    • Long Power Cord with Storage Brackets on Control Panel
    • Large Handles on Column for Portability
  • Fiberoptic Illuminator
    • Bright, White Illumination
    • Durable Lightsource
    • Strong, Coated Fiberoptic Cable
    • Varying Shutter for Illumination Levels
    • External Mount Provides Ease with Maintenance
    • 110V – 240V Electrical Input
Highly versatile, the product intelligently combines a simple design with solid operating quality and time-tested ZEISS technology. Whether used in combination with the S100 floor stand, ceiling mount or wall mount, Zeiss OPMI 1 Surgical Microscope seamlessly adapts to the operating room environment large or small.

Zeiss OPMI 1 Surgical Microscope Specifications

  • Microscope
    • Binocular: Straight ; f=170mm | Other options: 0-180 Degree ‘ f=170mm
    • Objective Lens: 250mm or your choice (200mm, 300mm, 350mm, 400mm)
    • Magnification: Manual 5-Step at 2.7x, 4.1x, 6.8x, 10.9x and 17x
    • Focus: Manual Fine Focus
    • Eyepieces: 10x 22B (56 mm diameter) | 12.5x 18B (45 mm diameter)
    • Pupillary Distance: 55 mm – 75 mm
  • Illumination
    • Illuminated Field: 48mm
    • Power Source: 110 – 240V; 50-60Hz
  • Mounting System
    • Type: Universal S2
    • Horizontal Reach: Arm = 48″ ; End of Optics = 53″
    • Vertical Reach: 28″
    • Rotation Angle: 320
    • Shipping Weight: 300 lbs

Today, as in the past, quality and precision represent timeless values in medicine. That is why surgeons around the world rely on the optics and innovative technologies from ZEISS for routine examinations and surgical procedures. ENT specialists have trusted the time-tested ZEISS OPMI surgical microscope for over 50 years. By helping to define the field of microsurgery and aiding the development of new surgical techniques, the Zeiss OPMI 1 Surgical Microscope continues to add to its legacy.
