Seiler SSI-202/402 Precision Microscope


SKU: SPM-202 Category: Tag:

Seiler SSI-202/402 Precision Microscope

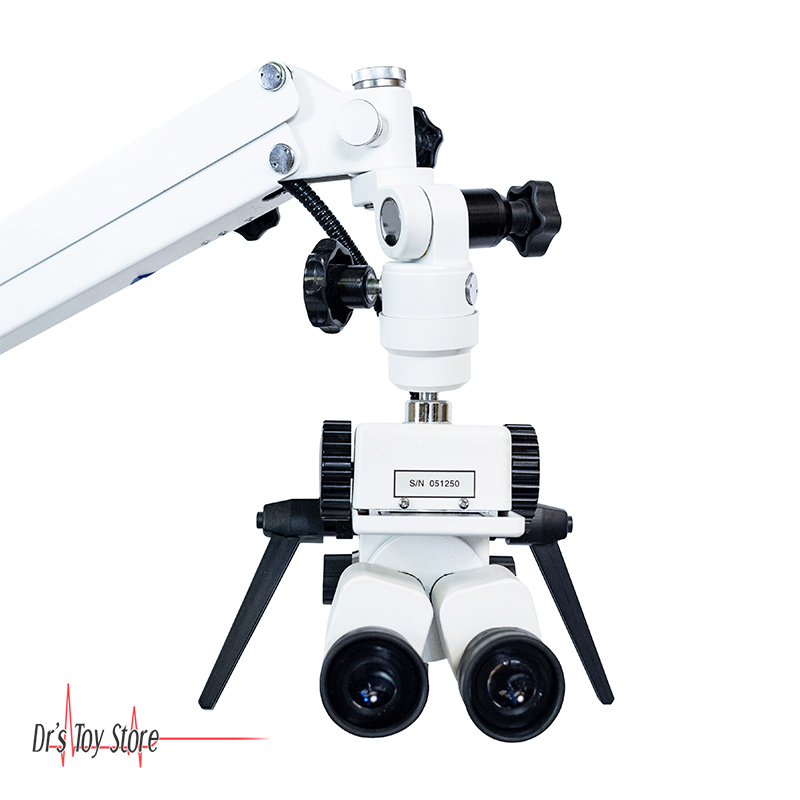

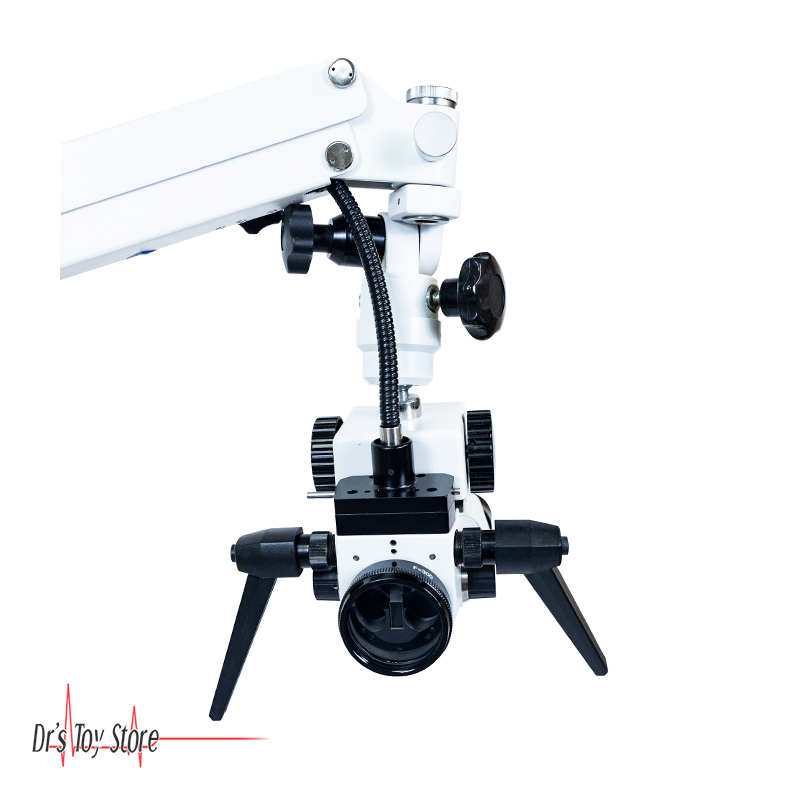

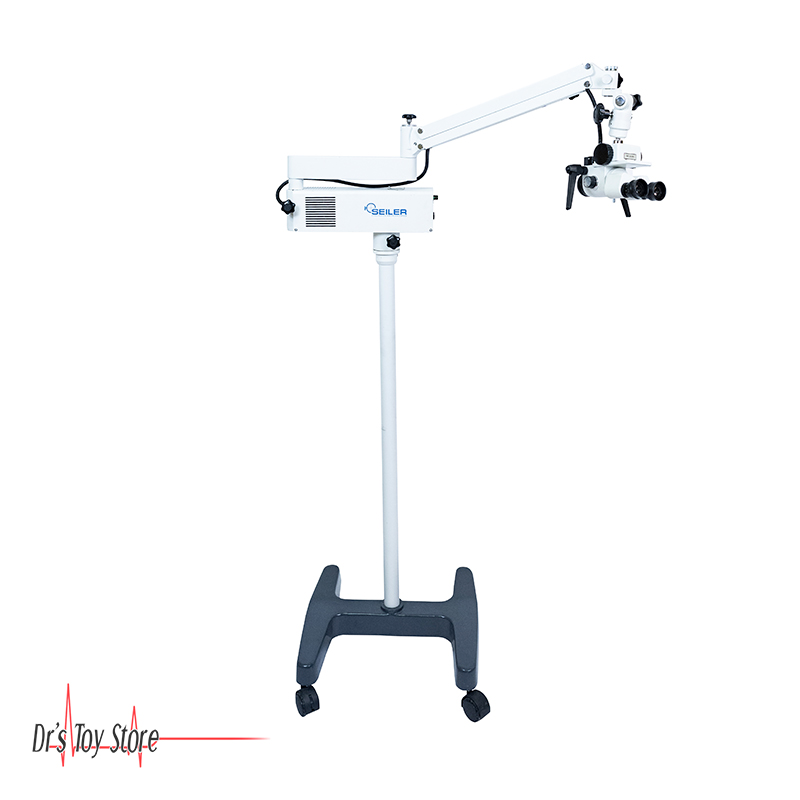

The Seiler SSI-202/402 Precision Microscope is a portable microscope. Its small and portable machine body makes it highly agile. The microscope is a single binocular one, with three magnification steps, offering sharp image and large field of vision. A cold light source is used in the illumination system, which is harmless to the tissue of the eye. With quality halogen bulbs, PHILIPS and OSRAM, being used, the illumination is bright and even. An intensifying red-reflex module is added. A spring balance system is designed for the arm so that the microscope can move upwards and downwards stopping at any desired position. The adjusting functions of the equipment include magnification, focusing and inclination, while focusing can also be controlled by the foot switch.

ATTENTION: Every time before adjusting the balance adjustment knob, the second arm should be pushed to the utmost peak in order to decrease the resistance against the rotation adjustment of the balance adjustment knob.

Seiler SSI-202/402 Precision Microscope Features

  • 12.5x Eyepiece
  • 250 mm Objective Lens
  • Straight Binocular Head
  • Counterbalanced Pantographic Arm
  • Halogen Illumination System
  • 3 Levels of Magnification

Seiler SSI-202/402 Precision Microscope Specifications

  • Focus length of objective: f=250 mm
  • Eyepieces 12.5 x /16B
  • Total Magnification: 5x, 8x, 13x
  • Visual field: 47 mm, 32 mm, 21 mm
  • Illumination Field: 50 mm
  • Working Distance: 240 mm
  • Inclined binocular tubes: 45°
  • Diopter adjustment range: ±6D
  • Pupil distance range: 50 mm – 70 mm
  • Height of Eyecups: 18 mm
  • 6° + 0° Coaxial illumination maximum intensity: 3000 Lux or up
  • Maximum stretching radius of arm: 1250 mm
  • Vertical movement range: 700 mm – 1100 mm
  • Input: 110 VAC | 50 Hz
  • Fuse: T type AC125V 4A
  • Bulb: 150W Halogen
  • Safety: IEC601-1, Type 1 Class B
