Siemens Acuson Cypress CV Ultrasound System with Transducers


SKU: SAC-105 Category: Tags: , , ,

SIEMENS Acuson Cypress CV Ultrasound System with 2 Transducers – 7L3 and 3V2c

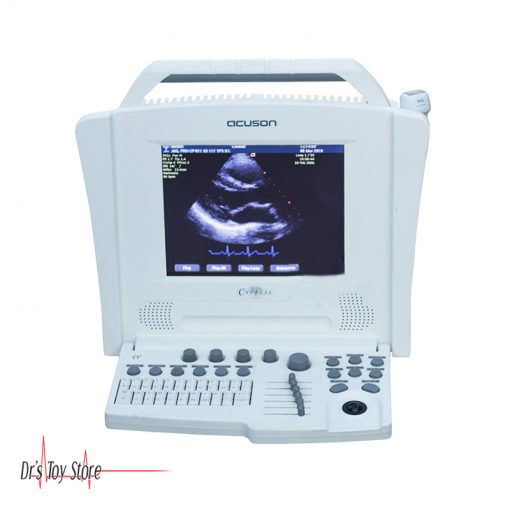

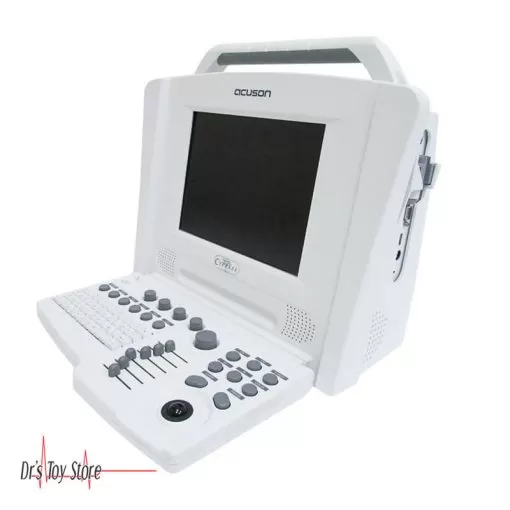

Introducing the Siemens Acuson Cypress CV Ultrasound System.

The ACUSON Cypress™ cardiovascular system PLUS delivers advanced ergonomic design and premium cardiovascular performance in a fully digital, portable, hand-carried unit. The Cypress system
features comprehensive echocardiography and vascular applications, and is designed to work in all of your busy clinical environments – from small private office or hospital echo lab to the patient bedside, emergency room, operating suite, and critical care unit.

Siemens Acuson Cypress CV Ultrasound Applications

  • Adult and pediatric transthoracic echocardiography (TTE)
  • Multiplane transesophageal echocardiography (TEE)
  • Intracardiac echocardiography (ICE) with ACUSON AcuNav™ ultrasound catheters
  • Peripheral vascular
  • Abdominal vascular
  • Comprehensive measurements and calculations as well as report and analysis packages, including integrated stress echo

Native Tissue Harmonic portable Imaging , Color Doppler, PW, CW, B-Color, M-Mode, ECG unit. It weighs 18 pounds. Manufactured by Siemens. Used for Cardiology (2DEcho),  vascular ( upper/lower extremities Doppler arterial,venous and carotid). Network ready.

Siemens Acuson Cypress CV Ultrasound Features

  • Cardiac / Vascular
  • Lightweight
  • Portable
  • Harmonic Imaging
  • High frame rate color flow mapping
  • Digital image management
  • DICOM capability
  • Phased array capability
  • Color doppler, Color angio and B-color
  • M-mode
  • 128 channel digital beamformer
  • PW/CW Doppler
  • AEGIS integrated stress echo

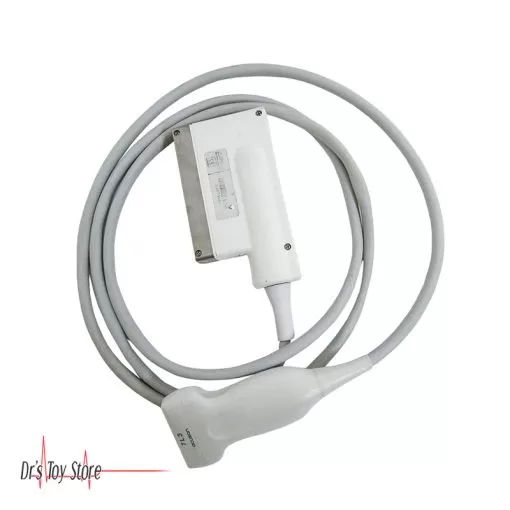

7L3 Transducer Details

6.6 – 5.4 MHz Linear Transducer for Vascular Imaging

  • B-Mode Frequencies 5.4 – 6.6 MHz
  • Doppler Frequency 4.3 MHz
  • Number of Elements 128
  • Lens Dimensions 44 mm x 9 mm
  • Field of View 99 mm
  • Array Length 38.4 mm
  • Wide bandwidth linear transducer
  • High performance vascular capabilities
  • High detail dynamic range and contrast resolution
  • User selectable 2D frequencies: 5.4 MHz and 6.6 MHz
  • 2D beam steering
  • Low flow detection
  • Excellent ergonomics and flexible cable
  • Single probe solution
  • 2D, Color (velocity and energy), PW

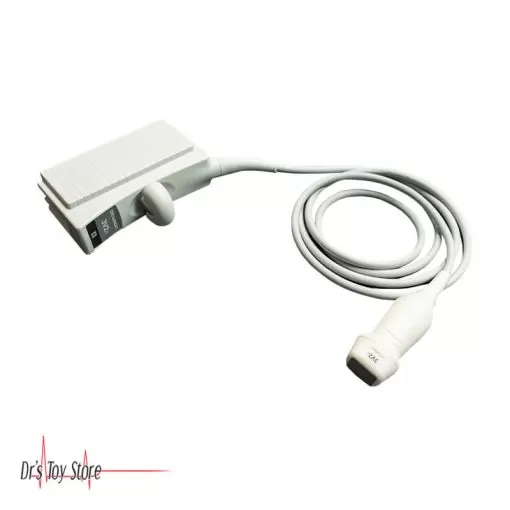

3V2c Transducer Details

3.6 – 1.8 MHz Vector Transducer for Adult Cardiac

  • B-Mode Frequencies 1.8 – 3.6 MHz harm., 2.7 MHz fund.
  • Doppler Frequencies 2.1 – 2.7 MHz
  • Number of Elements 64
  • Lens Dimensions 24 mm x 18 mm
  • Field of View 271 mm
  • Array Length 16.6 mm
  • Wideband phased array transducer with a Cypress system type connector
  • 2 – 4 MHz frequency range
  • High detail, contrast and temporal resolution
  • High sensitivity in color and spectral Doppler velocity modes
  • High frame rates in 2D and Color Doppler velocity mode
  • Superior ergonomics for comfort and access
  • 2D, Harmonics, Color (velocity and energy), PW, CW, M-Mode
