SIUI CTS-485 Ultrasound Machine

Original price was: $3,495.00.Current price is: $3,200.00.

SKU: SIU-485 Category: Tag:

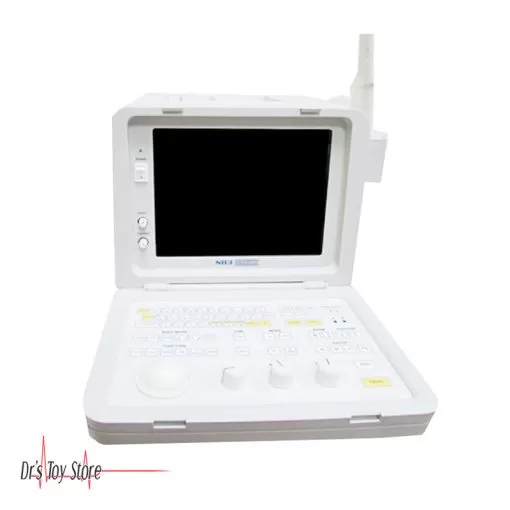

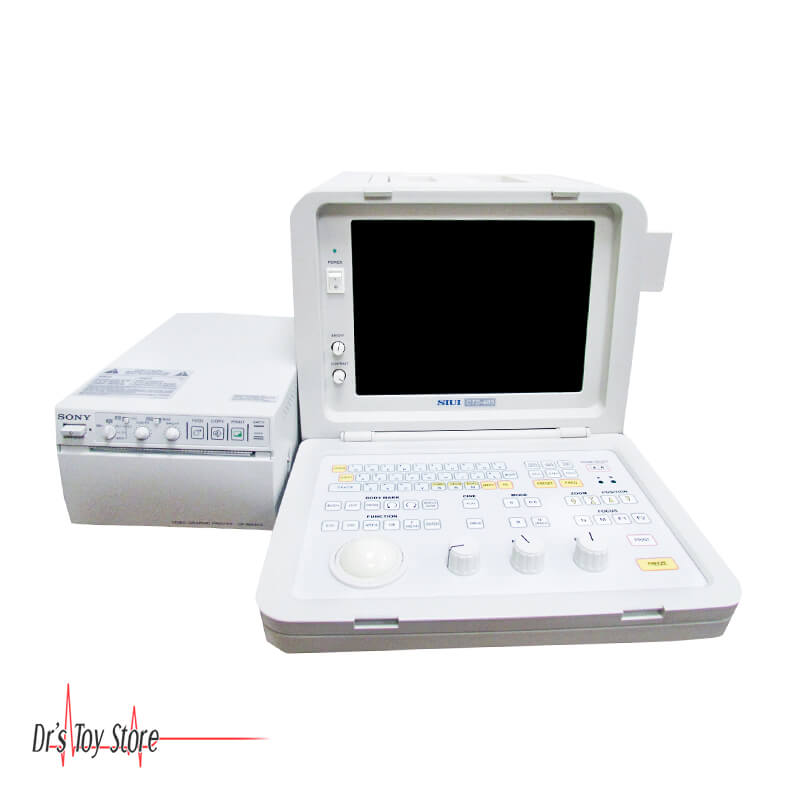

SIUI CTS-485 Ultrasound Machine

The SIUI CTS-485 Ultrasound Machine is a portable ultrasound system that is easy to use and easy to transport. This model features a 10-inch high resolution monitor and a foldable keyboard that is backlit so that you can use it dark conditions as well.

The portable SIUI CTS-485 Ultrasound system is an advanced, broadband marvel of clarity and quality. With its powerful features, such as 256 grayscale, 64-frame cineloop, internal image storage, computer interface, and broadband high-density, multi-frequency probes, backlit keyboard and enhanced-resolution monitor, the system is designed for professional applications in cardiology, abdominal, small parts, liver, gallbladder, kidney, obstetrics, gynecology, peripheral vascular, etc.

SIUI CTS-485 Ultrasound Equipment Features

  • Frequency conversion option
  • High-density probes for selection
  • Cineloop 32-frame non-volatile storage capacity
  • Computer image communication
  • Various measuring function
  • Foldaway backlit keyboard
  • 10-inch high-resolution monitor

SIUI’s newly developed CTS-485 is a portable ultrasound system with advanced technology. With its powerful features, such as 256 grayscale, cineloop, RS232C interface and broadband high-density, multi-frequency probes, the system is designed for professional applications in cardiology, abdominal, small parts, liver, gallbladder, kidney, obstetrics, gynecology, peripheral vascular, etc.

SIUI CTS-485 Ultrasound Machine Applications

  • Cardiology – C3H20 and C5H11 Probes
  • OB/GYN – C3I40, L7I50, V5H11 and C3I60 Probes
  • Urology – U7I50 Probe
  • Veterinary – L7I50 and C5I20 Probes
  • Pediatrics – C5I20 and C5H11 Probes
  • Abdominal
  • Small Parts
  • Gallbladder
  • Obstetrics
  • Gynecology
  • Peripheral Vascular

SIUI CTS-485 Ultrasound Equipment Specifications

  • Scanning System: Linear and convex
  • Scanning Mode: B, B/M, B/M, M
  • Probe Frequency: 2.5 – 10 MHz broadband tri-frequency probes
  • Focusing Method: Variable aperture, 1-4 stage focus, dynamic aperture and lens preprocessing focusing
  • Image Magnification: x1, x1.2, x1.5, x2, four steps as well as depth shift
  • Image Processing: Frame correlation, grayscale selection, edge enhance, interpolation
  • Cineloop: 64 frames for B mode, 256 seconds for M mode. Also has internal non-volatile image storage
  • Scanning Range: Up to 130 degrees
  • Gray Scale: 256 shades
  • Image and Data Transmit: Via RS-232 to PC, image and data can be saved as BMP or TIF format, or ask about our advanced computer connectivity package
  • Measurement Functions: Distance, area, volume, angle, time, velocity, OB/GYN, cardiology
  • Body Marks: 25 types with probe mark display
  • Character Display: Date, time, frequency, gain, zoom, focus
  • Electrical Info: 110 – 220 VAC | 80 W
