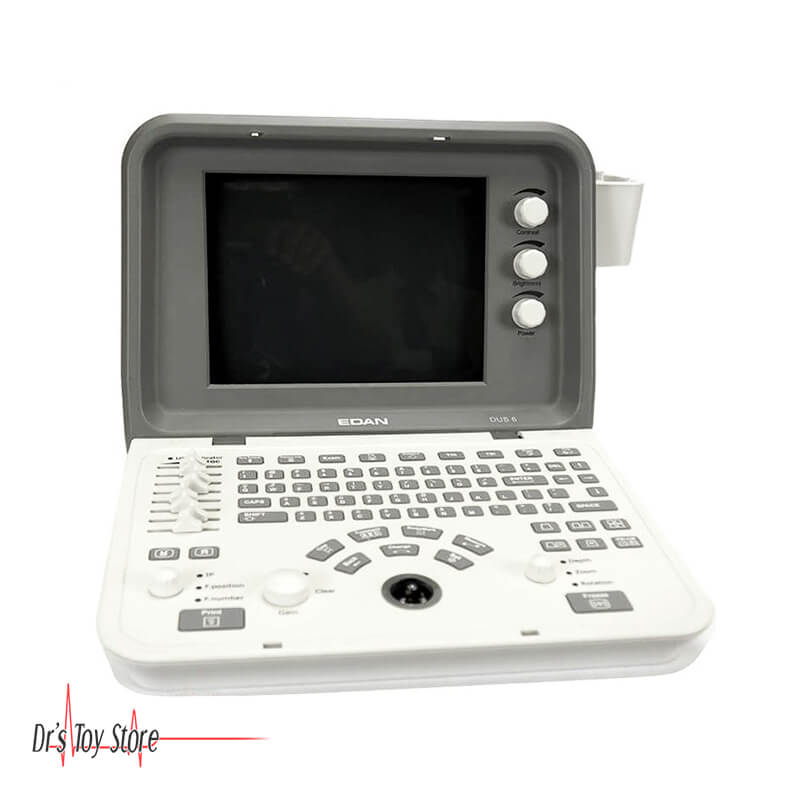

EDAN DUS 6 Digital Ultrasonic Diagnostic Imaging System

EDAN DUS 6 Digital Ultrasonic Diagnostic with advanced digital beam-forming (DBF) technology, EDAN focuses on Ultrasound applications that will create new clinical value for you and your patients. Furthermore, DUS 6,the maximum 128 frames built-in image storage and standard configuration of two-transducer-connector bring along with more options and flexibility.

  • 10” high resolution non-interlace monitor

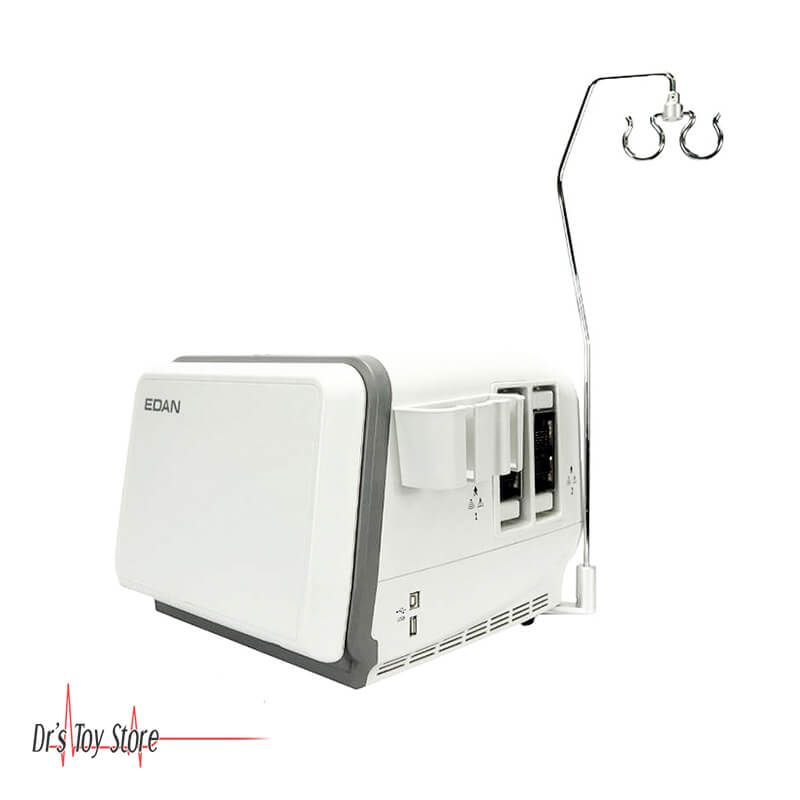

  • Two transducer connectors as standard
  • 96 elements high density transducer
  • 32 channels
  • 204-frame cine loop memory
  • 128-frame built-in image storage
  • Measurement & calculation software package
  • Two USB ports
  • DICOM 3.0 (optional)
    *Cart is optional Includes 3 year manufacturer warranty

As most diagnostic methods, ultrasound diagnostics faces certain challenges, such as the difficulties in penetrating thick layers of biological tissue which leads to the increased noise, low contrast and focus. However, with the years of experience and implementation of innovative technologies Edan successfully addresses those challenges and presents DUS 6. The system implements Dynamic Receiving Focusing and Frequency Scanning which provide a better ultrasound penetration and therefore improve image uniformity. Noise and clutter reduction is achieved with the help of Tissue Harmonic Imaging function. In addition to the above, DUS 6 uses Real-Time Dynamic Aperture technology to provide a superb detail and contrast resolution that ensure a dependable high quality imaging at any point-of-care scene. The Multi-beam technology exerts high frame-rates that also contribute to an acquisition of a sharp image.

Optional Transducers:

  • Convex array transducer C363-1   (2.0/3.0/4.0/5.0/6.0MHz, 96 elements)
  • Scanning Angle: 60°
  • Convex array transducer C343-1   (2.0/3.0/4.0/5.0/6.0MHz, 96 elements)
  • Scanning Angle: 90°
  • Convex array transducer C362   (2.0/3.0/4.0/5.0/6.0MHz, 128 elements)
  • Scanning Angle: 60°
  • Linear array transducer L743   (6.0/7.0/8.0/9.0/10.0MHz, 96 elements)
  • Scanning Length: 40mm
  • Transvaginal transducer E613   (4.5/5.5/6.5/7.5/8.5MHz, 96 elements)
  • Scanning Angle: 155°
  • Micro-convex array transducer C321   (2.0/3.0/4.0/5.0/6.0MHz, 80 elements)
  • Scanning Angle: 90°
  • Edan Endorectal transducer E743   (6.0/7.0/8.0/9.0/10.0MHz, 96 elements)
  • Scanning Length: 40mm
