Esaote MyLab FIVE Ultrasound Machine

SKU: MUM-699 Category: Tags: ,

Esaote MyLab FIVE Ultrasound Machine

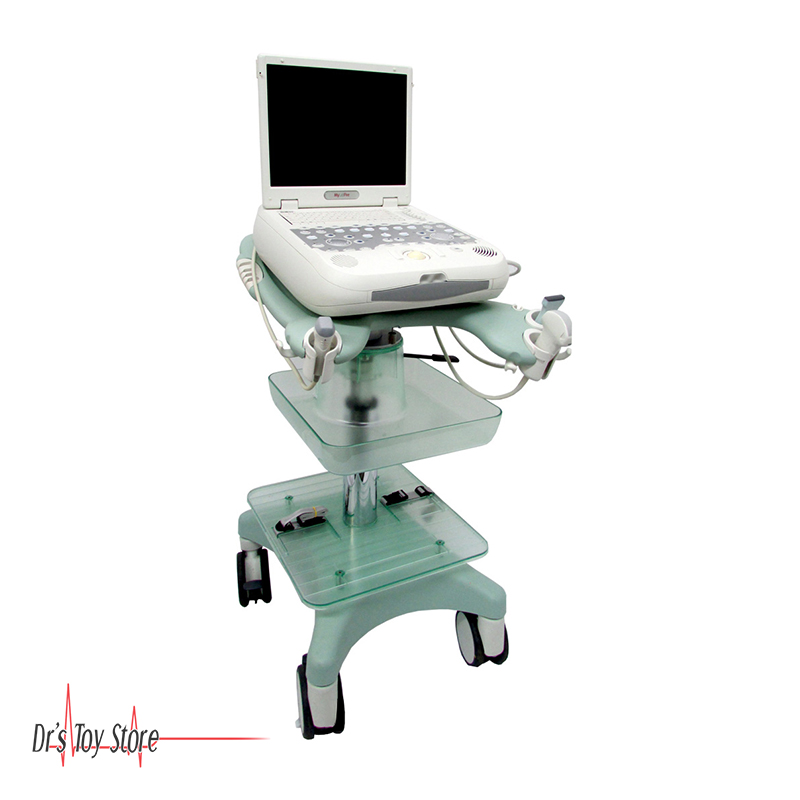

The Esaote MyLab FIVE Ultrasound Machine is an optimal solution for a department where size, cost and value is of the essence. Developed on the acclaimed MyLab® platform, it offers multiple applications and a wide range of transducers common to the MyLab family. The system has a 15” high resolution LCD that produces unmatched image quality while increasing user comfort and reducing eyestrain. The built-in carry handle and optional battery power make it even more attractive as a portable solution. The MyLab®Five can be hand carried, or mounted on a foldaway or a height-adjustable cart.

The system offers a modular platform and flexible system configuration and uses multi-frequency convex, linear, phased array probes that feature extended bandwidth and high frequency imaging.

Esaote MyLab FIVE Ultrasound Machine Features

  • TEI™ – Tissue Enhancement Imaging
  • Tp-View for enlarged field of view with linear array transducers
  • Auto-optimization of image
  • Complete, detailed measurement and report packages
  • Windows network ready
  • Native, PC graphics image output
  • MyLab™Desk advanced software package for image management
  • XView – eXtreme View with real-time adaptive algorithm (optional)
  • M-View – combined standard and steered ultrasound imaging (optional)
  • CnTI™ – Contrast Tuned Imaging for contrast media procedures (optional)
  • QIMT – Quality Intima Media Thickness for early detection of cardio-vascular diseases (optional)
  • CMM – Compass M-Mode (real-time, anatomically corrected m-mode) (optional)
  • TVM – Tissue Velocity Mapping for LV motion analysis (optional)
  • Integrated stress echo (optional)
  • XStrain™ – Strain-Strain Rate top analysis technique for myocardial function evaluation (off-line only – optional)
  • FWI – Fetal Weight Index for OB/GYN (optional)
  • Integrated lightweight battery (optional)
  • DICOM – optional

Esaote MyLab FIVE Ultrasound Machine Applications

  • Radiology
  • Anesthesia
  • Cardiology
  • Musculoskeletal
  • Women’s Healthcare

Optional Transducers / Probes

  • LA332: 11-3 MHz Wide Linear Transducer
  • LA435: 13-4 MHz Linear Transducer
  • LA523: 13-4 MHz Linear Transducer
  • CA430: 8-1 MHz Curved Transducer
  • CA123: 9-3 MHz Micro-convex Transducer
  • EC1123: 9-5 MHz Endocavity Transducer
  • TT33: Bi-plane Transducer
  • PA230: 4-1 MHz Phased Array Transducer
  • PA122: 6-2 MHz Phased Array Transducer
  • PA121: 6-2 MHz Phased Array Transducer
  • PO023: 11-4 MHz Phased Array Transducer
  • IOE323: 13-44-1 MHz Intraoperative Transducer
  • LP323: 13-4 MHz Laparoscopic Linear
  • TEE132: 8-3 MHz Pediatrics TEE Phased Array
  • TEE022: 8-3 MHz Adult TEE Phased Array
  • 2 MHz CW: Pencil Probe
  • 5 MHz CW: Pencil Probe


The MyLab Five is the perfect combination of quality, portability and value for your practice.
