Leica M691 Surgical Microscope – Wild


SKU: LMM-691 Category: Tag:

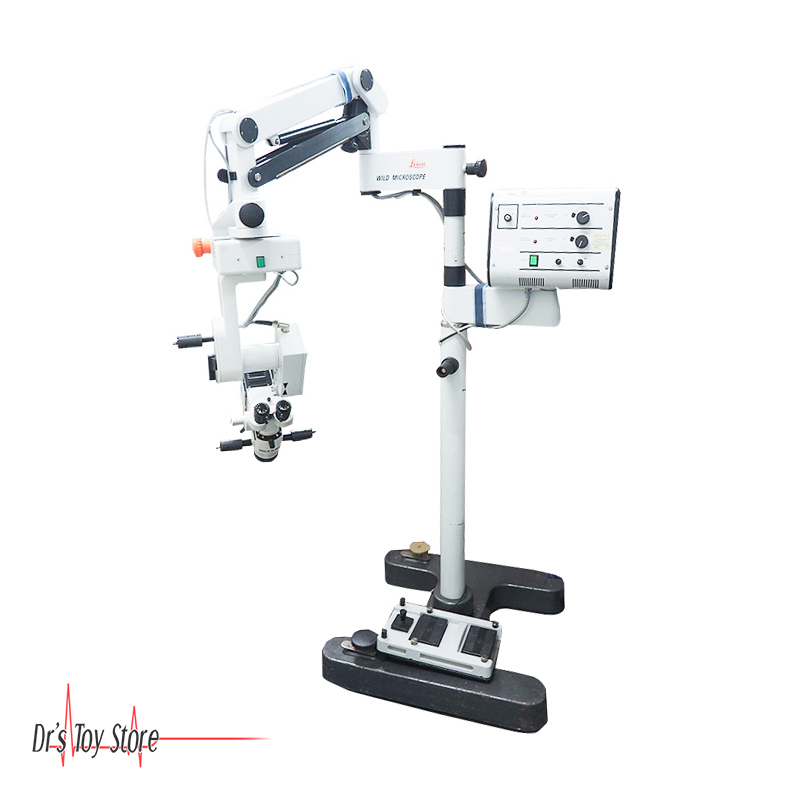

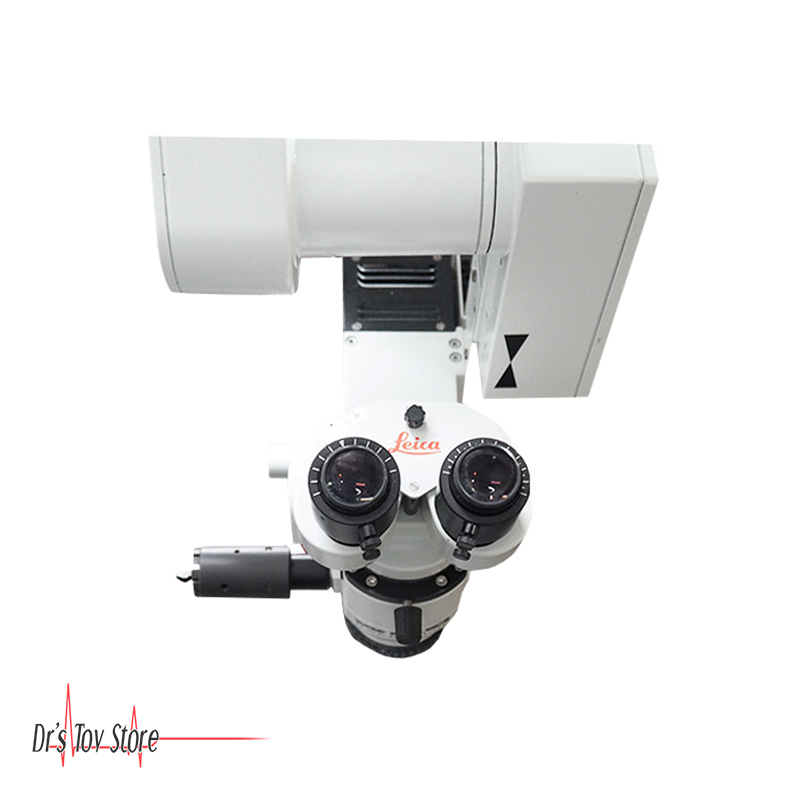

Leica M691 Surgical Microscope

The Leica M691 Surgical Microscope is intended to use for neurological and back surgery. This Leica microscope is great for those facilities that need a great multi-purpose option. The M691 includes all of the superb optical clarity and red-reflex necessary for eye surgery as well as the cross table accessories for hand surgery.

Leica M691 Surgical Microscope Features

  • X/Y Control with auto center
  • Inclinable 0-180° binocular
  • Eyepieces zoom 10x/21
  • Motorized focus/zoom
  • Complete video system
  • Twelve function foot control
  • Halogen illumination
  • Sterilizable knob covers
  • 200mm objective lens
  • Oculas SDI 4e  Invert-er
  • Laser 532 filter
  • Oculas BIOM 3m, 5m
  • Assistant binoculars
  • Beam splitter
  • 200mm Wild red reflex lens
  • Microscope electrically controlled via footswitch
  • Electrically adjustable magnification (zoom) and focus (focus)
  • Total magnification: continuously adjustable from 7x to 36x
  • High-end optics with high depth of field!
  • Main arm and manually adjustable spring
  • Focal Length: f = 250 mm (lens can be exchanged for another with a different focal length)
  • Binocular doctor fixed angle of 45 degrees
  • Halogen Lighting: 50 W
  • The dual brake disposed in the base of the microscope

Leica M691 Surgical Microscope Specifications

  • Binocular: 0-180 Inclinable; f=170mm
  • Other options: 10-50 degree; f=170mm
  • Objective Lens: 175mm, 200mm with red reflex enhancer
  • Magnification: Motorized 1:5
  • Focus: Motorized with 50 mm travel
  • Eyepieces: 10 x 21 Widefield
  • Pupillary Distance: 55 to 75 mm
  • Filter: Standard UV
  • Lightsource: Halogen 12V 50W
  • Illuminated Field: 65mm
  • Power Source: 110 to 240V; 50 – 60 Hz

About Leica Microsystems

Leica Microsystems develops and manufactures microscopes and scientific instruments for the analysis of microstructures and nanostructures. Widely recognized for optical precision and innovative technology, the company is one of the market leaders in compound and stereo microscopy, digital microscopy, confocal laser scanning and super-resolution microscopy with related imaging systems, electron microscopy sample preparation, and surgical microscopy.

Leica Microsystems has a rich heritage in several prestigious brand names with a long tradition, including Leitz, Wild, Cambridge Instruments, Reichert-Jung and American Optical. Many of the older instruments are still in use in labs all over the world.
