Seiler 955 Colposcope LED

Introducing the Seiler 955 Colposcope for sale. The Seiler 955 Colposcope LED is Seiler’s Premier Over the Shoulder model. The mount is set up higher to remove any obstructions from the user’s field. The 985 is equipped with a 5 step magnification turret, 300 mm working distance and standard LED Illumination.

Seiler 955 Colposcope Features

  • Smooth, 5-Step Turret Magnification Changer
  • 300 mm Working Distance Objective Lens (200-400 mm Available)
  • Widefield 12.5x Eyepieces with Diopter Locks
  • Straight Binocular Head (Optional: Fixed Inclined or Inclinable)
  • LED Illumination System
  • Maximum height from floor to objective lens – 54′ (Minimum – 32′)
  • Green Filter
  • Spare Lamp, Dust Cover and Instruction Manual Included
  • Lifetime Warranty on Optics and Mechanics

Package Includes Seiler 955 Colposcope, Beam Splitter and Camera Adapter. (*Package does not include a camera)

Seiler 955 Colposcope Specifications

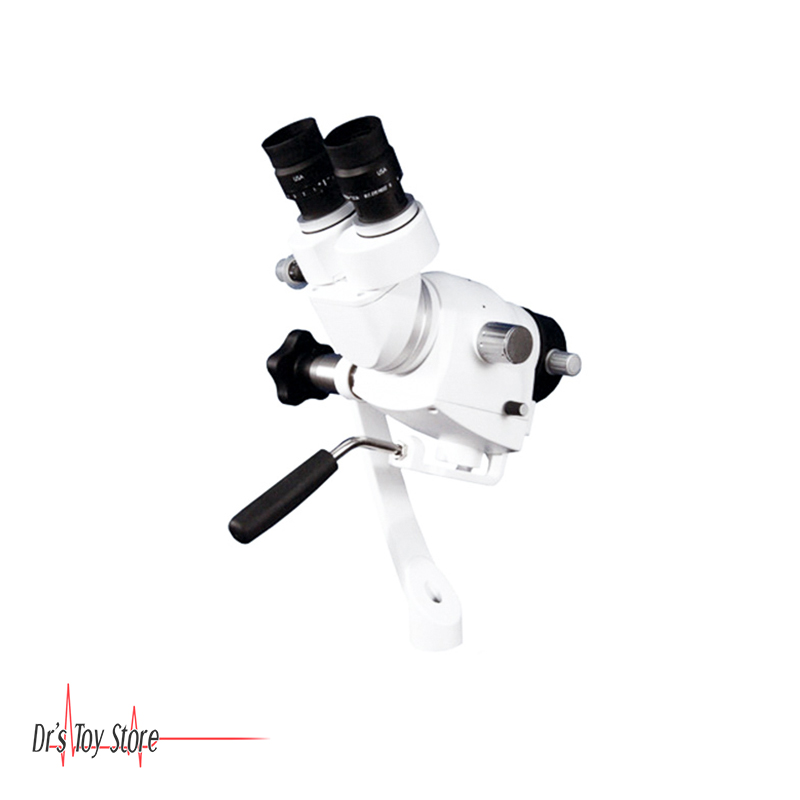

Colposcope Head

  • Microscope: Galilean System
  • Binoculars: f= 170 mm (optional: Inclined, f=135 mm)
  • Objective (focus): 300 mm (optional: 200 – 400 mm)
  • Eyepieces: Wide angle type 12,5x, adjustable (-6 to +6 dioptries)
  • Interpupillary distance: Adjustable between 42 mm and 75 mm
  • Illumination System: Source LED
  • Filter: Green
  • Macro Focusing: Moving the pantographic arm
  • Micro Focusing: Manual, with rack and pinion
  • Total weight of the head: 6.6 lbs

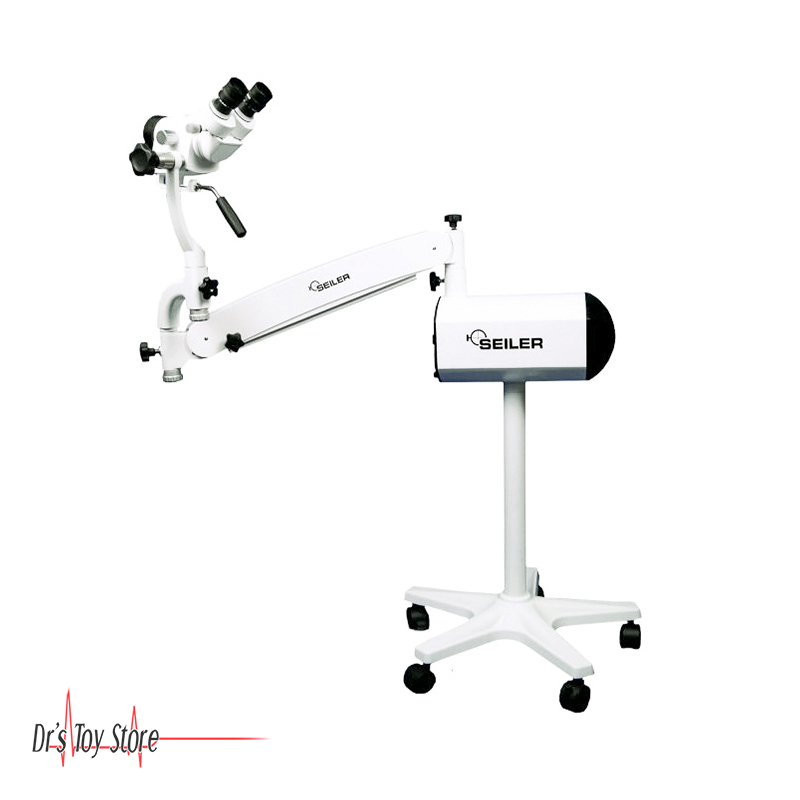

Colposcope Stand

  • Horizontal reach: 725 mm – first arm 600 mm, second arm 110 mm
  • Angular rotation (arms): 340º
  • Distance between the floor and the objective: 635 mm to 1295 mm
  • Load adjustment: 9 to 15 lbs
  • Base: Base with five casters, two with brakes
  • Total floor stand set weight: 75 lbs

Seiler Instrument is a contract manufacturing company specializing in high precision machining and optical instrument assembly. In addition, Seiler is a distributor of surveying software and instruments, microscopes, and ZEISS Planetarium equipment. The Seiler foundation is made up of several main divisions including Manufacturing, Geospatial, Medical, and Planetarium. Seiler’s corporate headquarters is located in St. Louis, Missouri, with additional Geospatial sales offices in Indianapolis, Kansas City, Milwaukee, Omaha, and Chicago.
