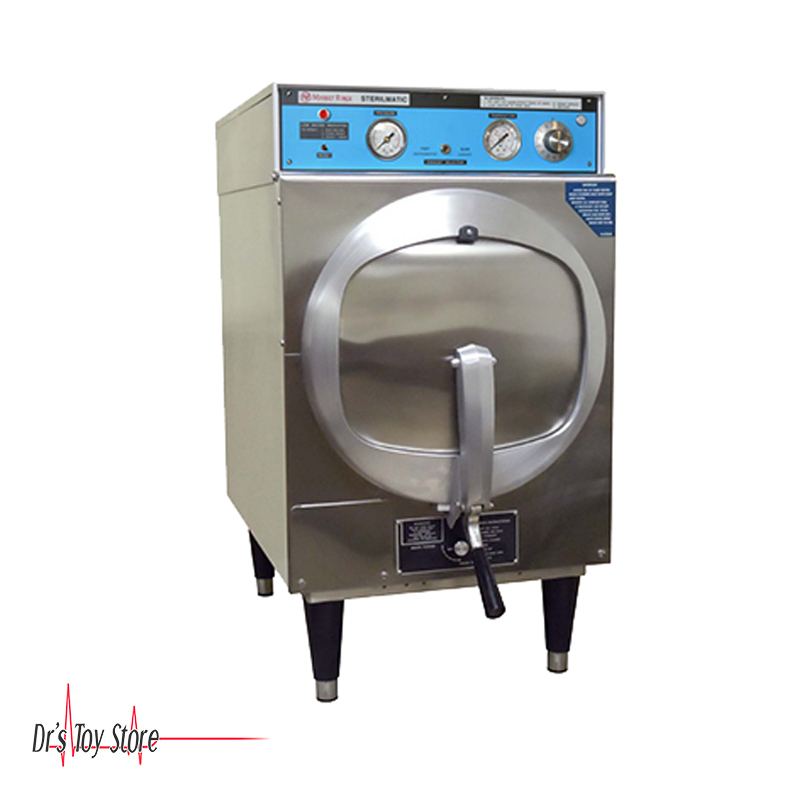

Market Forge Sterilmatic STM-E Electric Sterilizer
Market Forge Sterilmatic STM-E Electric Sterilizer is what many medical practices and facilities crave: a compact sterilizer that does a large sterilizer’s job.
The Market Forge Sterilmatic STM-E Electric Sterilizer is dependable, inexpensive and ideally suited for laboratories, veterinary clinics, processing plants and much more.
This Analog sterilizer has about five times the capacity of a smaller tabletop autoclave.
Sterilization cycles shall be automatically controlled, requiring only the setting of 0-60 minute timer and the insertion of 5 quarts (4.7 liters) of water into the cylinder. At the end of the cooking cycle, steam is evacuated from the cooking compartment and a continuous audible signal sounds.
The Sterilmatic STM-E Electric Sterilizer model includes a safety valve, a steam pressure gauge, an exhaust valve silencer, a low water cut-off, a rinse and fill hose and drain connection, and is completely serviceable from the front end.
Market Forge Sterilmatic STM-E Electric Sterilizer Features
- Automatic temperature control
- Thermometer 180°-300°F (82°-149°C)
- Safety valve
- 0-30 lb. steam gauge
- 0-60 minute timer
- Low water cut-off
- Thermostatic steam trap
- Signal light
- Flat perforated steam baffle
- Removable pan supports
- Adjustable 4” to 6” bullet feet
- Manual Fill
The sterilizer door will be self-sealing type which cannot be opened until steam pressure is completely exhausted. Door will be 12 gauge stainless steel, removable for cleaning without tools. Door gasket will be one-piece molded, replaceable without tools or cement.
Sterilizing cycle will be fully automatic, time-controlled and have a built-in temperature control which provides 250°F (121°C). All operating controls will be located at the top, front of the Sterilizer. Pressure will be automatically and quickly exhausted and power supply shut off at termination of cycle. Slow exhaust may be selected for sterilizing liquids.
Sterilizing cylinder will be A.S.M.E. constructed and National Board Registered 3/16” (4.8mm) thick welded aluminum.. Sterilizer exterior is made of polished stainless steel. Interior dimensions of 16” (406mm) in diameter and 26” (660mm) long with a cubic content of 5,220 cubic inches (85 liters) and will have a door opening of 13-1/2” (343mm) wide and 11” (279mm) high. Sterilizing compartment will have a pan capacity of:
- (3) 12” x 20” x 2-1/2” (305mm x 508mm x 64mm)
- (2) 12” x 20” x 4” (305mm x 508mm x 102mm)
- (1) 12” x 20” x 6” (305mm x 508mm x 152mm)
Market Forge Sterilmatic STM-E Electric Sterilizer Specifications
- Weight: 150 lbs
- Overall: 27 1/2″ H x 18 3/4 W x 31″ L
- Chamber: 16″ diameter x 26″ L
- Drain connection: 1/2” (13mm) N.P.T. of 3/8” (10mm) OD copper
- 208 V / 60 Hz / 1 Ph / 9300 W / 45 A
- 208 V / 60 Hz / 3 Ph / 9300 W / 26 A
