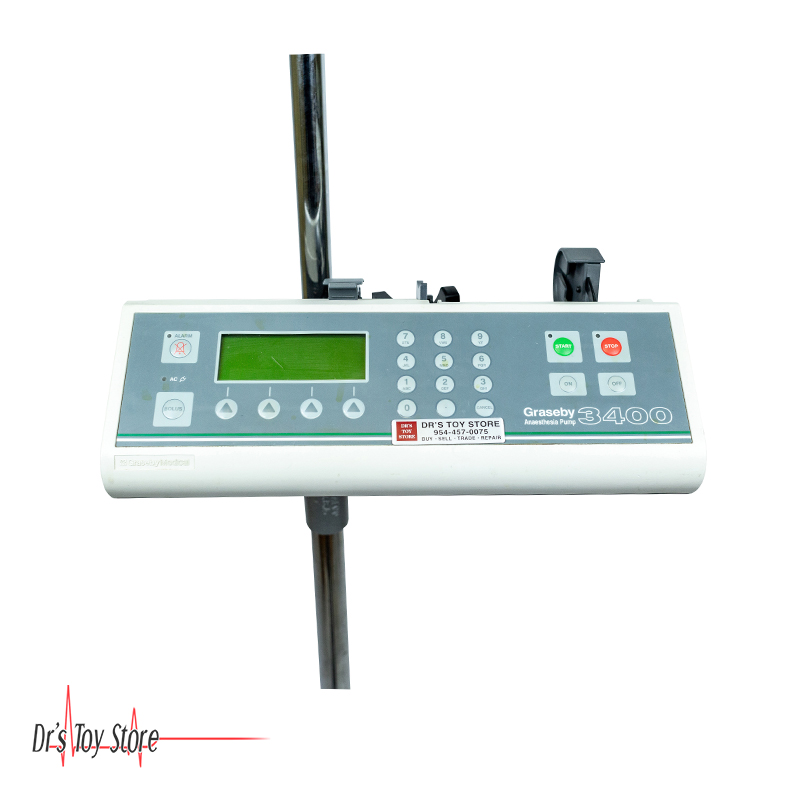

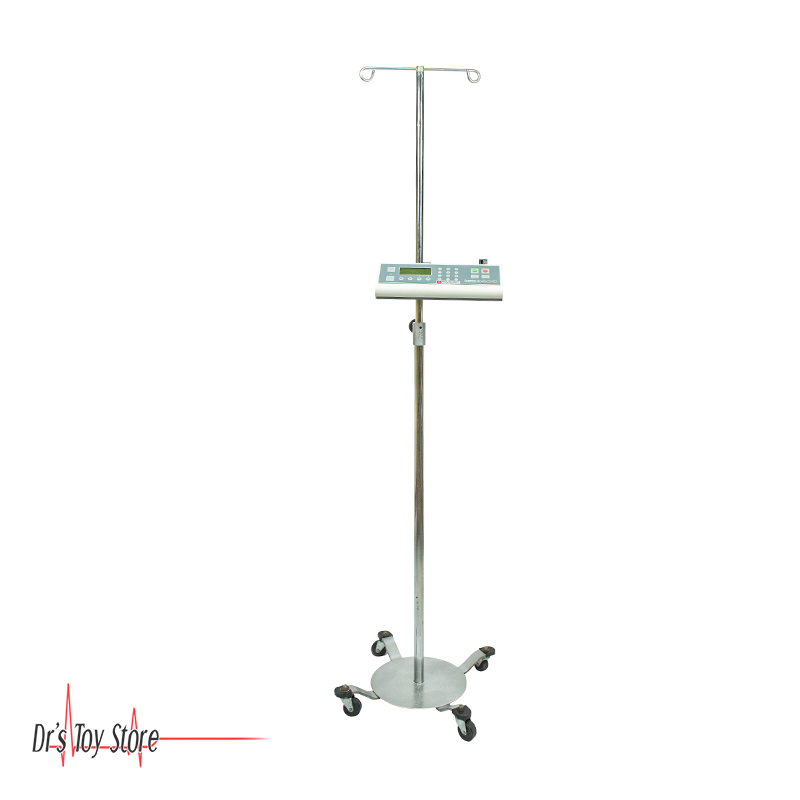

Graseby 3400 Syringe Pump with IV Pole


SKU: GSP-340 Category: Tags: , ,

Graseby 3400 Syringe Pump with IV Pole

The Graseby 3400 Syringe Pump is the premium syringe pump for pharmacological stress testing. This pump is capable of infusing nearly every IV drug within a range of 0.1-1200 ml/hr. It also has multiple unit selection, syringe size flexibility, and is AC or battery operated, having an accuracy of ±2%. Generally IV drugs infused with the 3400 are Adenosine, Dobutamine, Persantine, Zevalin, Cholecystokinan (Kinevac) and more.

The Graseby 3400 Syringe Pump eliminates the problem of voluminization and mixing of Adenosine and the chance of battery failure during IV procedures. It enables the user to titrate to virtually any delivery rate.
The Graseby Pump allows you to program a wide range of units with no calculations, thereby reducing your margin of error. In addition, this Syringe Pump is cost effective since it is not dedicated to any specific tubing set. No longer do you have to pay “top dollar” because you can only use a specific tubing set.

This syringe pump is based on a micro-controller design and has been purposely developed by Graseby for the administration of anaesthetics mainly in a hospital operating theatre.  The Graseby 3400 Syringe pump allows a manually controlled infusion and/or a blous to be infused using the normal brands of syringe. The infusion entails presetting into the pump both the required infusion rate and the dose of the drug that is going to be used.  The pump can be configured by a suitably qualified person to work with any one of several selected brands of syringe.  The particular brand of syringe selected will be displayed. The diameter of the syringe installed is automatically sensed by the pump and from this dimension knowing the syringe brand, the pump is able to calculate and display the following syringe sizes 5; 10; 20; 30; and 60 milliliters.  The Graseby 3400 Syringe pump is a compact robust unit that is able to function either sitting on a table top or mounted on an IV pole via the pump’s pole clamp.

Graseby 3400 Syringe Pump Specifications:

  • One pump for infusion of Adenosine, Dobutomine, Persantine, Zevalin, Bexxar and Kinevac
  • Wide infusion rate range: 0.1-1200 ml/hr
  • Multiple unit types: ml/hr, µg/hr, mg/hr, µg/kg/hr, mg/kg/hr, µg/kg/mn, mg/kg/mn
  • Syringe size options: 5ml, 10ml, 20ml, 30ml, 50/60ml
  • Menu driven display
  • AC or battery operated (internal rechargeable battery)
  • Cancels out voluminization and mixing of adenosine
  • Prevents possibilities of battery failure during IV procedures
  • Allows operate to titrate at almost any delivery rate
  • Enhances patient safety and accuracy
  • Mass units selection
  • IV mount or table top mountable
  • Bolus prevention after occlusion
