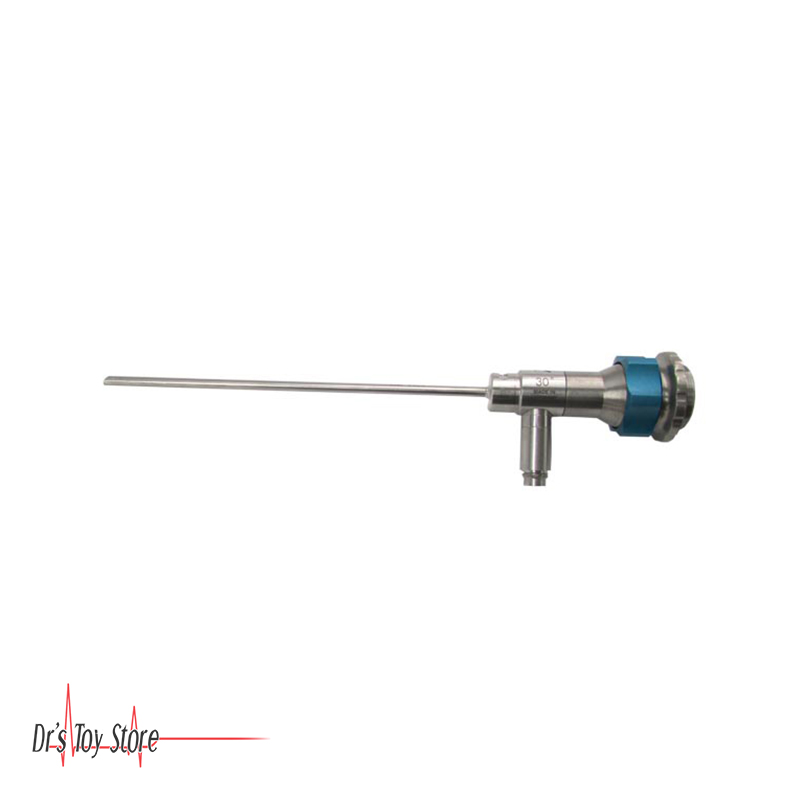

Dyonics 3626 Video Arthroscope 30-Degree 4 mm

CALL FOR PRICE

SKU: ADD-362 Category: Tag:

Dyonics 3626 Video Arthroscope 30-Degree 4 mm

Introducing the Dyonics 3626 Video Arthroscope for sale.

Dyonics 3626 Video Arthroscope Features

  • For Arthroscopy and examination/treatment of nasal cavities and nasal pharynx
  • Non-Autoclavable; Stainless steel construction to withstand chemical sterilization modalities
  • Wide angle of view and ergonomically designed to directly attach to the camera head for ease of use
  • Insertion needle is fully rotatable without the need to reposition the camera head
  • For use only with the Smith & Nephew ED3, 360, 460, HD900 and 111 camera heads; Not compatible with the 470 or 560 camera heads

Dyonics 3626 Video Arthroscope Specifications

  • Focus Ring: Blue
  • Focal Length: 35 mm
  • Outer Diameter: 4.0 mm
  • Direction Of View: 30°
  • Field Of View: 115°
  • Working Length: 160 mm
  • Light Post Direction: Opposite
  • Cannula Connection: J-Lock
  • Recommended Light Cable: 5.0 mm

About Arthroscopy

Arthroscopy is a surgical procedure orthopedic surgeons use to visualize, diagnose, and treat problems inside a joint. The word arthroscopy comes from two Greek words, “arthro” (joint) and “skopein” (to look). The term literally means “to look within the joint.”

In an arthroscopic examination, an orthopedic surgeon makes a small incision in the patient’s skin and then inserts pencil-sized instruments that contain a small lens and lighting system to magnify and illuminate the structures inside the joint. Light is transmitted through fiber optics to the end of the arthroscope that is inserted into the joint. By attaching the arthroscope to a miniature television camera, the surgeon is able to see the interior of the joint through this very small incision rather than a large incision needed for surgery.

Doctors use arthroscopy to help diagnose and treat a variety of joint conditions, most commonly those affecting the:

  • Knee
  • Shoulder
  • Elbow
  • Ankle
  • Hip
  • Wrist
