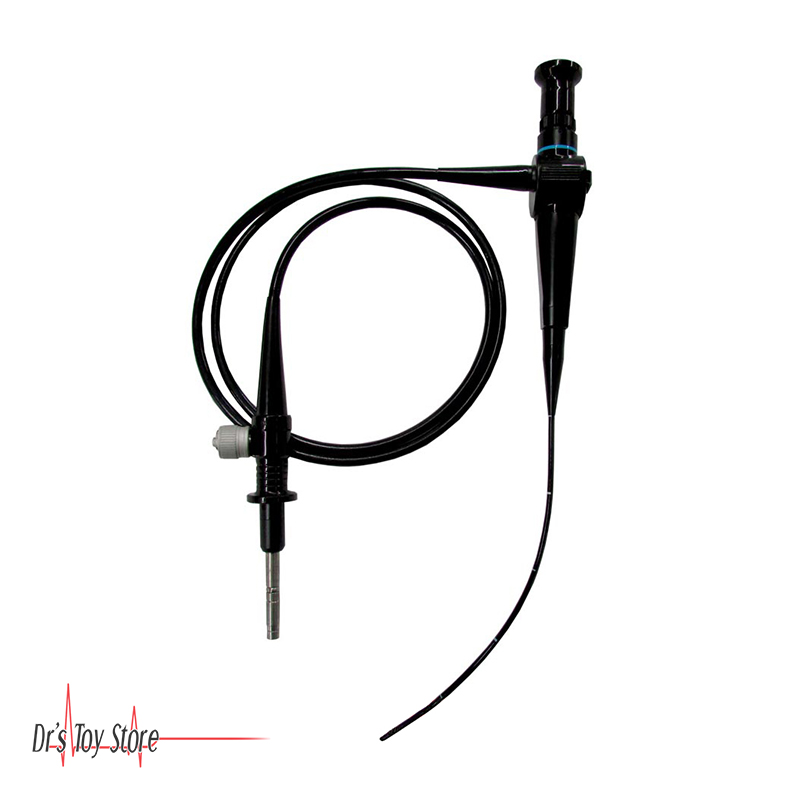

Olympus ENF-P2 Rhino-Laryngo Fiberscope


SKU: OPF-929 Category: Tag:

Olympus ENF-P2 Rhino-Laryngo Fiberscope

Introducing the Olympus ENF-P2 Rhino-Laryngo Fiberscope.

Olympus ENF-P2 Rhino-Laryngo Fiberscope Specifications

  • Optical System
    • Field of View: 85°
    • Depth of Field: 5 to 50 mm
  • Insertion Tube
    • Distal End Outer Diameter: 3.4 mm
    • Insertion Tube Outer Diameter: 3.6 mm
  • Bending Section
    • Angulation Range: Up 130° | Down 130°
  • Working Length: 300 mm
  • Total Length: 485 mm

What is a Fiberscope?

A fiberscope is a flexible instrument that is constructed of a coherent fiber optic image guide that is used to inspect remote areas. A fiberscope is inserted into the item without destroying or disassembling the item of interest.

A Fiberscope consists of the following:

  • Coherent fiber optic image guide
  • Fiber optic illumination guide
  • Relay lens (eyepiece) at one end and an objective lens at the other
  • Light Source to illuminate the target being inspected

A Fiberscope typically is available with the following specifications

  • Diameter: 0.35 to 10.0mm (.0138 to .393 in.)
  • Length: 15m (50 Ft.) maximum
  • Tip Articulation: 2 or 4 way tip articulation is available on diameters larger than 2.4mm (.094 in.)
  • Sheathing: tungsten, stainless steel, nylon, Teflon or polyimide

A fiberscope is typically used for remote visual inspection of the interior of areas that would otherwise not be visible. Fiberscopes are used to non destructively inspect industrial systems and equipment for condition, manufactured parts for quality and security and law enforcement for contraband, intelligence and safety.

Common Inspections Include internal viewing of:

  • Impellers
  • Surgical and medical components
  • Turbine blades
  • Internal Combustion Engines
  • Gearboxes
  • Welds
  • Cast Parts
  • Manufactured or machined parts
Image Fiber / Pixel Count / FOV (Degrees) Min. Bend Radius
1.6k= 1,600 pixel image bundle (55 FOV) 6 mm
3k= 3,000 pixel image bundle (55 FOV) 8 mm
6k= 6,000 pixel image bundle (65 FOV) 15 mm
6ku= 6,000 pixel image bundle (88 FOV) 10 mm
10k= 10,000 pixel image bundle (55 FOV) 20 mm
10ku= 10,000 pixel image bundle (70 FOV) 17 mm
17k= 17,000 pixel image bundle (70 FOV) 4-12 mm
30ku= 30,000 pixel image bundle (65 FOV) 4-12 mm
30k= 30,000 pixel image bundle (55 FOV) 4-15 mm
