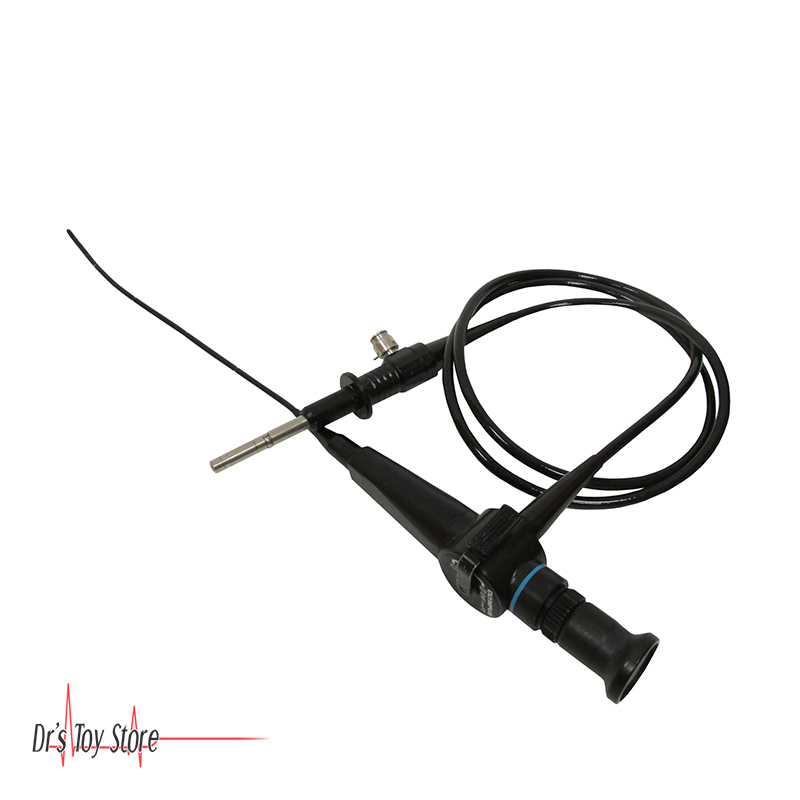

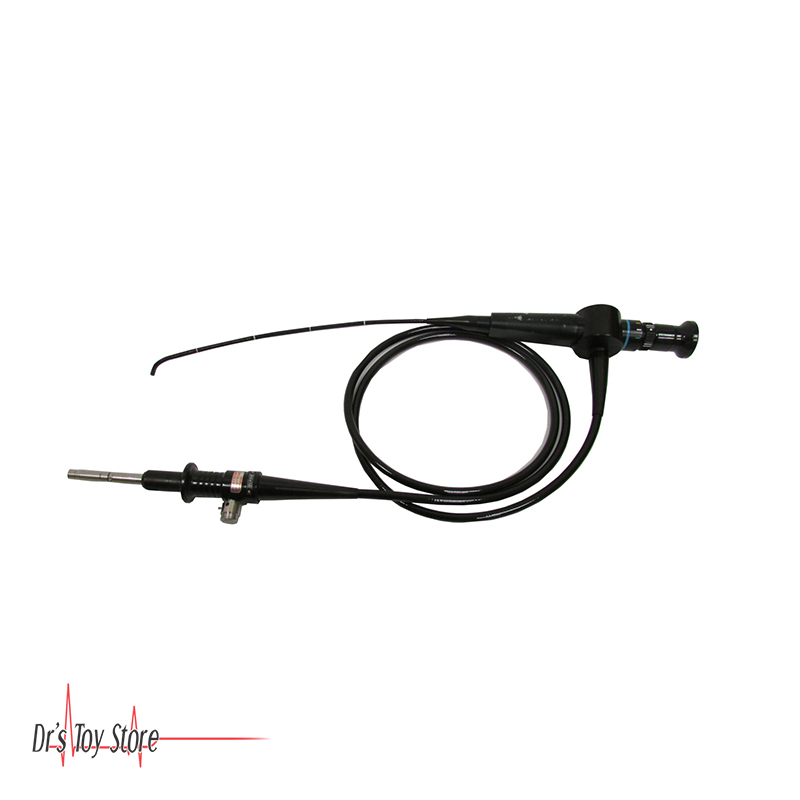

Olympus ENF-P4 Rhino-Laryngo Fiberscope
Introducing the Olympus ENF-P4 Rhino-Laryngo Fiberscope. Larger, Brighter, Crisper Images from the Leader in Diagnostic Laryngoscopy.
Image Size Now 25% Larger – This scope incorporates the very latest high-grade fiber-optic technology, ensuring that the images you see are as clear and accurate as possible, while also enabling us to add even more fibers, giving you an image that’s bigger and brighter than ever – while maintaining the same 3.4 mm diameter of our previous models.
Longer 300 mm Scope – By lengthening the scope to 300 mm, we have made it easier to insert and use. Observation of the nasal cavity and pharynx is much easier, and you’ll be able to work at a more comfortable distance when observing the larynx.
High Resolution Maintained – Improvements in fiber-optic technology have allowed us to increase the number of image guide fibers inside the scope, thereby increasing the amount of image detail. With the same resolution as our conventional model, together with a larger, brighter image, overall improvements in observation capability are remarkable.
Enhanced Brightness – The ENF-P4’s newly developed optical system is extremely efficient at capturing and utilizing light, enabling it to provide images that are much brighter than our previous models while retaining the slim diameter you need for comfortable, easy operation. With its wide 85° field of view and enhanced brightness, the ENF-P4 scope gives you clear, comprehensive views of the nasal cavity and laryngo-pharynx areas.
Wide 130° Up / Down Angulation – The Olympus ENF-P4 Rhino-Laryngo Fiberscope can be angled up or down by up to 130°, making it easier to insert, remove and maneuver.
Olympus ENF-P4 Rhino-Laryngo Fiberscope Features
- Crisp images
- Detailed diagnosis
- Bright observation
- Excellent angulation
- Excellent light transmission
Olympus ENF-P4 Rhino-Laryngo Fiberscope Specifications
- Optical System
- Field of View: 85°
- Direction of view: Forward
- Depth of Field: 5 to 50 mm
- Insertion Tube
- Distal End Outer Diameter: 3.4 mm
- Insertion Tube Outer Diameter: 3.6 mm
- Working Length – 300 mm
- Bending Section
- Angulation Range: Up 130° | Down 130°
- Total Length: 530 mm
