Sonosite Micromaxx Ultrasound Machine – Portable

SKU: SMP-085 Category: Tag:

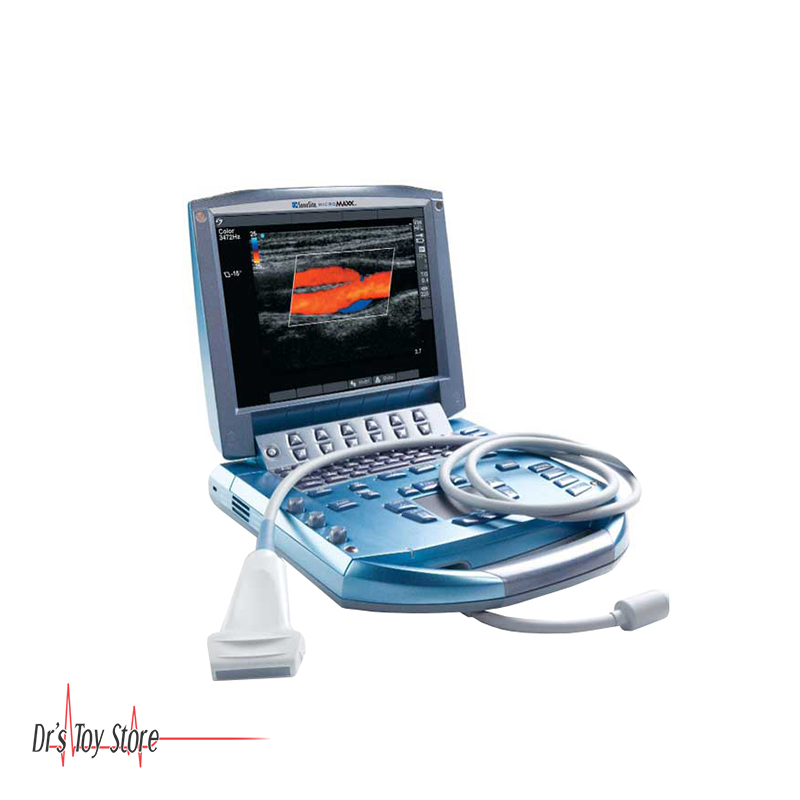

Sonosite Micromaxx Ultrasound Machine

Introducing the Sonosite Micromaxx Ultrasound Machine.

A Proven Performer Designed to make your job easier, faster and more accurate, the MicroMaxx® ultrasound system makes point-of-care ultrasound an affordable reality. It offers impressive image quality, wireless data transfer, and extreme durability. From busy offices and big-city hospitals to critical-care situations where seconds count, the MicroMaxx ultrasound equipment boots up within 15 seconds. This portable ultrasound gets medical professionals into- and out of tight spaces fast.

The Sonosite Micromaxx Portable system software is hard-wired and purpose-built for faster boot-up times, faster digital image processing, and the ability to run for a long time. Power is efficiently used, extending battery life for use wherever needed.

Sonosite Micromaxx Ultrasound Machine Applications

  • Anesthesia
  • Critical Care Cardiology
  • Cardiovascular Disease Management
  • Emergency
  • Medicine
  • Musculoskeletal
  • OB/GYN
  • Radiology
  • Vascular Surgery
  • Shared Service System

Sonosite Micromaxx Ultrasound Machine Specifications

  • Weight: 7.7 lbs
  • Dimensions: 11 3/4″ L x 10 3/4″ W x 3″ H
  • Display: 10.4″ LCD
  • Architecture: All-digital broadband
  • Number of channels: 128 channels
  • Dynamic range: Up to 165 dB
  • Gray scale: 256 shades
  • HIPAA compliance: Comprehensive tool set Imaging
  • Modes and Processing 2D/velocity color Doppler/color power Doppler/M-mode/PW and CW Doppler
  • Dual imaging M-mode/Duplex Imaging
  • 3 sweep speeds
  • 1/2:1/2, 1/3:2/3 and full-screen options
  • 2X Pan / Zoom
  • Tissue Harmonic Imaging Broadband
  • Multi-frequency Imaging 1-8 focal zones

Image processing: Compression, contrast enhancement, persistence, dynamic range, and gain

Transducers Broadband and Multi-frequency: Linear Array, Curved Array, Phased Array, Multiplane TEE, and Micro-Convex

Single Frequency: Cardiac Static Pencil User Interface and Remappable Controls Soft Keys to drive

Advanced features Delta key:

User-assigned functions for increased ease of use Alphanumeric QWERTY keyboard
Track pad with select key for easy operation and navigation
Doppler/M-mode controls: angle, steer, scale, baseline, gain and volume Image acquisition keys: review, report, VCR, clip store, save
Application-Specific Calculations
OB/GYN/Fertility: Diameter/ellipse measurements, volume, six follicle measurements, estimated fetal weight, established due date, gestational age, last menstrual period, growth charts, user-defined tables, multiple user selectable authors, ratios, amniotic fluid index, patient report
Vascular: Diameter/ellipse/trace measurements, volume, volume flow, percent diameter and area reduction, Lt/Rt CCA, ICA, ECA, ICA/CCA ratio, time average mean (TAM), peak trace, ICA/CCA ratio, angle correction, patient report IMT (Intima-Media Thickness):
SonoCalc™ IMT Software – automatic edge detection with mean and maximum thickness reporting Cardiac: Complete cardiac calculations package and patient report including: Ventricular, aortic, and atrial measurements; ejection fraction, volume measurements, Simpson’s rule, continuity equation, pressure half-time, and cardiac output.
