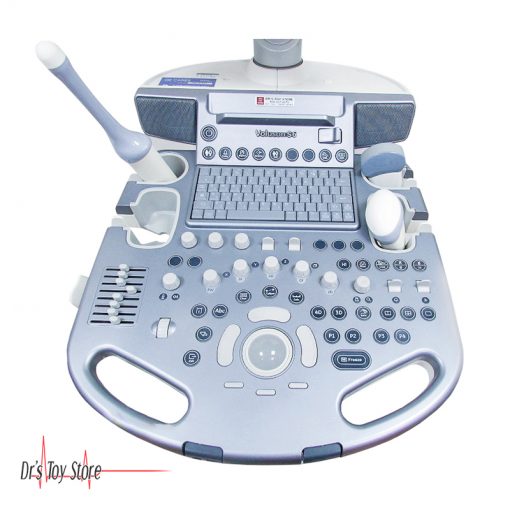

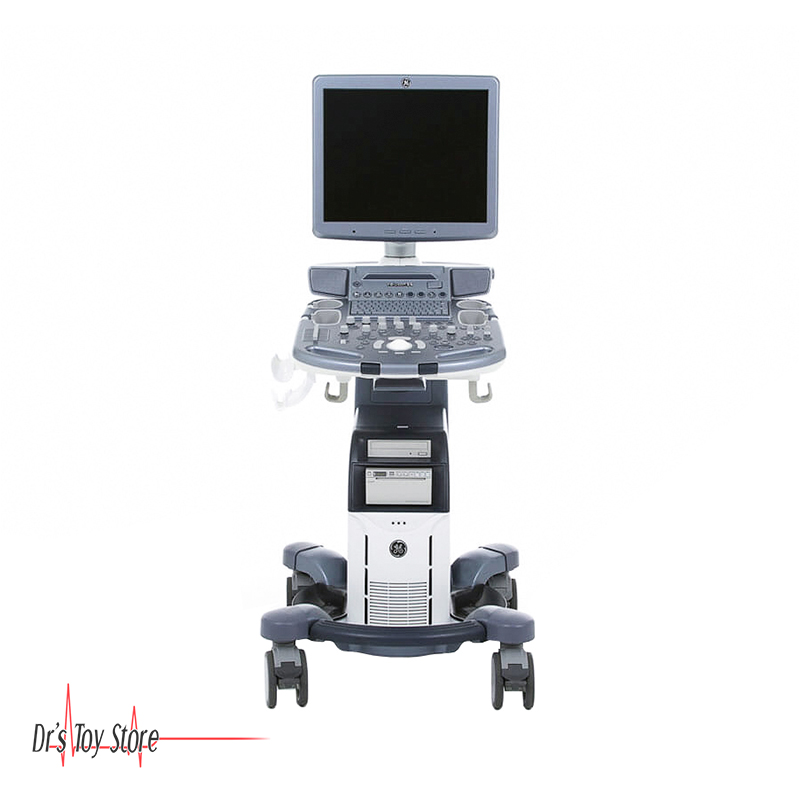

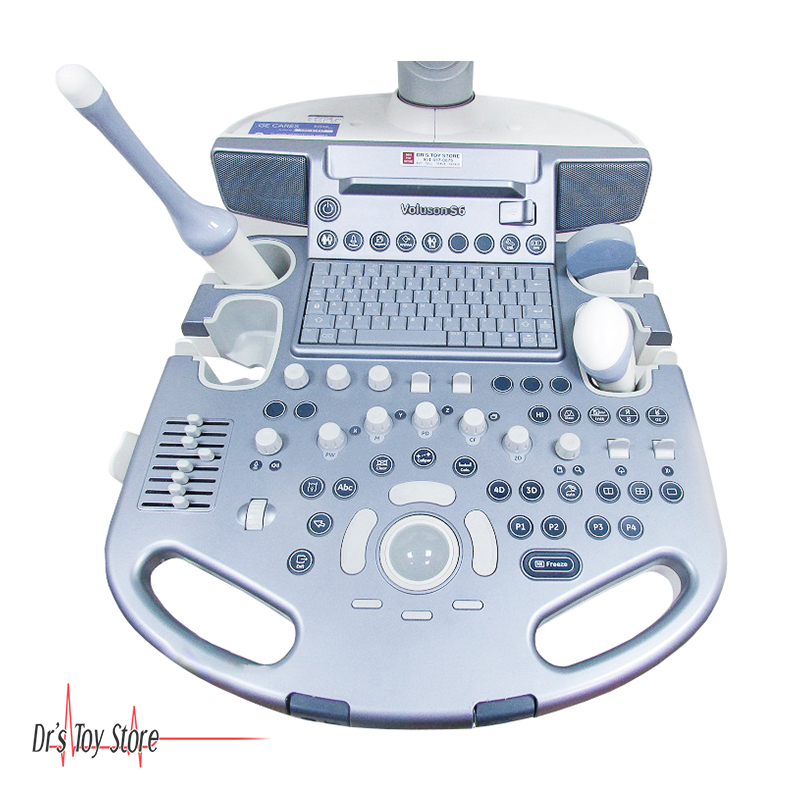

GE Voluson S6 Ultrasound Machine

GE Voluson S6 Ultrasound Machine

The GE Voluson S6 Ultrasound Machine is the most affordable of the new Voluson S Series models for OB/GYN uses. But just because this system is affordable, that doesn’t mean it doesn’t offer incredible power and performance in a compact package. The GE Voluson S6 is smaller and lighter than the GE Voluson 730, yet it is also faster and offers more automated features.

GE Voluson S6 Ultrasound Machine Applications

• Obstetrics
• Gynecology
• Abdominal
• Small-Parts
• Vascular
• Pediatrics
• Cardiology
• Urology
• Musculoskeletal (MSK)

GE Voluson S6 Ultrasound Machine Operating Modes

• B-Mode (2D)
• M-Mode (conventional M-Mode)
• AMM (Anatomical M-Mode)
• PW Doppler with high PRF (PW)
• High PRF Doppler Mode
• Color Flow Doppler Mode (CFM)
• Power Doppler Mode (PD)
• HD-Flow* Doppler Mode (HD-Flow)
• Tissue Doppler Mode (TD)
• M-Mode Flow Modes (M/CF, M/HD-Flow, M/TD)
• Volume Mode (3D/4D)
  • 3D Static
  • 4D Real Time
  • Advanced VCI-SingleView
• Extended View (XTD View)

GE Voluson S6 Ultrasound Machine Features

• 2D / 3D / 4D Imaging
• SonoNT (Sonography-based Nuchal Translucency)
• SonoAVC (Sonography-based Automated Volume Count)
• SonoVCAD (Sonography-based Volume Computer Aided Display)
• STIC (Spatio-Temporal Imaging Correlation)
• DICOM
• SRI (Speckle Reduction Imaging)
• HD-Flow
• Volume Contrast Imaging
• CrossXBeamCRI
• Dual view mode
• 19” flat screen high resolution LCD monitor
• Wireless connectivity
• Console Design
• 4 Active Probe Ports
• Handles in front and rear
• DICOM capable User Interface

GE Voluson S6 Ultrasound Machine Automated tools

SonoNT™ (Sonography-based Nuchal Translucency) – an easy-to-use,semi-automated tool to provide quantifiable NT measurements and image guidance, enhancing the accuracy and reproducibility of these critical metrics.

SonoAVC™ (Sonography-based Automated Volume Count follicle) – automatically calculates the number and volume of hypoechoic structures to speed follicular assessments and enhance exam quality.

SonoVCAD – automatically documents the labor procedure to help users evaluate second-stage labor progression.

GE Voluson S6 Ultrasound Machine Specifications

• Dimensions: 24 1/2″ W x 33 1/2″ D x 38 1/2″ H
  • max height with adjustable monitor: 68″
• Weight: 198 lbs
• Electrical Info: 110 V | 60 Hz or 220 V | 50 Hz
• Communication
  • (3) USB Ports for External Peripherals
  • (2) USB Ports for On-board Peripherals
  • (1) RJ45 LAN Port
  • (1) HDMI Out Port
  • (1) AUDIO Out Port
• User Interface (Monitor)
  • 19″ TFT LCD Screen
  • LCD Resolution: 1280 x 1024
  • Image Size: 960 x 720
  • Brightness: 220 cd/m2
  • Digital Brightness and Contrast Adjustment
