Sonoscape S9 Ultrasound Machine

Includes: 2 Probes

SKU: SUS-889 Category: Tag:

Sonoscape S9 Ultrasound Machine

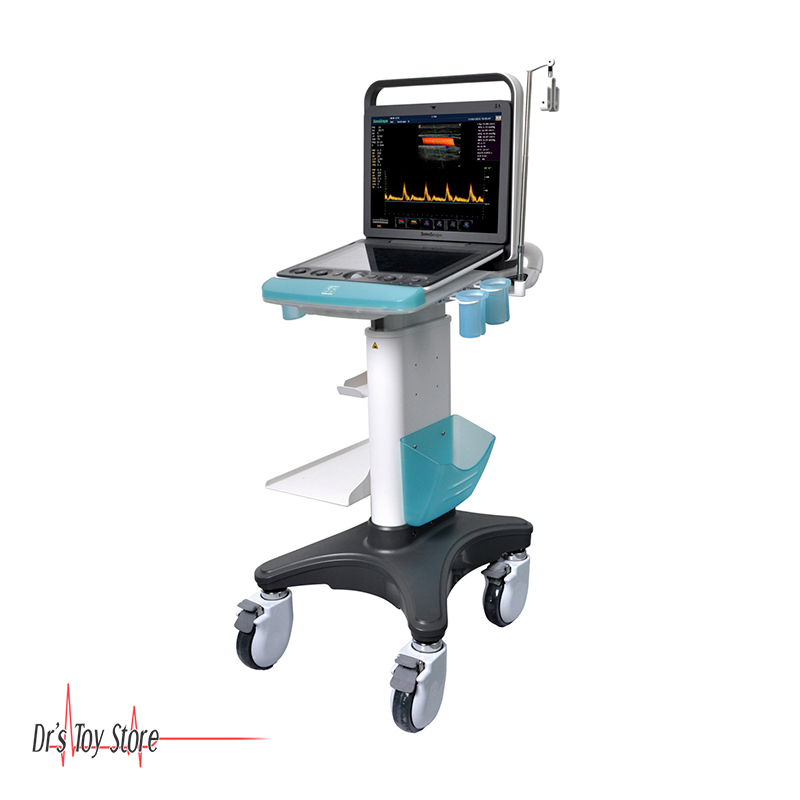

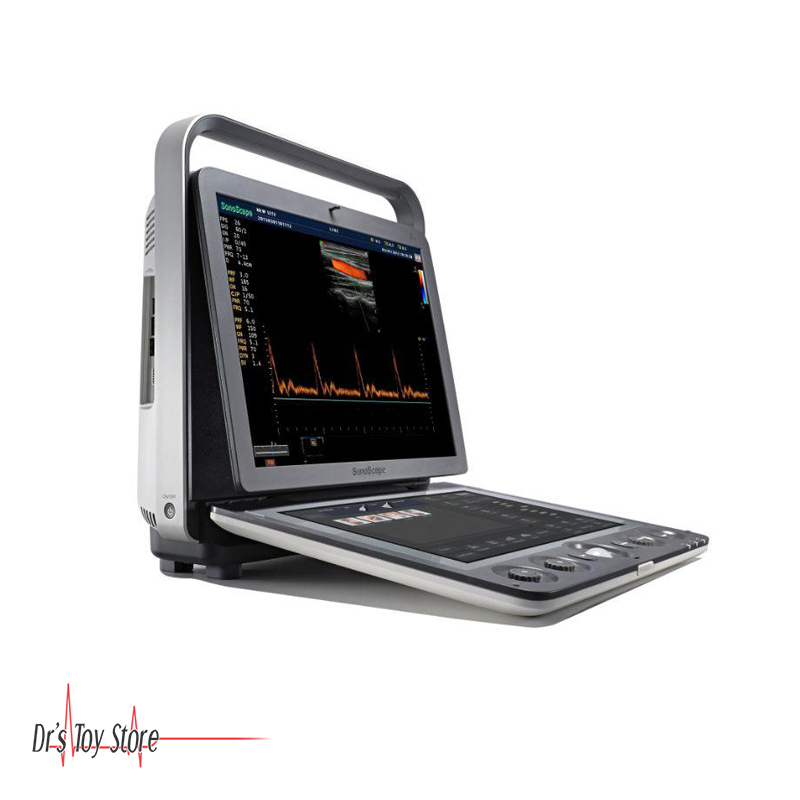

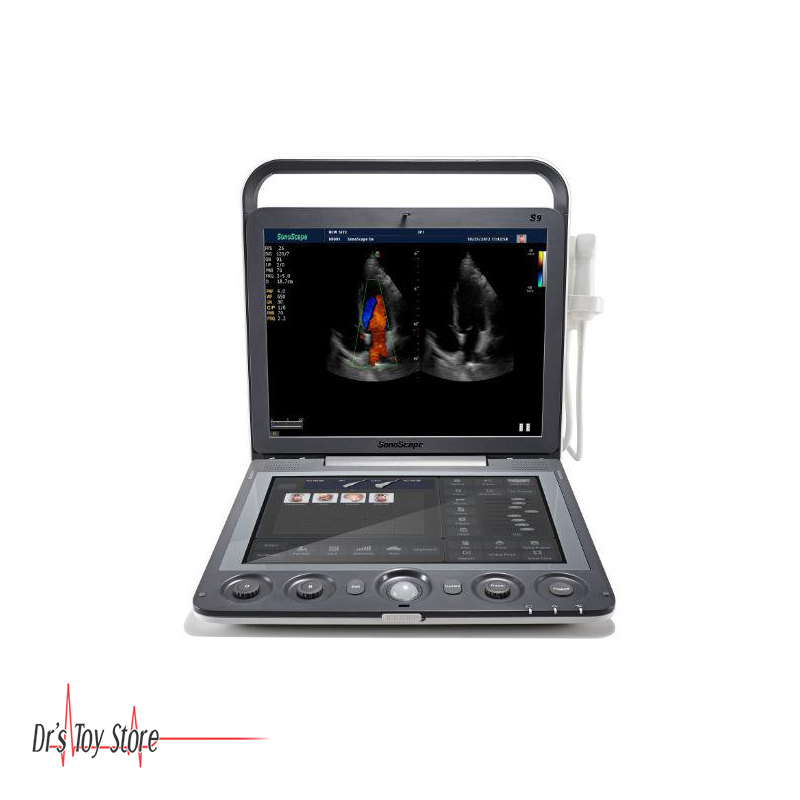

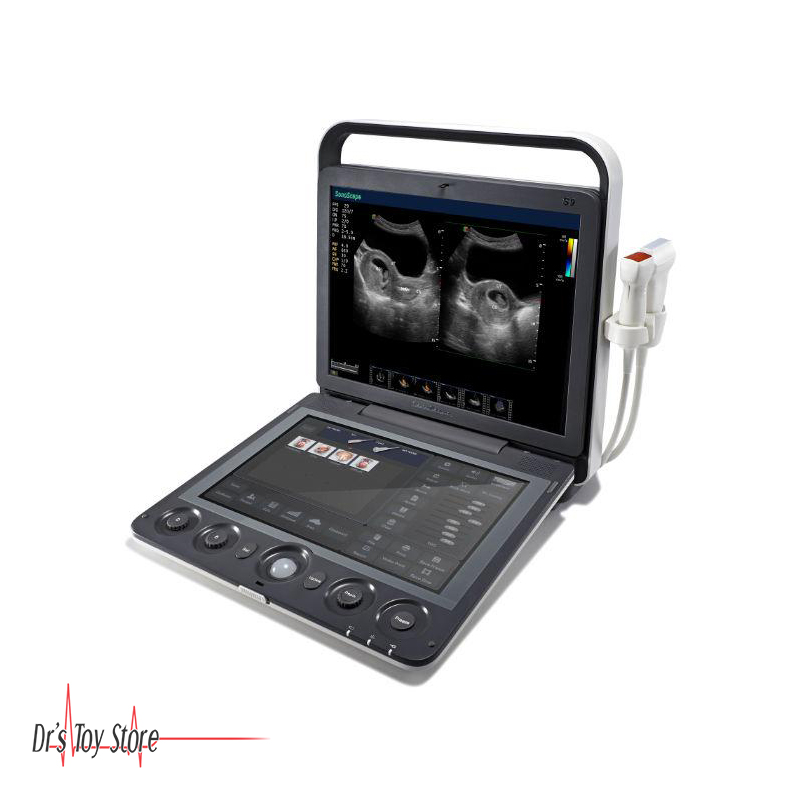

Find out what the SonoScape S9 Ultrasound System provides as far as it’s features and abilities. The new SonoScape S9, is an impressive portable ultrasound machine. It’s the first portable with a full touchscreen interface that is separate from the imaging screen. It’s extremely easy to use, fast, and the image quality is excellent. Its 15″ LCD monitor tilts up to 45-degrees, as well, making it easier to view in a variety of situations.

Sonoscape S9 Ultrasound Machine Features

High Density Probe – The SonoScape S9 Ultrasound Machine can provide high density phased array probe to meet the needs for both high frame rate and premium resolution in cardiac imaging. Thanks to the high sensitivity of the color Doppler mapping of SonoScape, the SonoScape S9 shows accurate cardiac diagnosis beyond your imagination

Electrography – The powerful SonoScape S9 Ultrasound System offers a new method to support sonographers in assessing tissue elasticity. The differences in tissue responses are detected and visualized in real-time by the elastography algorithms through different graphical representations

Stress Echo – Stress echo package with fully integrated and easily programmable interface to customize your needs. All features combine with the SonoScape S9, to deliver a streamlined workflow for wall motion scoring and reporting

Panoramic Imaging – The SonoScape S9 Ultrasound System provides real-time panoramic imaging for bulky organs and masses; for ease of measurement and diagnostic efficiency to generate rapidly accurate information on the position of lesions

Endovaginal 3D/4D probe – Detects the finest details earlier in the first trimester and in gynecology exams, enhancing your diagnostic confidence. Except for the quality of 3D/4D, S9 also allows excellent 2D imaging under endovaginal 3D/4D diagnose, which increases the diagnostic capacity and the satisfaction of the obstetric patients

Automatic Tissue Optimization Technology (ATO) – and M-Tuning (1-button scanning) deliver time savings by adjusting the parameters automatically in order to display the optimal image quality for the actual imaged type of tissue

Complete Doppler Capabilities

  • Color Flow
  • Power Doppler
  • Pulsed Wave Spectral Doppler
  • Steerable Continuous Wave Doppler

Multi-parameter Compound Imaging – in order to form an integrated image, this feature combines multiple coplanar images captured from different beam angles

Steerable M Mode – precise axis positioning what results extremely accurate measurements

Panoramic Imaging – ultra-wide field of view, providing maximum information on tissue and lesions

U-scan Technology – the latest advance in Speckle Reduction Technology, reduces noise while increasing border definition and diagnostic confidence

E-flow – capturing low-velocity blood flow signals by using Advanced Doppler Technology with increased color sensitivity

Tissue Doppler Imaging – enables quantitative assessment of left ventricular systolic and diastolic function

Super High Density Transducers – provide more information in every image enabling the visualization of complex anatomy with superior detail and precision

Pulse Inversion Harmonics – offers numerous advantages over conventional imaging, including improved contrast resolution, reduced noise and clutter, improved lateral resolution, reduced slice thickness, reduced artifacts and, in many instances, improved signal-to-noise ratio

Additional SonoScape S9 Ultrasound System Features

  • 13.3 inch smart full touch panel with 135°convertible open angle
  • Two transducer sockets
  • Full range of transducers: Linear, Convex, Micro-convex, Endocavity, Phased array, Intraoperative, TEE, Pencil probe, Volumetric, Endocavity 4D and Laparoscope probe
  • Advanced application technology: TDI, Stress Echo and Elastography
  • Full patient database solution: DICOM 3.0, AVI, JPG, Dual USB, HDD, PDF report
  • Removable battery ensures 90 minutes scanning
  • Stylish trolley with abundant accessories
  • This SonoScape device has been approved for medical usage by the FDA


Additional information

Weight 50 lbs

4-16MHz/ 38mm (L742), 4-16MHz/ 52mm (L752), 2-6.8MHz/ R40mm (C344), 2-6.8MHz/ R55mm (C353), 1-6MHz (3P1), 3-9MHz (5P2), 3-15/ R10mm (6V3), 2-6.8MHz/ R40mm (VC6-2)


Extend Transducer Socket, Mobile Trolley

Biopsy Guides

L742, L752, C353, 6V3 (reusable)
