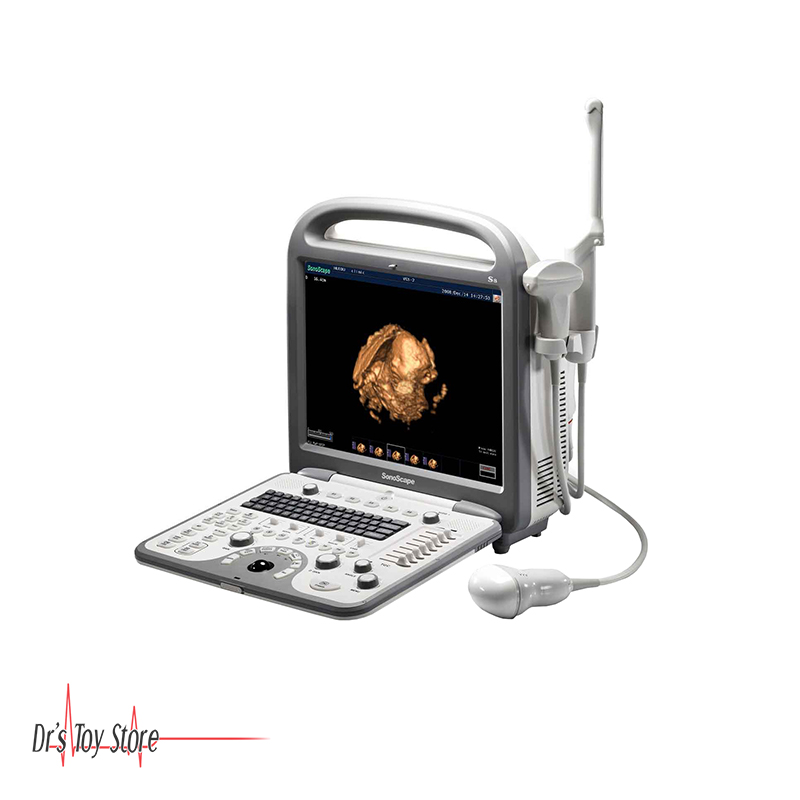

Sonoscape S8 Ultrasound Machine


SKU: SSU-800 Category: Tag:

Sonoscape S8 Ultrasound Machine

The SonoScape S8 Ultrasound Machine is a complete full-body ultrasound machine that has more features than any other in its price range. For less than the cost of a used ultrasound machine with similar functionality, you can buy a new SonoScape S8 with a 2-year warranty, excellent image quality, and extreme versatility.

It is a fully shared-service portable ultrasound machine with a full array of applications and probes. The features and capabilities found on the SonoScape S8 are typically only found on full-size console machines. For image quality, the SonoScape S8 employs the latest image optimization technologies, such as speckle reduction, compound imaging, tissue harmonics, Automatic optimization, and panoramic imaging.

For 4D imaging, the SonoScape S8 serves as an excellent budget 4D portable ultrasound machine, although those seeking to perform solely 4D ultrasound imaging, they may want to consider a higher-end 4D ultrasound machine that is built specifically for 4D imaging.

SonoScape S8 Ultrasound Machine Features

  • High Density Broadband Transducers Support
  • Complete Imaging modes
    • 2D with THI
    • Color M
    • CFM
    • PDI
    • PW
    • HPRF
    • CW
  • (2) universal transducer sockets for quickly switch transducers during scanning
  • Intuitive interface and full function control panel
  • Portable Color Doppler Scanner, designed in a new powerful lightweight architecture
  • 15” LCD screen with anti-glare – provides clear images from any angle
  • Abundant Connection Interfaces
    • DICOM 3.0
    • USB ports
    • VGA, S-video
    • ECG port
  • Full Cardiovascular Transducers
    • Adult and pediatric TEE
    • Phased array
    • Pediatric phased array
    • High frequency linear array
  • Comprehensive cardiovascular packages
    • Stress Echo
    • TDI
    • Steer M
    • IMT
  • Integrated with state-of-the-art technologies
    • μ-scan
    • IMT
    • multiple-beam processing
    • Automatic Flow Volume Analysis
    • 4D Imaging
  • Built-in Li-ion battery for more than one hour of continuous scanning
  • Multi-specialty High Performance Imaging

SonoScape S8 Ultrasound Machine Advanced Features

  • 2D (B & M mode) with Harmonic Imaging
  • Color Flow Imaging, Pulsed Wave – Spectral Doppler, Steerable Continuous Wave Doppler, Power Doppler
  • Volumetric 4D Imaging
  • Advanced Tissue Harmonic Imaging
  • MicroScan™ – Noise and Artefact Reduction Algorithm
  • Multi Parameter Compound Imaging
  • M Tuning™ – One Touch Image Optimization Button
  • Steerable M mode
  • Hot Key Functions on Operating Panel
  • Bi-Plane Transrectal Imaging
  • Multi-Plane Adult and Pediatric TEE/TOE
  • Panoramic Imaging
  • Endocavitary Imaging with Extended Field-of-View
  • Hot Swap Transducers

SonoScape S8 Ultrasound Machine Specifications

  • Frame Rate: minimum 750 fps
  • Display Gray Scale: 256 levels
  • Digital Channel Number: 18432
  • Hard Disk Capacity: 160 GB
  • Still Image Formats
    • PPM
    • JPG
    • BMP
    • TIF
  • Video Clip Formats
    • CIN
    • WMV
    • AVI
  • Multi-language support
  • Scanning Methods
    • Electronics Convex Sector
    • Electronic Linear
    • Electronic Phased Array Sector
  • Sweep Angle
    • Curved Probe – 70 degrees or more
    • Phased Array Probe – 90 degrees or more
    • Micro-curved Probe – 193 degrees or more
  • Transducer Types
    • Convex array
    • Micro convex array
    • Linear array
    • Phase array
  • Electrical Info: 100 – 220 VAC | 50 – 60 Hz | 3.15 A
  • Battery is good for 1 Hour of Scanning
  • Obstetrical Report
    • Obstetrical Curve
    • Fetal Anatomy
    • Biophysical Profile
    • Fetal Compare
    • Picture Comment
  • Cardiac Function Report
  • Small Part Report
