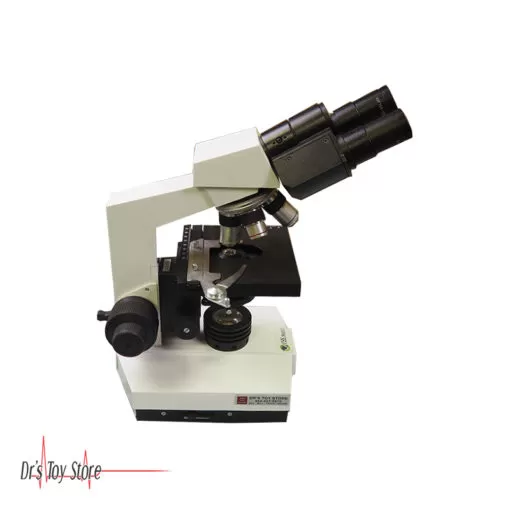

PSS Select Binocular Microscope
The PSS Select binocular microscope includes 2 eyepieces and 4 objectives (4x 10x 40x and 100x).
PSS Select Binocular Microscope Features
OPTICS: All optical surfaces are precisely polished and coated for best resolution and contrast. The DIN standard objectives are parfocal, parcentered and color-coded. Achromatic, semi-plan and plan objectives are available.
BODY: Precise binocular, trinocular, dual-viewing and monocular heads with high quality coated prisms, and a 360 degree rotation.
STAND: Ruggedly constructed all metal stand features low position coaxial coarse and fine focusing mechanism with tension control and safety stop. Precentered Abbe condenser NA 1.25 with iris diaphragm and filter holder sit firmly in the adjustable substage.
MECHANICAL STAGE: Built-in graduated mechanical stage use ball bearing and precise dovetail mechanism and features low coaxial controls. It is 125mm x 130mm in size and has X-Y travel of 30mm x 60mm with
graduation of 0.1mm.
ILLUMINATION: The sturdy metal base accommodates 6V20W halogen lamp assembly with brightness intensity control assuring steady, even illumination at all levels. A newly designed lamp compartment features
a swing out lamp socket for easy, instant lamp changes.
PSS Select Binocular Microscope Specifications
- Series G300 Lab microscope
- Input 110V, 60Hz, or 220V, 50Hz, Switchable
- Lamp Halogen 6V, 20W, G4 PIN
- On off switch
- Intensity control
- Eye piece WF10X – 18mm
- Objectives (04)
- 10/0.25 (160/0.17)
- 100/1.25 (160/0.17)
- 40/0.65 (160/0.17)
- 4/0.1 (160/-)
