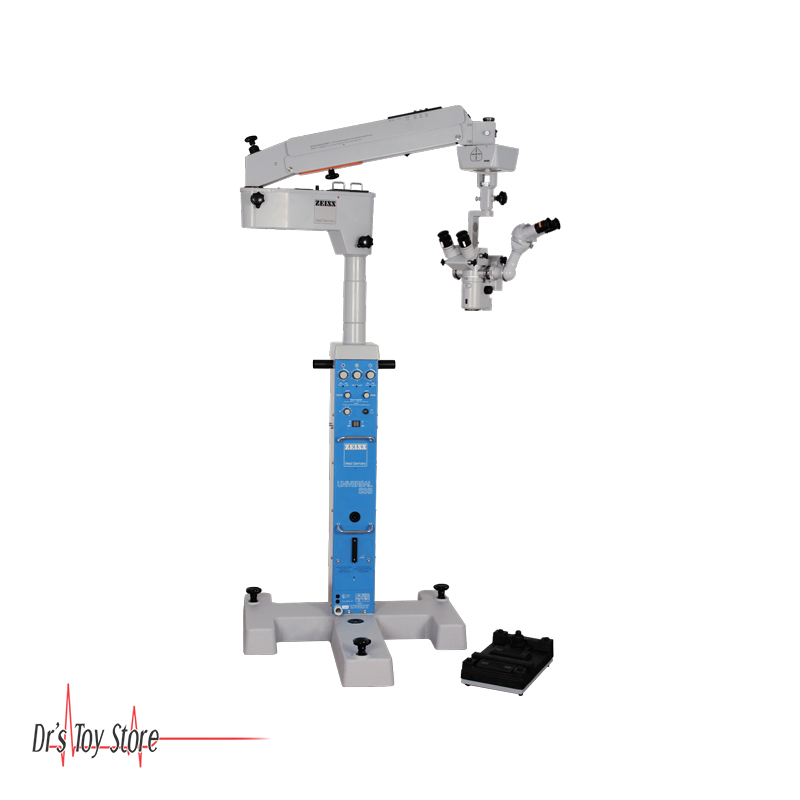

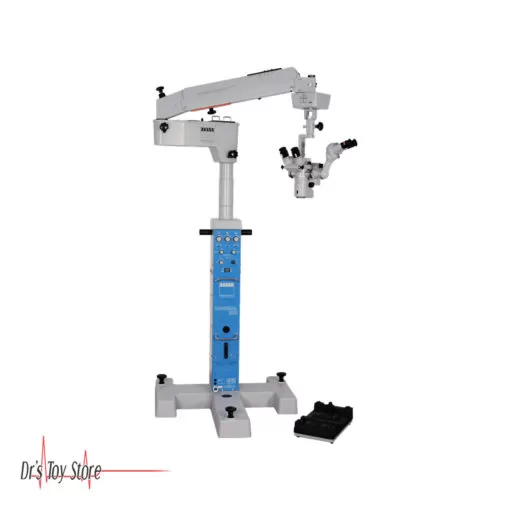

Zeiss OPMI 6-SFC Universal Microscope with Foot Pedal


Out of stock

SKU: ZOU-630 Category: Tags: ,

Zeiss OPMI 6-SFC Universal Microscope with Foot Pedal

Although the Zeiss OPMI 6-SFC Universal Microscope has not been manufactured new since the 90’s, it has always been reliable both in optical clarity and with enhancing the red-reflex. The technology was applied to the newer Visu series because of it’s simplicity and performance. This system is one of our least expensive options for eye surgery and is an excellent value.

Zeiss OPMI 6-SFC Universal Microscope Features

  • Great Value on a Full Ophthalmic Scope
  • Reliable Red-Reflex
  • Zeiss OPMI 6s
  • Zeiss XY2
  • 0-180 degree inclinable binos
  • Zeiss F125 inclined binos
  • 4 12.5x widefield eyepieces
  • Zeiss beamsplitter
  • Stereo observer tube
  • Zeiss objective lens 175mm
  • Zeiss S3 floorstand
  • Zeiss footswitch
  • Sterilizable covers
  • Inclinable binocular 0-60°.
  • Two 12.5x screw in eyepieces.
  • Fiber-optic illumination.
  • F-200mm objective.
  • Twelve function foot control.
  • X/Y With auto center.
  • Sharp optical view.
  • Optimal depth of focus.
  • High resolution focus and zoom.
  • Manual override of motorized zoom.
  • Terrific Depth of Focus
  • Compact Microscope Body
  • High Resolution, Internal, Motorized Focus and Zoom
  • Coaxial Illumination at Angle of 4 Degrees for Bright Red Reflex
  • 1:4 Magnification Ratio
  • Manual Override of Motorized Zoom
  • Motorized Focus-50mm Range
  • Standard UV Filter
  • Two Bulb System for Immediate Back-up
  • Varying Rheostat for Illumination Levels
  • Reliable and Easy to Exchange Bulbs
  • Selector for 110V or 220V
  • Travel Range of 4\” x 4\”
  • Automatic Centering Button
  • Motorized Movement Activated by Joystick on Foot Control
  • Push Button for Illumination On/Off Available
  • Smooth Pedals for Motorized Focus and Zoom
  • Movable Joystick for Motorized XY

Zeiss OPMI 6-SFC Universal Microscope Specifications

  • Microscope
    • Binocular: 0-60 Inclinable ; f=160mm | Other options: 0-60 or 0-180 Degree Widefield ; f=170mm
    • Objective Lens: 175mm, 200mm
    • Magnification: Motorized 1:4, .5…2.0
    • Focus: Motorized with 50mm travel
    • Eyepieces: 12.5X Scre-In | Other options: 10x 22B or 12.5x 18B Widefield
    • Pupillary Distance: 55mm – 75mm
    • Filter: Standard UV
  • Illumination
    • Lightsource: Integrated 12V | 100W
    • Illuminated Field: 48mm
    • Power Source: 110 – 240V ; 50 – 60Hz
  • Shipping Weight: 330 lbs
