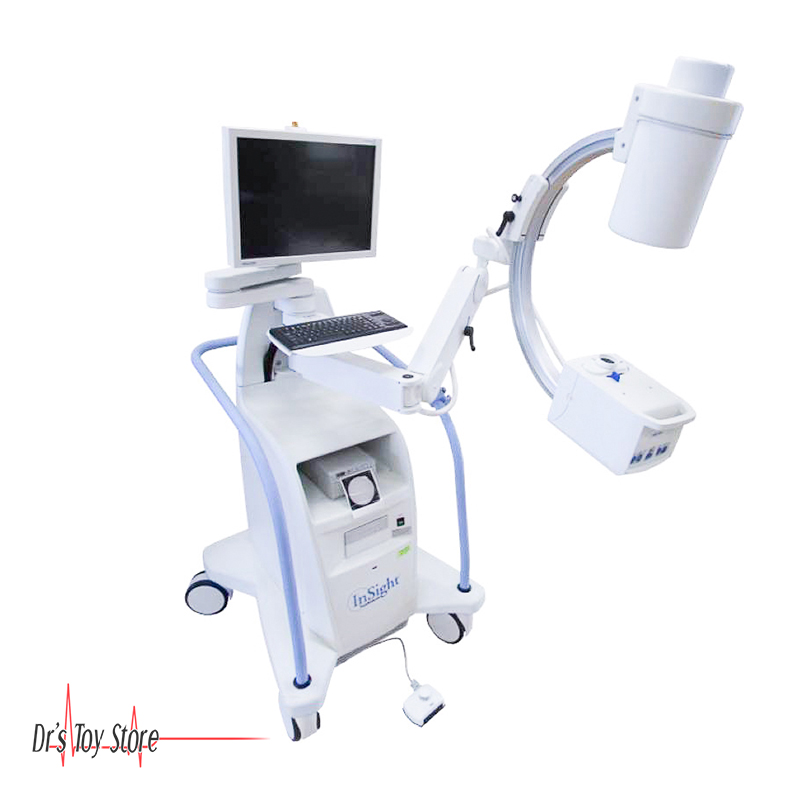

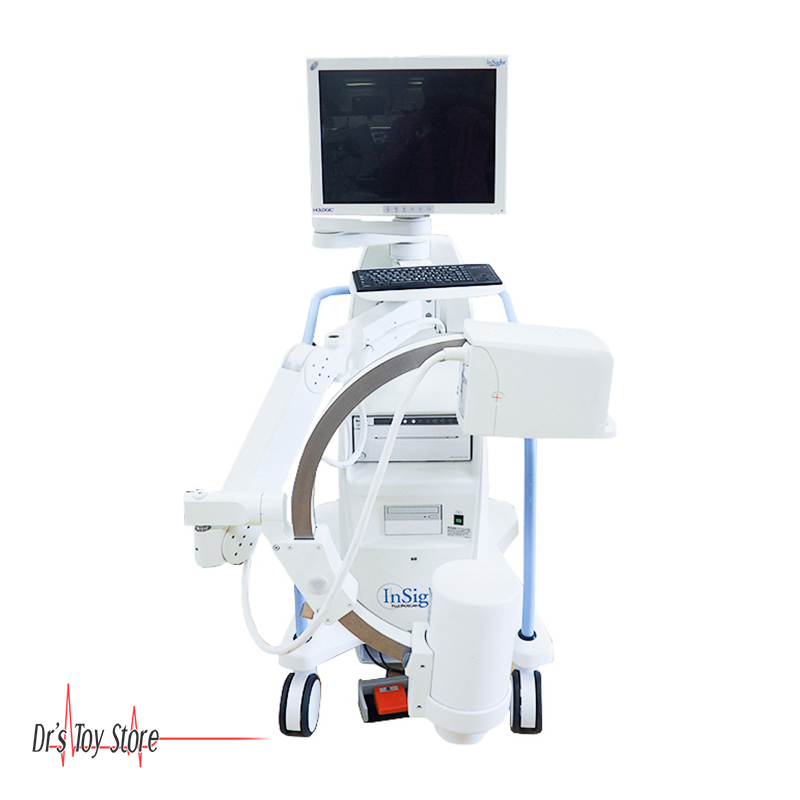

Hologic Fluoroscan Insight 2 Mini C-Arm Imaging System


SKU: HIM-243 Category: Tag:

Hologic Fluoroscan Insight 2 Mini C-Arm X-Ray

The Hologic Fluoroscan Insight 2 Mini C-Arm is designed to meet all extremity imaging, with its exclusive rotating capabilities being extremely dependable, It provides imagine versatility right in the surgical suite regardless of how challenging the extremity procedure may be. Combining Tremendous Maneuverability, Ultra fine low dose fluoroscopy and automated adjustments this system delivers high resolution images. Regardless of how challenging the extremity procedure may be, the Fluoroscan Insight c-arm imaging system’s versatility of imaging capabilities will fulfill that with in your medical facility or surgical suite.

Hologic Fluoroscan Insight 2 Mini C-Arm X-Ray Specifications

  • X-Ray Source
    • Focal Spot Size: 0.045 mm
    • Tube kVp Range: 40 to 75 kVp
    • Tube Current Range: 0.020 to 0.100 mA
  • Image Intensifier
    • Dual Mode 4″ (10cm) and 6″ (15cm)
  • Monitor
    • 20″ LCD Flat Panel
    • Touch Screen Sensitivity
    • Resolution: 1200 x 1600
    • HD Quality Display
  • Image Matrix Size
    • 1k x 1k High Definition
  • X-ray Power Control
    • Auto and Manual Mode
  • C-Arm
    • Free Space: 14″ (36 cm)
    • Depth: 16″ (40.6 cm)
    • Orbital Rotation: 120°
    • Horizontal Travel: 23°
    • Vertical Travel: 23″ (58 cm)
    • Pivot Rotation: 380°
    • Panning Motion: 320°
  • Image Storage
    • Permanent Hard Drive: 7,000 images
    • Removable Data Storage: USB port, CD/DVD-RAM drive
  • Image Acquisition
    • Rate of 30 fps (standard imaging)
    • Rate of 25 fps (cine (digital) recording)
  • Imaging Features
    • Snapshot Continuous Cine (Digital) Recording
  • Imaging Features
    • Brightness/Contrast Control
    • Automated Image Processing
    • Real-Time Noise Reduction
    • Edge Enhancement Auto-Dose Control
    • Magnify-Zoom-Pan
  • Footswitch Options
    • Triple Function Footswitch (standard)
  • Printer Options
    • Small Format Thermal Printer
    • Large B/W Hybrid Graphic Printer
  • Full DICOM Connectivity
    • DICOM Store / send / print / modality work list
  • Space Allocation
    • Door size: 30″ minimum
  • Power Requirements
    • 100, 120, 220, 240 VAC selectable
    • 50/60 Hz input; 75 W

The Fluoroscan InSight 2 mini C-arm is an intuitive and easy-to-use, cost effective system designed specifically for the orthopedic and extremity imaging market. With high quality digital images, simplified operation and easy mobility, the system is the ideal choice for the operating room, emergency department, doctor’s office, surgery center, and sports medicine facility. The system is equipped with a standard 6”/4” image intensifier and delivers ultra-fine, low-dose fluoroscopy and snap-shot images. New system enhancements have been made to help you see more; a 24” high-definition, hi-bright monitor paired with MegaView™ Image ensures you see your images at their largest and sharpest – even from a distance.
