Conmed Hyfrecator Plus 7-797

$595.00

Quantity:
SKU: CHP-797 Category: Tags: ,

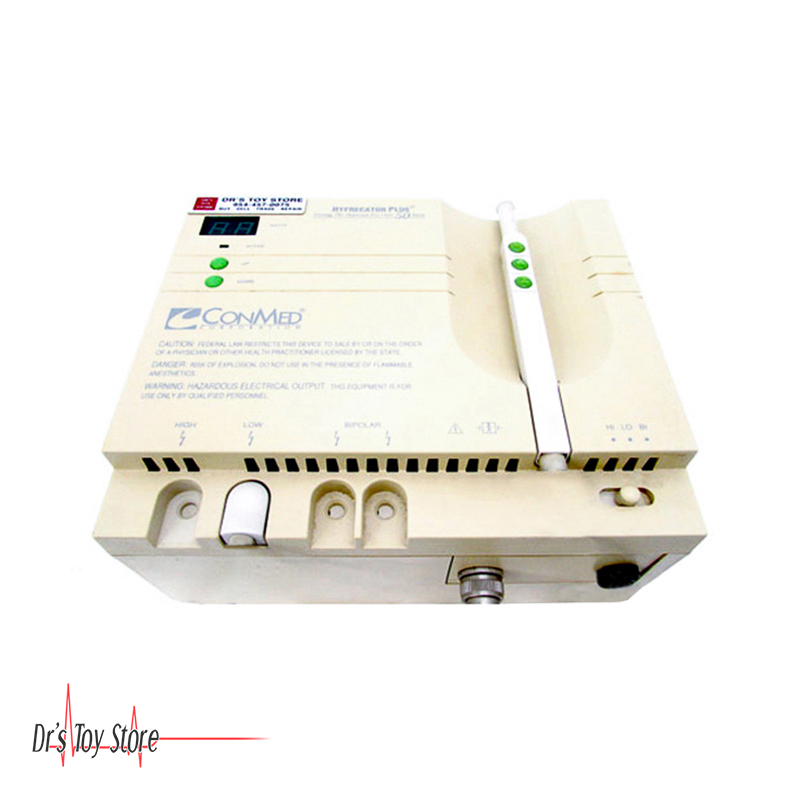

Conmed Hyfrecator Plus 7-797


With a multitude of applications in such diverse specialties as dermatology, plastic surgery, gynecology, dental and oral surgery, ophthalmology, otolaryngology, proctology, and urology, the Conmed Hyfrecator Plus 7-797 lets you perform a wide variety of desiccation, fulguration, and coagulation office procedures.

The ConMed Hyfrecator Plus 7-797 includes a foot control pencil with 10 foot (3.0 m) cord, foot pedal, and sterile sheaths. The Hyfrecator Plus 7-797’s electronic circuitry provides a near linear power output. It provides precision whether it’s being used at full power for broad surface coagulation or low output for delicate facial procedures.

ConMed Hyfrecator Plus 7-797 Specifications

  • Power Requirements: 120 V, 50/60 Hz.
  • Output Power:
    • Bipolar: 30 ± 6 Watts (500 Ohm load).
    • High: 30 ± 6 Watts (1000 Ohm load).
    • Low: 15 ± 3 Watts (500 Ohm load).
  • Maximum Power: 36 Watts (500 Ohm load).
  • Open Circuit Voltage:
    • Bipolar: 3000 Vp-p Max.
    • High: 7000 Vp, 10000 Vp-p Max.
    • Low: 4000 Vp-p Max.
  • Frequency: 500 KHz at 31.25 KHz rate.
  • Output Wave Shape: Damped sinusoidal.
  • Output Regulation: ± 30% at 30 Watts (500 Ohm load) for a ± 10% line voltage.
  • Duty Cycle: 10 seconds on, 30 seconds off.
  • Audio: 1 KHz and 2 KHz, 65 db minimum.
  • Display Reading:
    • Speed 0 – 30: 10 seconds.
    • Accuracy: 1% at any setting.
    • Low Output Terminal:
      • 0 – 5 Range: 0.2 watt increments.
      • 5 – 15 Range: 1 watt increments.
    • Bipolar and High Output Terminals:
      • 0 – 30 Range: 1 watt increments.
  • 60 Hz Leakage: 50 microamps max. third wire of line cord open.
  • Bipolar RF: Power reduction ratio is greater than 80% of maximum output.
  • Dimensions: 7.5″ (H) x 4″ (D) x 8.75″ (W) (190 mm x 102 mm x 222 mm).
  • Weight: 6 lbs (2.7 kg).
