Conmed Excalibur Plus PC

Conmed Excalibur Plus PC

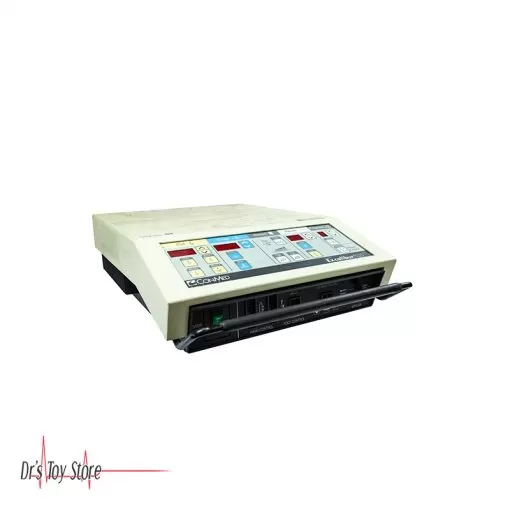

Introducing the Conmed Excalibur Plus PC Electrosurgical Unit.

Conmed Excalibur Plus PC Features

• Most powerful isolated ESU available
• Allows the Surgeon to adjust power settings from the surgical field with a standard ES pencil
• Excalibur Plus PC Patented Controlled Output Voltage in CUT maintains minimum necessary voltage for smooth cutting through various impedance tissues with minimal thermal damage
• Electrosurgical Generator with Cut, Coag, Bipolar and Blend
• 300 W of output
• The Excalibur Plus PC offers a scalpel-like cut and three blend modes
• Pure Cut Maximum Peak to Peak Voltage is 2000 V
• Blend 1- Maximum Peak to Peak Voltage is 2000 V
• Blend 2- Peak Voltage of 2200 V
• Blend 3- The Excalibur plus PC comes equipped with the maximum Peak to Peak Voltage of 2400 V

Conmed Excalibur Plus PC Specifications

• Weight: 40 lbs
• Dimensions: 18” W x 22 3/4” L x 6 1/4” H
• Patient Connections to Neutral: Less than 10 µA
• Chassis to Neutral: Less than 25 µA typical
• Mains over current protection: Combined 2-pole circuit breaker / power switch
• Cooling: Natural convection, conduction, and radiation. No fan
• Single Pad Monitor Mode: Two wire continuity detector, typical threshold = 10 Ohms
• Dual Pad Monitor Mode: Two wire resistance monitor, typical acceptance range 10 to 150 Ohms, trip threshold typically 20% higher than the last monitor set point activation, visual indication of patient resistance
