TransMotion TMM6 Stretcher-Chair – Power Drive


In stock

SKU: TMM-603 Categories: , Tag:

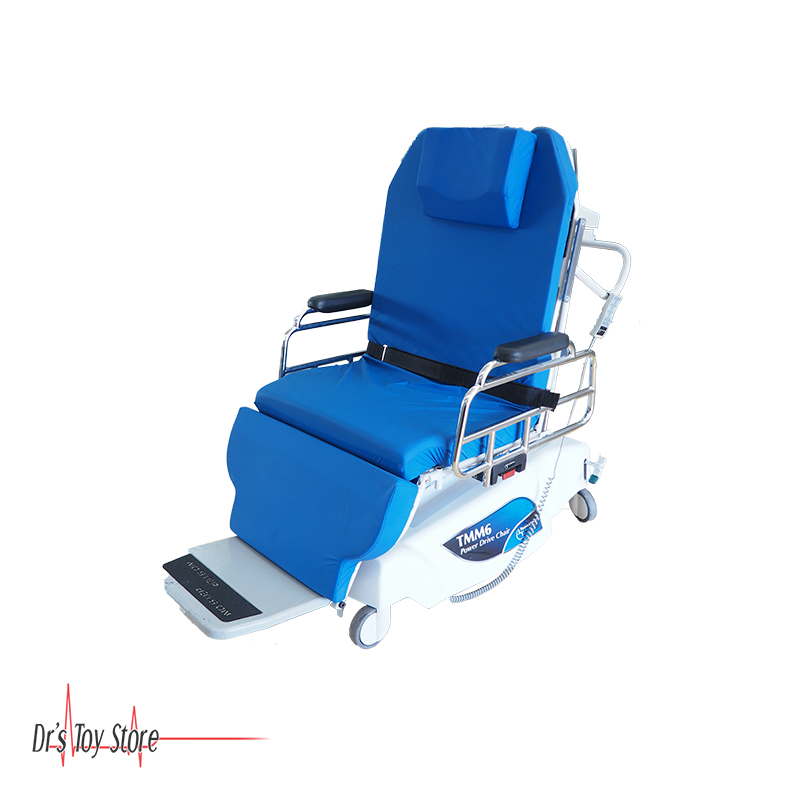

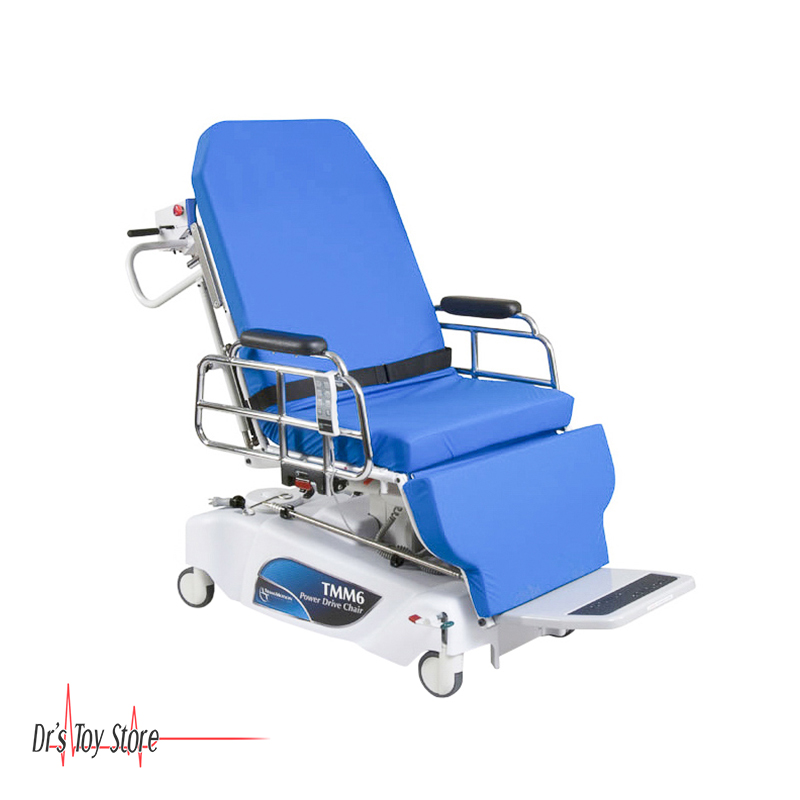

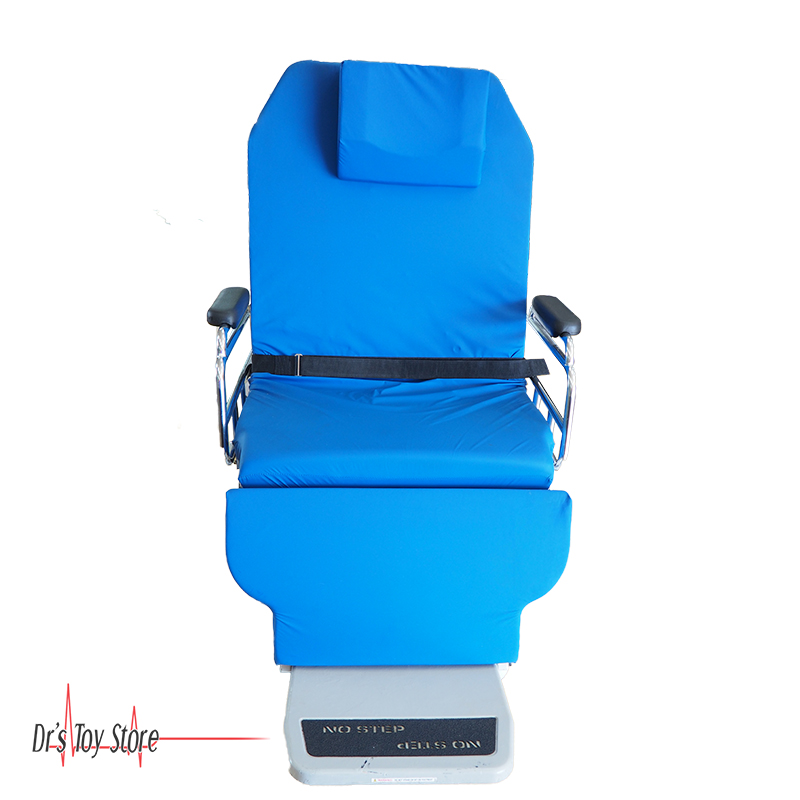

TransMotion TMM6 Stretcher-Chair – Power Drive

Presenting the TransMotion TMM6 Stretcher-Chair – Power Drive

TransMotionTMM6 STRETCHER-CHAIR Standard Features

  • FULL RADIOLUCENT BACK SECTION allows for X-Ray, C-Arm and fluoroscopic procedures
  • USER INTERFACE manages Power Drive system. Includes Power On/Off, Security Keypad, Caster Brake On/Off, Drive Alarm, Battery Charge Monitor, Speed Settings, Quick Stop and Emergency Stop Buttons.
  • ARTICULATION TUBE automatically adjusts for driver in all positions – chair to stretcher. Easy pull knob to raise tube up and out of the way for radiologic procedures through back section
  • HEIGHT ADJUSTABLE COLUMN for 23” Low to 39” High (T)
  • OXYGEN TANK HOLDER built-in to hold D and E size tanks
  • A/C PLUG-IN (A) with 10 ft, retractable cord reel. On-board central battery recharging system.
  • SMART DUAL BASE DESIGN provides superior traction over all surfaces with unmatched maneuverability, including zero-turn.
  • MEMORY FOAM CUSHIONS for enhanced patient comfort
  • CUSHIONED, CHROME PLATED SIDE RAILS swing away for safe and easy patient ingress and egress.
  • PATIENT WAIST BELT with adjustable Velcro fasten included

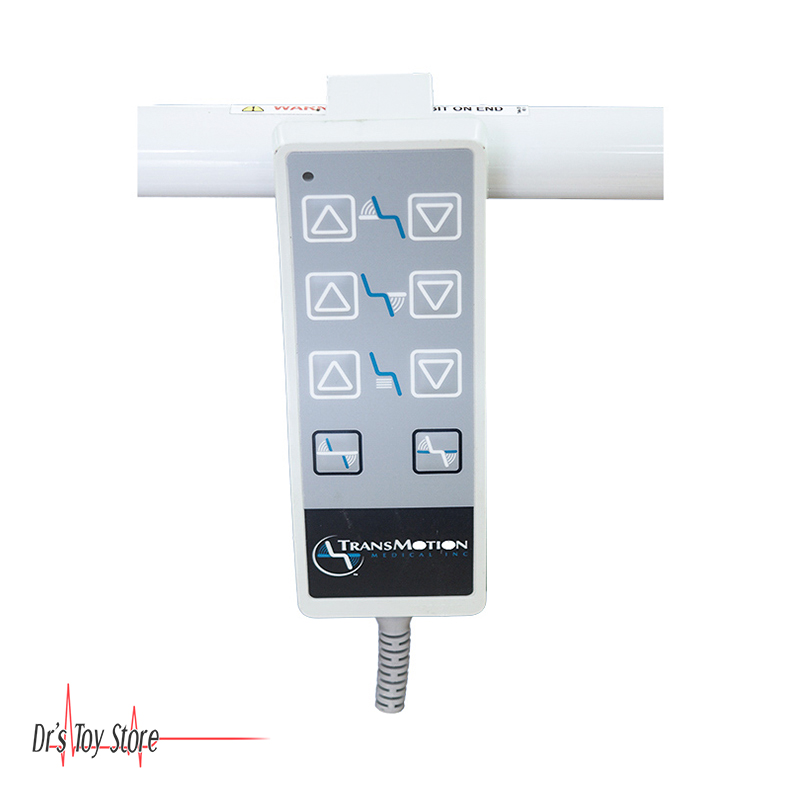

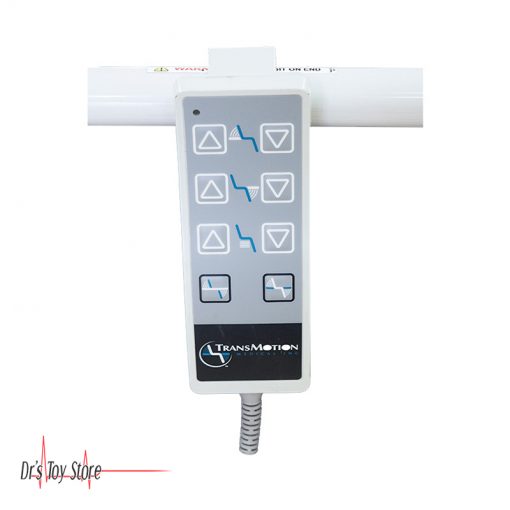

  • EXCEPTIONAL MOTORIZED PATIENT POSITIONING accomplished by a hand held pendant for back, leg and low-high height adjustment. Includes auto-contour buttons which automatically positions the chair from seated to fully reclined.
  • MANUAL QUICK RELEASE BACK SECTION for emergency CPR function
  • LONG AUTO-EXTENDING FOOT REST for added patient comfort and safety during seated transport. Added surface length in stretcher position
  • DUAL SIDE BRAKE AND STEER SYSTEM features sturdy lock and a locking steer caster for easy mobility
  • REGENERATIVE BRAKING contributes to longer battery life, also allows smooth power drive stops
  • BUILT-IN, FAIL-SAFE TRANSAXLE PARKING BRAKE is spring applied and electrically released to prevent runaway on ramps

TransMotion TMM6 Stretcher-Chair Specifications

Max Patient Weight : 500 lbs / 227 kg
Seat Height – Low (to seat pan) : 20″ / 50 cm
Seat Height – High – “T” Tall (to seat pan) : 36″ / 91 cm
Cushion Height : 3.75″ / 10 cm
Patient Seat Width – “W” Wide : 28″ / 71 cm
Patient Surface Length : 82″ / 208 cm
Overall Width : 34″ / 86 cm
Overall Chair Height – High : 70″ / 178 cm
Overall Chair Height – Low : 54″ / 137 cm
Backrest Articulation : 0 to 80°
Side Rails – Height : 13″ / 33 cm
Side Rails – Length : 26″ / 66 cm
Protective Footrest : 13.1″ / 33 cm
Universal Charger – Input Voltage : 100-120VAC
Charging System – Input Current : 3.5A max
Charging System – Frequency : 50/60 hz
Export “E” : Plug Option Available
Cushion Flammability Rating : TB-117

Manufactured by TransMotion Medical, a division of Winco Manufacturing, LLC
