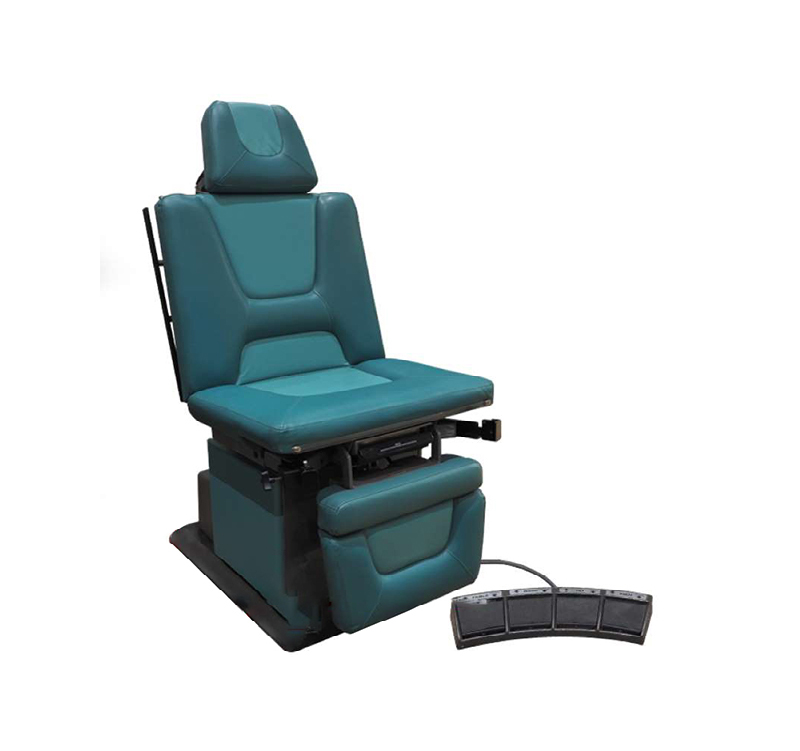

Ritter 75 Special Edition Power Chair
The Ritter 75 Special Edition Power Chair has 4 way power, making this a great multi-functional procedure chair.
Ritter 75 Special Edition Power Chair is suitable for the following Specialties
- Colposcope procedures
- Laser surgery
Ritter 75 Special Edition Power Chair Features
- Back Rest
- Foot Rest
- Tilt or Trendelenburg (45°)
- Maximum Height: 44″
- Maximum Low: 28″
- Can be re-positioned by the attached foot pedal.
- Weight: 450 lbs.
The Ritter 75 Special Edition Power Chair has 4 independent functions, elevation, back, foot and tilt that are re-positioned by the foot pedal attached.
Ritter 75 Special Edition Power Chair Specifications
- Patient Weight Capacity: 300 lbs
- NET Weight
- Fixed Base: 462 lbs
- Rotational Base: 566 lbs
- GROSS Weight
- Fixed base: 517 lbs
- Rotational Base: 621 lbs
- Shipping Dimensions: 58″ L x 31″ W x 42″ H
- Table Top Length: 70″
- Table Top Length (headrest extended): 80″
- Table Top Width: 27″
- Overall Width: 27″
- Table Positioning (Adjustable)
- Standard Base Table Top Height: 26″ to 42″
- Rotational Base Table Top Height: 28-1/2″ to 44-1/2″
- Oil Used In Hydraulic System: light grade medicinal mineral oil
- Hydraulic System
- Oil Capacity: 2.5 quarts
- Motor Pump Reservoir Capacity: 1 quart
- Electrical Requirements
- 115 VAC Model: 115 VAC | 60 Hz | 12 A | single phase
- 230 VAC Model: 230 VAC | 50 – 60 Hz | 6 A | single phase
- Power Consumption
- 115 VAC Model: 960 W
- 230 VAC Model: 960 W
