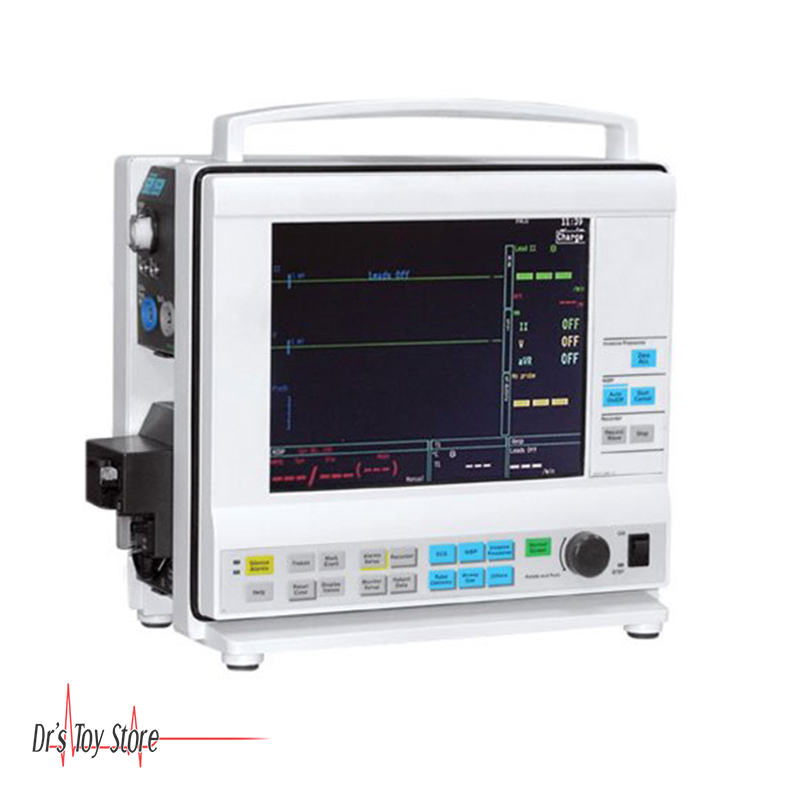

Datex Ohmeda AS/3 Patient Monitor

The Datex Ohmeda AS/3 Patient Monitor consists of a 5 AGENT, ETCO2, ECG, SPO2, NIBP, INV PRESS X 2 and M-CAIO gas module.

Datex Ohmeda AS/3 Patient Monitor Specifications

  • Dimensions: 12-1/2″ W x 16″ D x 5-1/3″ H
  • Weight: 6.4 lbs
  • 10” Color LCD display
  • Rated voltages and frequencies: 110 – 120 V | 60 Hz
  • Allowed voltage fluctuations: 110 V – 10% | 120 V +10%
  • Maximum power consumption: 300 W
  • Graphical trends: all parameters, selectable times: 2, 4, 12 or 24 hours
  • Numerical trends: all parameters sampled every 5 minutes, after NIBP, PCWP and C.O. measurement and with mark event key.
  • Anesthesia alarm system: classified into three categories according to priority in anesthesia; color and audio tone coded. Central alarms display and adjustment page 10-minute graphical mini trends referenced to set alarm limits. Automatic alarm limits function: alarm limits automatically calculated from current parameter reading when selected
  • Display Size: 10.4” Diagonal
  • Display Type: active matrix 8-color LCD
  • Display Resolution: VGA resolution, 640 x 480
  • Number of Traces: up to 6
  • Display layout and colors: user-configurable

Package Includes

  • Power Cord
  • Blood Pressure Cuff
  • EKG Cables
  • Pulse OX Finger Sensor
  • Skin Temperature Probe
