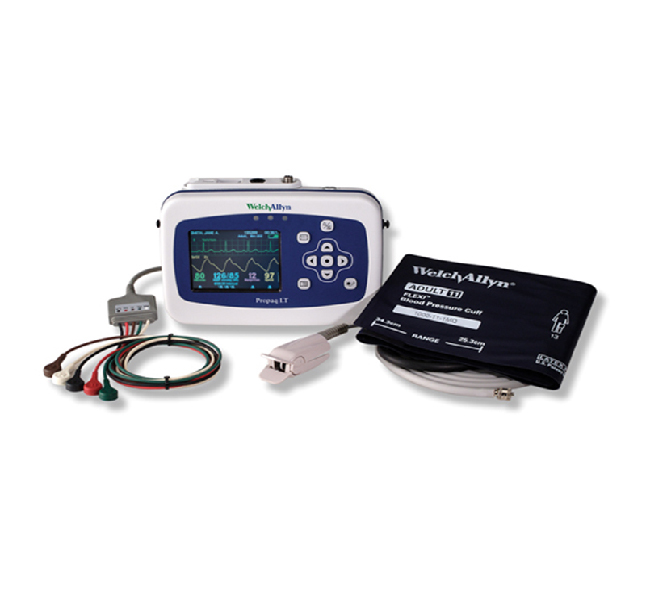

Welch Allyn Propaq LT Monitor

Welch Allyn Propaq LT Monitor

Introducing the Welch Allyn Propaq LT Monitor for sale. The legendary Propaq quality and reliability in a compact, lightweight and easy-to-use monitor. Featuring both continuous and spot check monitoring, the Welch Allyn Propaq LT is ideal for both hospitals and outpatient surgery facilities for simple procedures, pre- and post-operative care and transport.

Welch Allyn Propaq LT Monitor Features

• 3-lead or 5-lead ECG, heart rate
• Masimo SET® or Nellcor® OxiMax® pulse oximetry
• NIBP with Welch Allyn FlexiPort® technology
• Pulse rate
• Respiration
• Continuous monitoring and spot check modes
• Storage of up to 20 full-disclosure data snapshots
• Print 8-1/2” x 11” reports from your PC via USB
• Ability to attach PDF to an electronic medical record from your PC via USB
• 24-hour tabular and graphical trending
• Compact design weighing about two pounds, around the size of a paperback book
• Comprehensive Partnership or Biomed Program Available

Welch Allyn Propaq LT Monitor Benefits

• One integrated device that can spot check or continuously monitor patient vitals
• A lightweight, portable device that can travel with the patient or be moved to a variety of locations throughout the facility
• To print an 8-1/2” x 11” graphical or tabular trend report to show patient data, highlight alarm events, or create a PDF to attach to your electronic medical records
• A durable device with a shock resistance that can withstand a six-foot drop
• Large, easy-to-read color numerics
• Numerous mounting options including wall mount, mobile stand, bedrail and IV pole
• To monitor patients of all ages including adult, pediatric and neonatal

Welch Allyn Propaq LT Monitor Specifications

• Adult, pediatric and neonatal patient modes
• Electrosurgery interference suppression (ESIS): all channels except impedance respiration
• All channels electronically isolated
• Automatic 3- and 5-lead monitoring and cable type detection
• Selectable leads: I, II, III, aVR, aVL, aVF, V
• Lead fault detection and auto-configure
• Bandwidth
  • Adult: 0.5 to 80 Hz monitor mode; 0.05 to 80 Hz extended mode
  • Pediatric/neonate: 0.5 to 80 Hz monitor mode; 0.05 to 80 Hz extended mode
• Hypertronics connector
• Heart rate measurement range: 25 to 300 bpm (display)
• Heart rate accuracy: ± 3 bpm or 3%
• Pacer detection and display
• Electrosurgery and defibrillator protected
• Sweep speed: 25 mm/sec (6.25 mm/sec respiration only)
• User-selectable size (mV/cm): 8, 4, 2, 1, 0.5, 0.2
• QRS tone: high / medium / low / off
• 3.0 sec waveform duration at 25 mm/sec for single waveform; 6.0 sec waveform duration at 25 mm/sec for cascading waveform
• QRS detector range
  • Adult or pediatric mode: 0.22 to 5.0 mV (RTI)
  • Neonatal mode: 0.1 to 5.0 mV
  • Neonatal width: 40 to 120 msec
  • Pediatric width: 40 to 120 msec
  • Adult width: 70 to 120 msec

Different MODEL Numbers

• 802LT0N-0E0 ECG: Respiration, NIBP, Nellcor SpO2 (Requires charging cradle to recharge batteries. Charging cradle sold separately.)
• 802LT0N-UE1 ECG: Respiration, NIBP, Nellcor SpO2, Charging Cradle/USB port
• 802LT0S-0E0 ECG: Respiration, NIBP, Masimo SpO2 (Requires charging cradle to recharge batteries. Charging cradle sold separately.)
• 802LT0S-UE1 ECG: Respiration, NIBP, Masimo SpO2, Charging Cradle/USB port.
