Wallach Zoomscope Colposcope

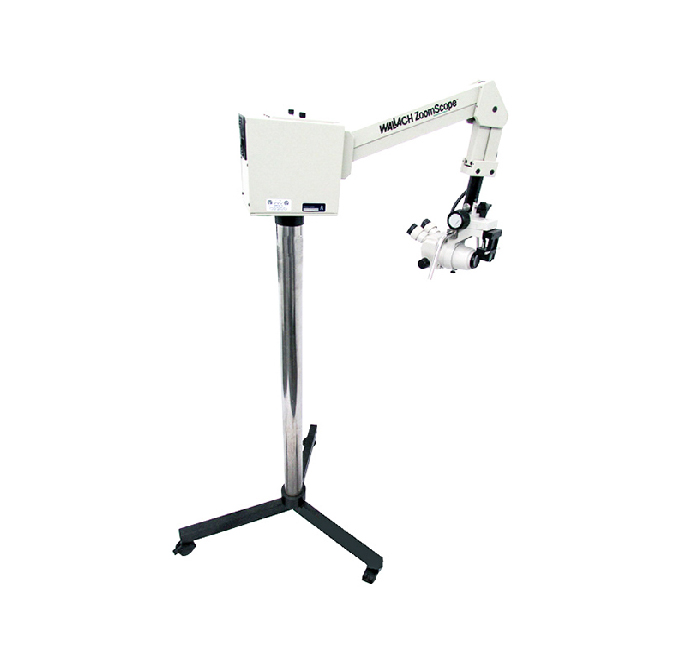

Introducing the Wallach Zoomscope Colposcope.
Wallach’s innovative Trulight™ lighting system incorporates five high-intensity, long-life light emitting diodes (LEDs) positioned around the objective lens for optimal colposcopic examinations.
Precisely angled, the solid-state LED lights converge onto the target offering a brighter, whiter light for true tissue color. The center light is green and can be turned on at the touch of a switch for vascular pattern delineation.
- 5 solid-state bright LEDs
- Lights converge on target
- No need to frequently change a light bulb
Wallach’s unique overhead suspension system places the ZoomScope’s head in any position required. Once in place, it stays put! The suspension is up and out of the way providing unobstructed access to the operative site for performing colposcopically-directed punch biopsy of LLETZ procedures. Add continuous zoom with stereoscopic Nikon optics, delivering 4.5 – 20x zoom, and you have the utmost flexibility and precision available!
Plus the Wallach Zoomscope Colposcope has zoom knobs and horizontal and vertical adjustment on both sides of the optical head.
Zoom series colposcopes provide a continuous, uninterrupted zoomed view from 4x to 20x magnification using high-quality Nikon optics. Tri series colposcopes step through three fixed magnifications of 8x, 13x, and 21x and features a built-in dual optical beamsplitter, which permits attachment of a digital camera and/or a co-observation teaching tube.
Wallach Zoomscope Colposcope Specifications
- Objective lens (working distance): 285 mm
- Total magnification: 4x – 20x
- Field of view: 51.95 mm – 12.12 mm
- Depth of field: 11.2
- Ocular (eyepieces): 20x (field number 12)
- Interpupillary range: 54 mm to 75 mm
- Tilt of viewing head: 60 degrees
- Binocular tube design: Greenbough
- Binocular tube length: 39 mm – 50 mm
- Vessel delineation light: Yes
- Objective type: Achromatic
Scope Stand/Base Specifications
- Maximum height: 63″
- Height of column: 40″
- Overall weight: 61 lbs
- Center of column to center of scope with arm suspended: 20″
- Height of microscope with arm in lowest position: 26-1/2″
- Height of microscope with arm in highest position: 46″
- Fused power input: 2-amps fast flow fuses (2x), 250V, 5 mm x 20 mm
- Power requirements: 100-200/200-240VAC, 50/60Hz, 100VA
- Power cord supplied: 120VAC medical grade
