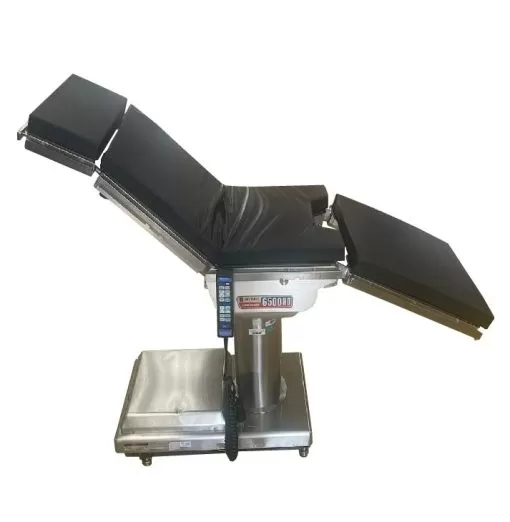

Skytron 6500HD Hercules

Skytron 6500HD Hercules

Uncommon flexibility makes the Skytron 6500 HD general surgical table unequaled for general-purpose surgery. The exclusive 180° rotating top feature of the 6500 HD general surgical table allows unobstructed C-arm and microscope coverage. Additionally, it eliminates conflicts between surgeon and anesthesiologist during head-end procedures and provides ample legroom for surgeons who prefer to sit during procedures.

• Lift and fully articulate patients weighing up to 1000 lbs.
• Length with Headrest is 79 inches.
• The tabletop can rotate 180 degrees.
• Built-in Powered Kidney Bridge.
• Removable powered leg section.
• Self-leveling, four-point brake system.


  Dimensions

  • Length: 65.5” (166.5 cm)
  • Length (with headrest): 79” (201 cm)
  • Width: 20” (50.4 cm)
  • Width (with side rails): 21.75” (54.8 cm)
  • Maximum Permissible Load (lift): 1000 lb (454 kg)
  • Maximum Permissible Load (Articulation): 1000 lb (454 kg)

  Hand Control Adjustments

  • Height: 26” – 47” (65.5 – 118.4 cm)
  • Lateral Tilt (left/right): 30°
  • Trendelenburg/Reverse Trend: 30°/30°
  • Power Kidney Bridge: 5” (12.6 cm)
  • Head Section (up/down) 60°/90°
  • Back (up/down): 90°/40°
  • Leg (up/down): 20°/150°
  • Top Rotation: 180°
  • Flex/reflex: 40°/90°
  • Beach Chair: Available

  Electrical

  • Power Requirements: 120 VAC, 60 HZ 300 watts
  • Current Leakage: Less than 100 microamps
  • Power Cord: 15 Feet with standard duplex connector
