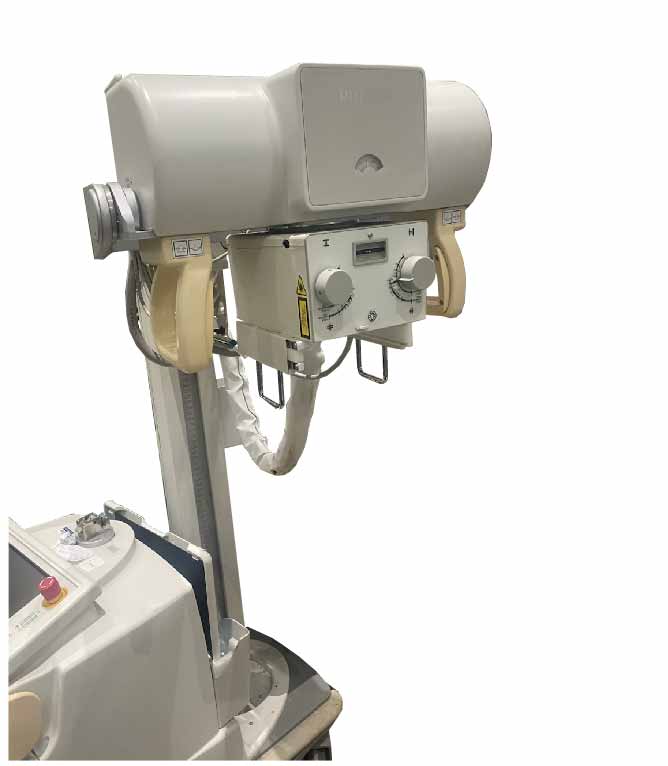

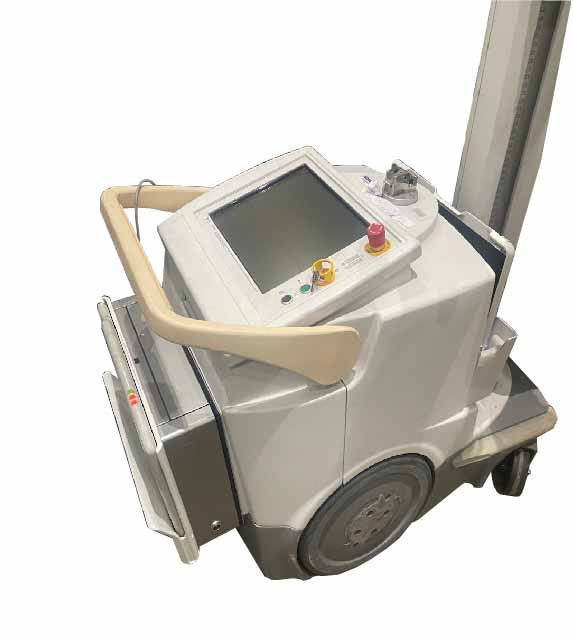

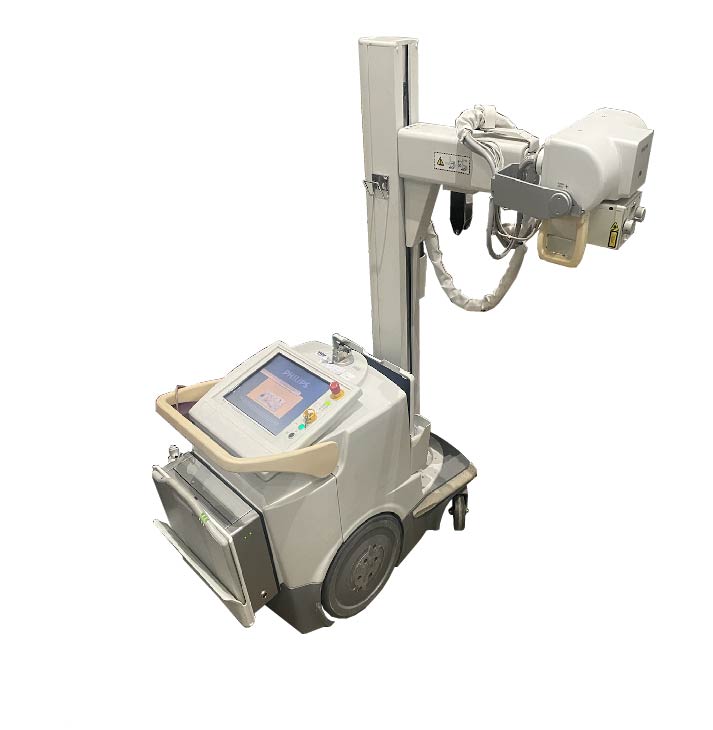

Philips MobileDiagnost wDR Mobile X-Ray Unit
The Philips MobileDiagnost wDR X-Ray offers flexible access to hospital areas, ensuring seamless exams with quick diagnoses. Its robust and wireless design suits busy medical facilities, and the 40kW x-ray generator provides faster exposure times for critical patients, maintaining lower radiation doses with digital radiography.
Specifications
- Dimensions: Approximately 54.3 x 26.4 x 78 inches (long column), 54.3 x 26.4 x 72.8 inches (short column)
- Wheel Base Length: 24.1 inches
- Focal Point Distance (from floor): 21.7 to 79.5 inches (standard column), 21.7 to 74.4 inches (short column)
- Focal Point Distance (to column): 49.2 inches max., 27.5 inches min.
- Tube Column Rotation: +/- 315 degrees
- Charge Power: 230, 220, 110, 100 VAC, 50/60 Hz
- Generator and Tube Power: 20 kW (standard), 40 kW (high performance)
- Tube mA Range: 10 to 320 mA (standard), 10 to 500 mA (high performance)
- Generator and Tube mAs Range: 0.1 to 500 mAs
- Exposure Times: 0.001 to 1.25 seconds, 0.001 to 4 seconds with free cassette
- Focal Spot: 0.3/1.0 (standard), 0.7/1.3 (high performance
- Detector Size: 10 x 12 inches (small), 14 x 17 inches (large)
- Detector Weight: 3.5 lb (small), 6.2 lb (large)
- Active Area: 8.7 x 11.2 inches (small), 13.6 x 16.6 inches (large)
- Image Matrix Size: 1500 x 1920 pixels (small), 2330 x 2846 pixels (large)
- Maximum Patient Weight: 298 lb for distributed load
- Image Storage Capacity: 4,000 images
Features
- 17-inch touch-screen monitor
- Digital Cesium Iodide SkyPlate Portable Detector
- Suited for tight spaces and flexible access to all areas
- Fast diagnoses and excellent image quality
- 7 patient types setup
- Fast procedures
- High chest image contrast
