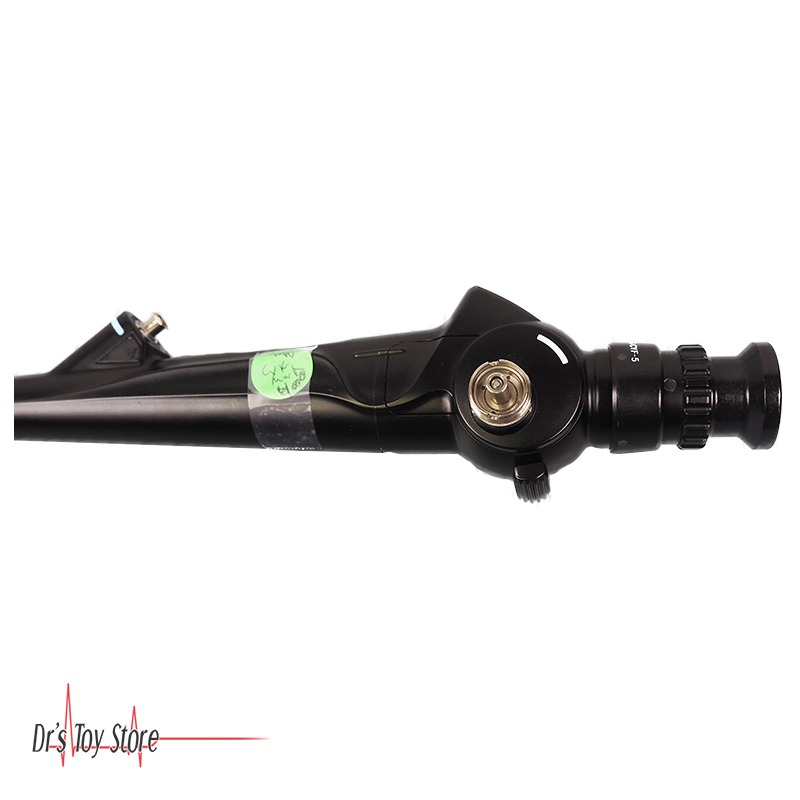

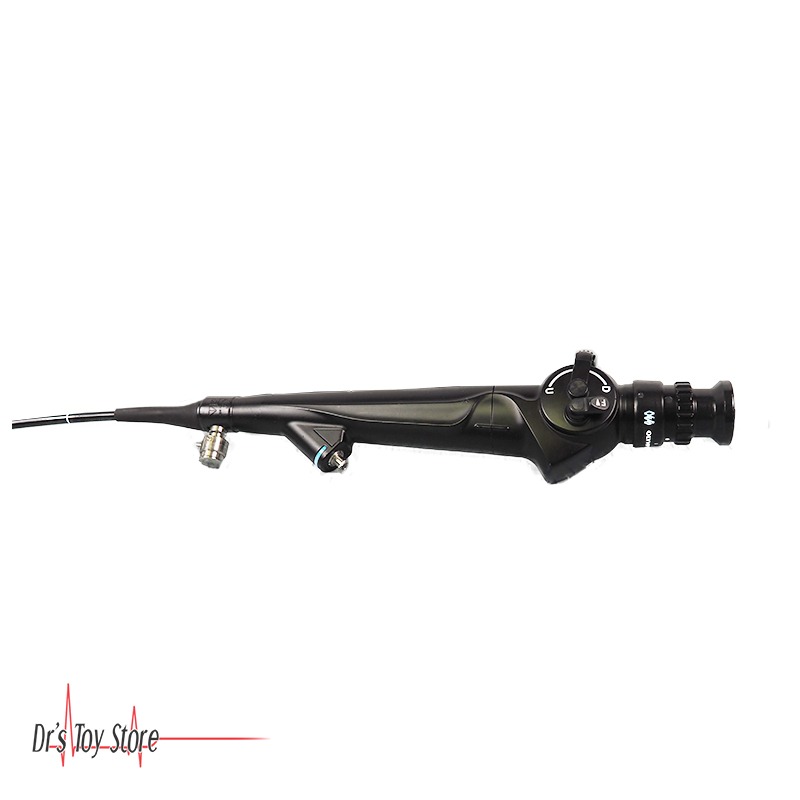

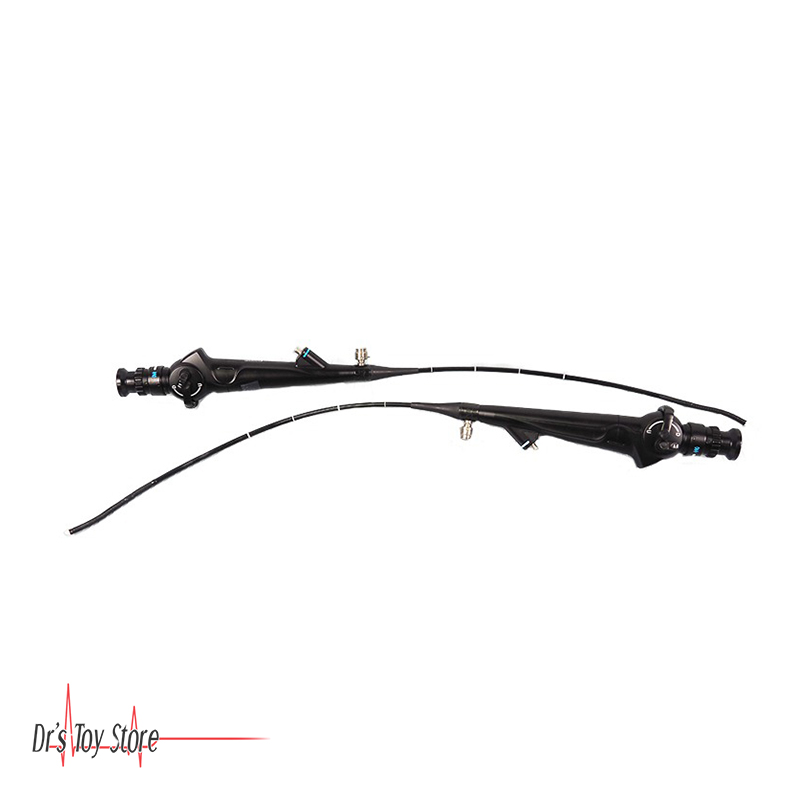

Olympus CYF-5 Cystoscope Fiberscope


SKU: CYF-504 Category: Tags: ,

Olympus CYF-5 Cystoscope Fiberscope

The Olympus CYF-5 Cystoscope Fiberscope delivers high-quality fiber optics in a patient-friendly design. The CYF-5 is both portable and reliable and features the EvolutionTip tapered tip design, a variable stiffness shaft, optimal deflection, and a large field of view.

Olympus CYF-5 Cystoscope Fiberscope Features

  • Portable and reliable: The CYF-5 is specially designed to be used with a conventional tabletop light source or Olympus’ portable miniature light source
  • Improved patient comfort: The unique EvolutionTip allows smooth insertion, improving the patient’s comfort without sacrificing image quality or treatment capabilities. Stiffness is varied to allow the proximal shaft to be stiffer and the mid shaft to be more flexible while the distal end offers passive bending to allow the scope to bend even further
  • 2.4 mm channel: The large 2.4 mm (7.2 Fr) channel allows effective perfusion with 6 Fr instruments
  • Aspiration: One-handed control of the aspiration function makes it easy to keep the field of view clear
  • Ergonomic design: Angulation can be locked, allowing single-handed control of the instrument while maintaining the same view
  • Improved image quality: Newly designed optical system allows for better resolution, especially in the peripheral view
  • Up 210° / down 120° angulation: Easier observation and treatment around the ostium and bladder neck
  • 120° field of view: Both ostium can be observed simultaneously

Olympus CYF-5 Cystoscope Fiberscope Specifications

  • Optical System
    • Field of View: 120°
    • Direction of view: Forward
    • Depth of Field: 3 to 50 mm
  • Insertion Tube
    • Distal End Outer Diameter: 4.6 mm x 2.6 mm
    • Insertion Tube Outer Diameter: 5.5 mm
    • Working Length –  380 mm
  • Instrument Channel
    • Inner Channel Diameter: 2.4 mm
  • Bending Section
    • Angulation Range: Up 210° | Down 120°
  • Total Length: 700 mm

Flexible Cystoscopy

Flexible cystoscopy generally only requires local anesthesia, so it can be an efficient, patient-friendly method for urologists to observe and diagnose bladder abnormalities. Olympus offers flexible cysto-nephro fiberscopes and videoscopes featuring superior imaging and improved maneuverability and control along with slim designs to improve patient comfort.

Olympus CYF-5 Cystoscope Fiberscope is an Evolution in Smoothness with a Refined Tip Design.
