MinXray HF100H+ Portable X-Ray Machine



SKU: MXR-100 Categories: , Tag:

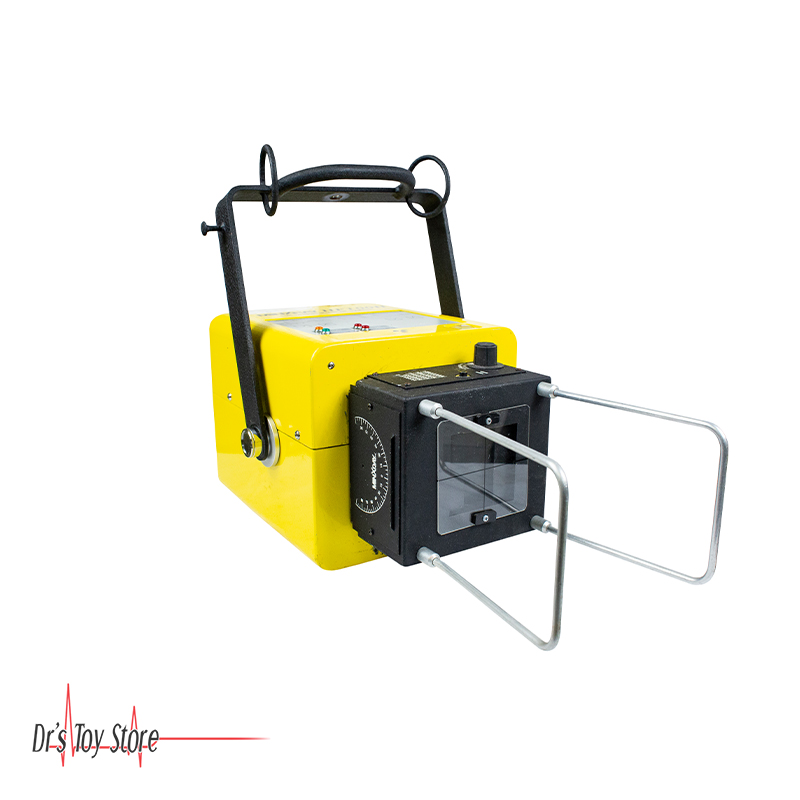

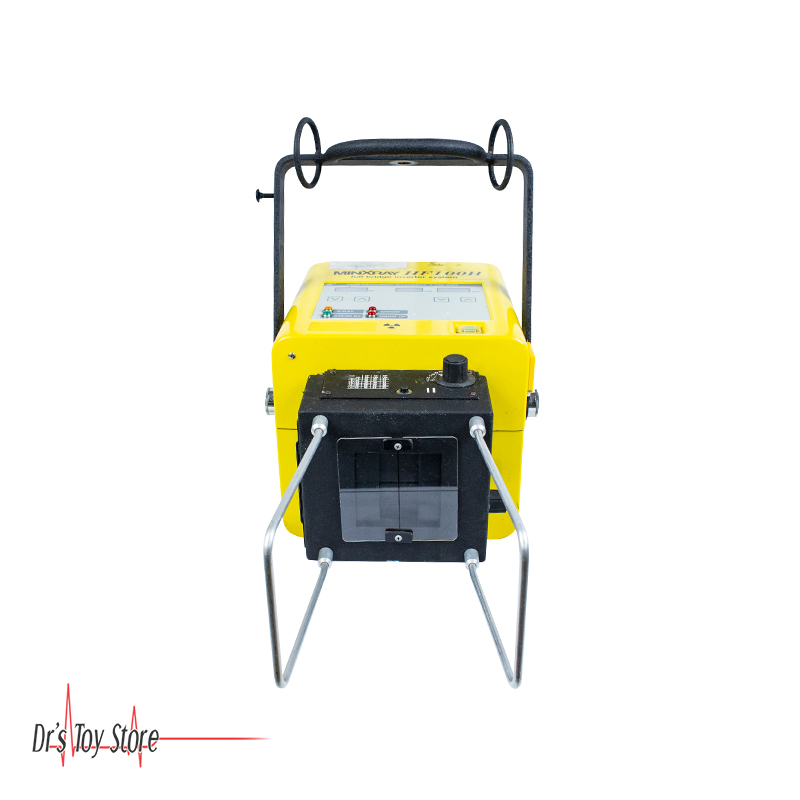

MinXray HF100H Portable X-Ray Machine

Introducing the MinXray HF100H Portable X-Ray Machine for sale. The MinXray HF100H Portable X-Ray defines the industry standard for superior quality imaging, portability and ease of use for any application.
Easily programmed for storage of five different exposure techniques, the MinXray HF100H Portable X-Ray delivers state-of-the-art imaging and dependable performance in even the most rugged conditions.

MinXray HF100H Portable X-Ray Machine Features

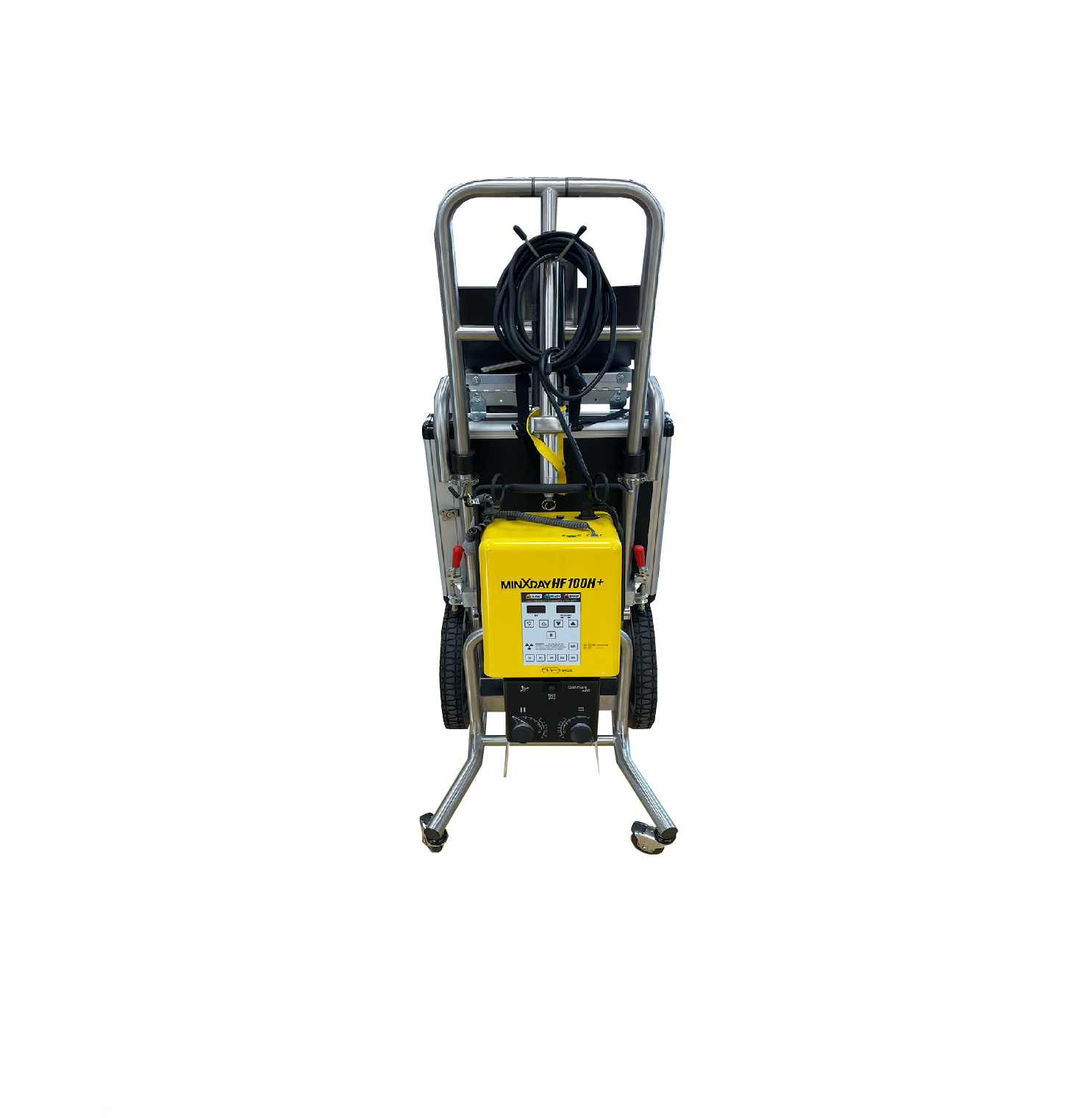

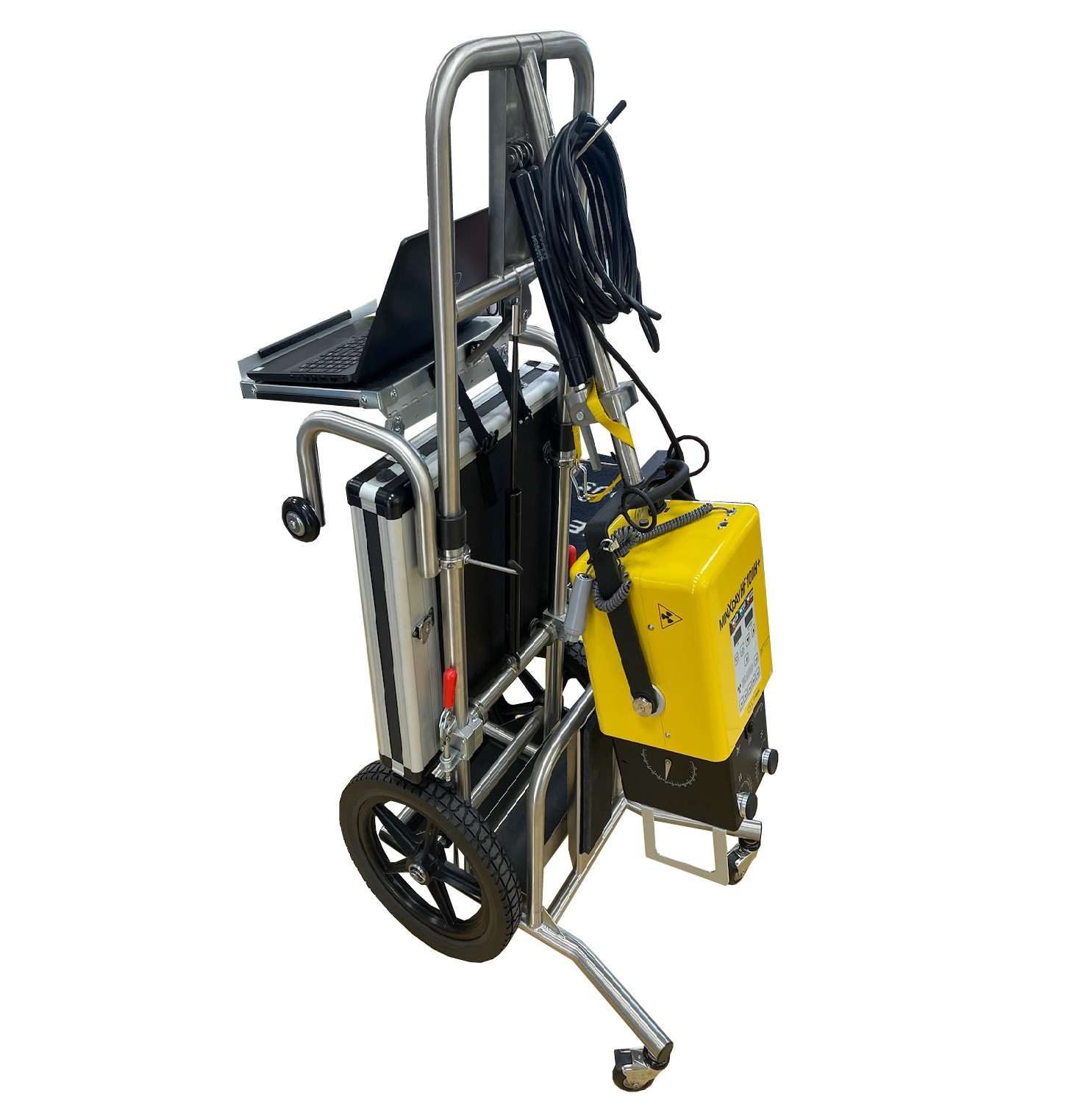

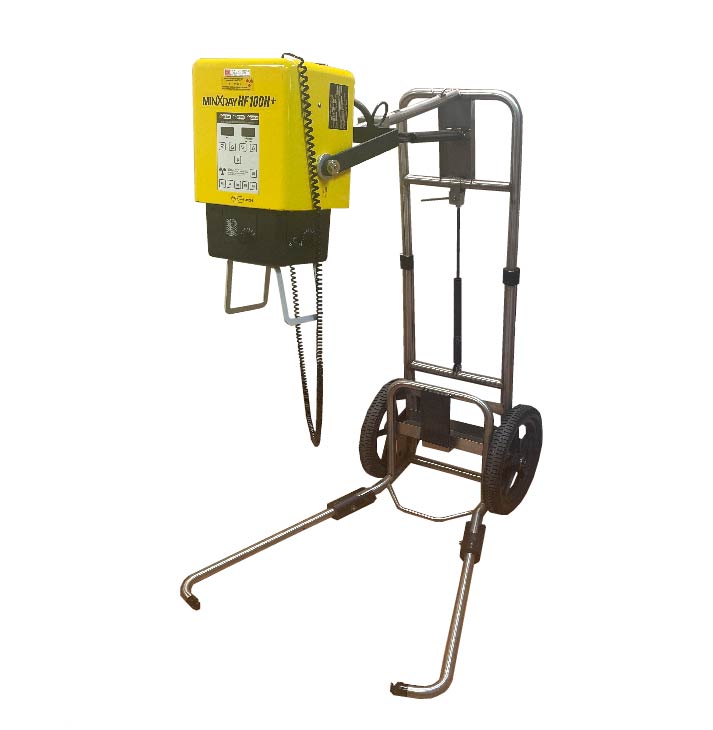

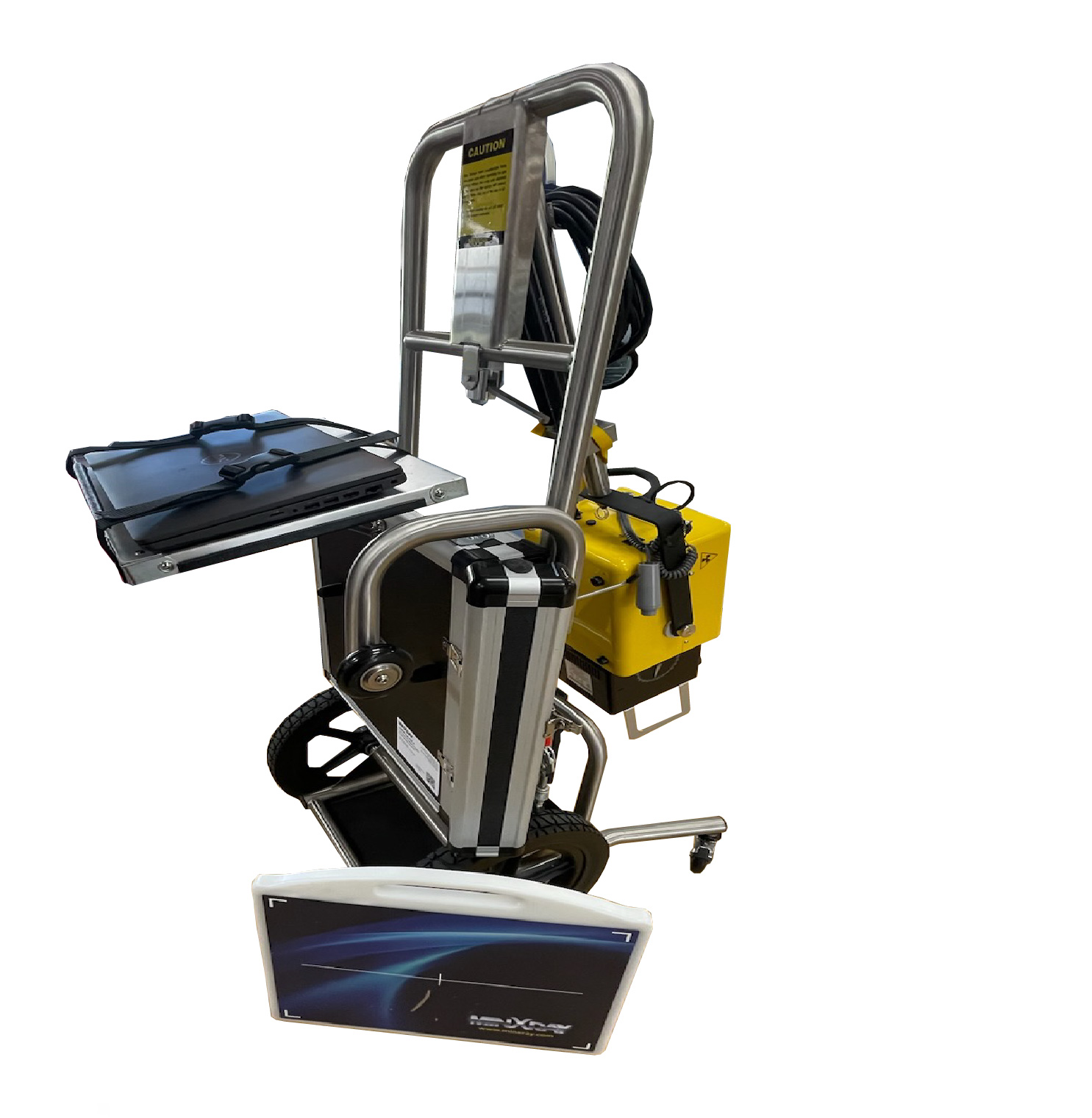

Compact, Lightweight – The MinXray HF100H Portable X-Ray is combined with XGS MKIV stand weighs only 90 lbs

High frequency – full-wave rectified power supply makes maximum use of electrical input; minimizes potentially harmful lower kV X-Rays.

Automatic, dynamic line voltage compensation- ensures repeatable results.

CPU Control – provides for optimum accuracy of output.

(5) memory stations – for storing frequently used x-ray exposure techniques.

MinXray’s full-wave rectified high frequency units are the most efficient portable x-ray generators in the world. Conventional units (self rectified, line frequency) are only about one-third as efficient as these technologically advanced units. Therefore, considerably more radiation output per pound of system weight is available from the MinXray HF100H Portable X-Ray Machine. As an added benefit, the output of these units is independent of line voltage variations, a very important feature for field use.

MinXray HF100H Portable X-Ray Machine Specifications

  • Dimensions: 9-1/2″ W x x 16″ L x 8-3/4″ H
  • Weight: 45.5 lbs (20.5 kg)
    • 30 mA @ 40-60 kVDC
    • 25 mA @ 62-80 kVDC
    • 20 mA @ 82-100 kVDC
  • Timer: Ultra High Resolution 0.03-4.00 sec., 0.01 increments
  • Input Voltage: 100 – 140 VAC or 200 – 260 VAC, specify unit
  • Line Voltage Adjustment: Automatic, dynamic
  • Internal Power Supply: Constant potential, 60 kHz, full-wave rectified
  • X-ray Tube: Toshiba D-124S
  • Focal Spot Size: 1.2 mm
  • Anode Heat Storage: 20 kHU
  • Total Filtration: 4.2 mm Al equivalent
  • Collimator: Continuously adjustable light beam type with central x-ray indicator
  • Exposure Switch: Two stage deadman type
  • Exposure Cord: 8 feet (2.44 meters)
  • Power Cord: 20 feet (6.1 meters)System Weight (HF100H+/XGS MKIV LW Stand): 86.5 lb (39.2 kg
