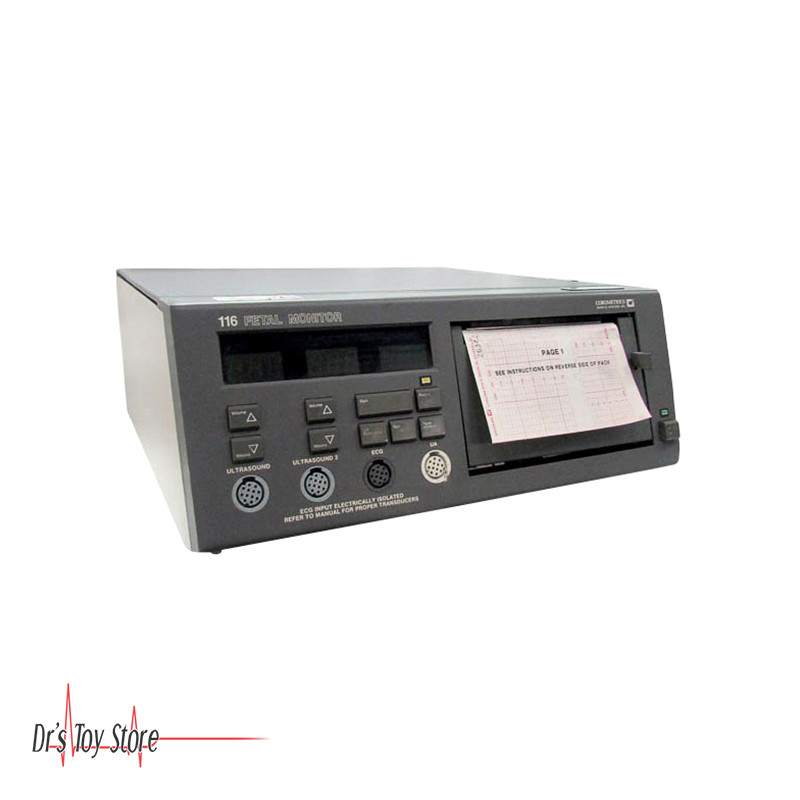

Corometrics 116 Fetal Monitor

The Corometrics 116 Fetal Monitor is a twin-capable unit and comes with the following features:

*One Toco
*Two ultrasound transducers
*Event marker
*Fetal EKG

Corometrics 116 Fetal Monitor features:

*Toco, Ultrasound Transducer and ECG
*Provides simultaneous, noninvasive monitoring of twins as well as internal/eternal monitoring and maternal ECG
*Data storage and transmission

Corometrics 116 Fetal Monitor Specifications:

Physical Characteristics

*Height: 7 inches (17.8 cm)
*Width: 16.5 inches (41.9 cm)
*Depth: 17 inches (43.2 cm)
*Weight: Approximately 34 lbs (15.5 kg)

Power Requirements

*Voltage: 100/120/220/240 VAC selectable
*Frequency: 50/60 Hz
*Power Consumption: 100 Watts max

Direct ECG

*Technique: Peak detecting beat-to-beat cardiotachometer.
*Heart Rate Counting Range: 30-240 BPM
*Heart Rate Resolution: ± 1 BPM
*Artifact Elimination: Switch selectable ± 25 BPM artifact rejection
*Input Signal Range Differential:
– 15 µV to 2 mV peak-to-peak (fetal)
– 100 µV to 2 mV peak-to-peak (maternal)
*Common Mode: 20 VDC (max)
*Preamplifier Bandwidth: 1.0 Hz to 100 Hz
*Common Mode Rejection: >120 dB balance
*With Patient Cable: 110 dB 5k RA or LA unbalance
*Input Equivalent Noise: >10 µV peak-to-peak

*Input Impedence:
– Differential mode: >10 MΩ
– Common Mode: >20 MΩ
*Main Frequency Rejection: >40 dB
*Leakage Current: >10 µA at 120 VAC
*Isolation Mains to Patient Connection: >2 kV
*Leg Plate Tester: Simulated r-wave at 120 ± 1 BPM


*Technique: Pulsed doppler with autocorrelation processing
*Pulse Repetition Frequency:
– 4kHz in single ultrasound mode
– 2kHz in dual ultrasound mode

*Pulse Duration: 92 µs
*Center Frequency: 1.151 MHz
*Intensity: < 10 mW/cm2
*Heart Rate Counting Range: 50-210 BPM
*Leakage Current: < 10 µA at 120 VAC


*Range: 0-100 mmHg
*Tocotransducer: 0-100 relative units (0-120 grams)
*Excitation Voltage: +4.0 VDC
*Resolution: 1 mmHg

– Tocotransducer DC to 0.5 Hz
– Strain gauge DC to 3 Hz
*Zero Temperature Drift: *Leakage Current: < 10 µA at 120 VAC (transducer isolated)


*Uterine Activity:
– Chart Width: 4 cm
– Scaling: 25 mmHg/cm (3.33 kPa/cm)
– Range: 0-100 mmHg
– Resolution: 1 mmHg

*Chart Drive:
– Speeds: 1, 2 and 3 cm/min – Accuracy: ± 1%

*Heart Rate Scale – Domestic:
– Chart Width: 7 cm
– Scaling: 30 BPM/cm
– Range: 30-240 BPM
– Resolution: 1 BPM

*Heart Rate Scale – International:
– Chart Width: 8 cm
– Scaling: 20 BPM/cm
– Range: 50-210 BPM
– Resolution: 1 BPM
