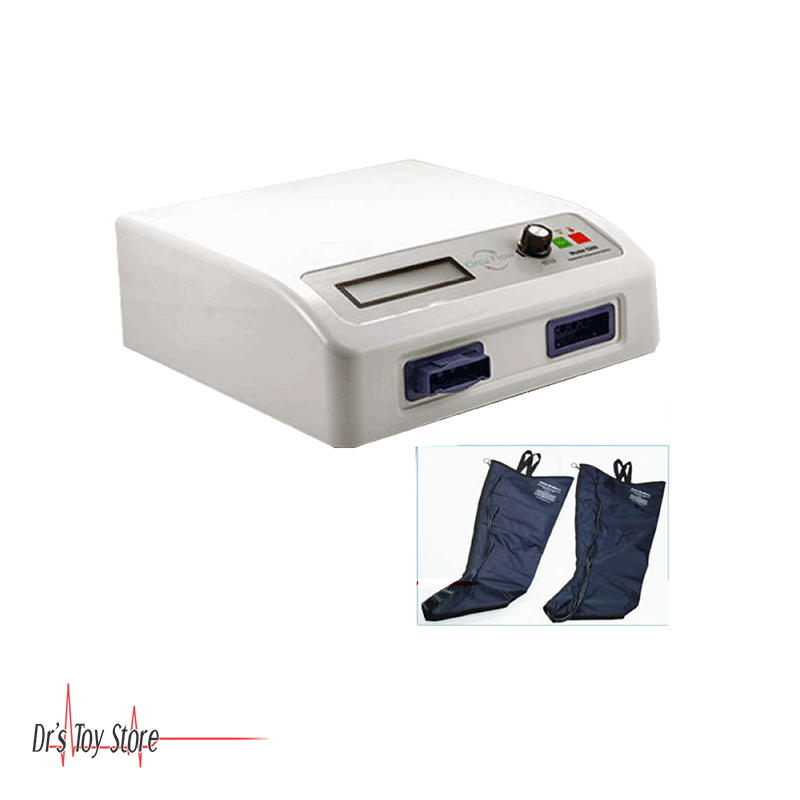

CircuFlow 5200 Multi Chamber Compression Pump


Out of stock

SKU: CFM-642 Category:

CircuFlow 5200 Multi Chamber Compression Pump with 2 Mode Selections

CircuFlow 5200 Intermittent Pneumatic Compression Pump is a Multi Chamber Gradient Compression Pump used for lymphedema and venous disorders. Rhe CircuFlow 5200 Gradient Compression Pump can treat both lower and upper extremities. The DEVON CircuFlow 5200 Compression Pump is used in the comfort of your own home to get the same Compression Therapy treatment most patients can only find in hospitals or other medical facilities. Equipped with a 4″ x 1″ digital LCD screen, the CircuFlow 5200 Pump allows users to see real-time pressure readings for each individual chamber. The CircuFlow 5200 Intermittent Compression Pump  operates in two separate modes–1) a gradient mode that provides maximum pressure and pressure gradient and 2) a pressure mode that allows the patient or caregiver to set each chamber’s pressure individually. Compression Therapy patients can adjust the pressure from 25 to 120 mmHg. The CircuFlow 5200 allows patients to adjust or skip individual chamber pressures. The compression therapy patient can also adjust the cycle times, distal to proximal; 20 to 80 seconds on the CircuFlow 5200.

DEVON CircuFlow 5200 Intermittent Gradient Compression Pump Multi Chamber Components

  • CircuFlow 5200 Pump.
  • Owners manual
  • Compression sleeves included


DEVON CircuFlow 5200 Intermittent Gradient Compression Pump Multi Chamber Features & Benefits.

  • 4 chamber garment operation.
  • Select between two modes of operation–Gradient Mode or Pressure Mode.
  • Treats chronic venous and lymphatic disorders.
  • Increased blood flow and provides extracellular fluid clearances..
  • Skip chamber function allows setting the pump to prevent pressure to a select garment chamber.
  • Customizable pressure settings of 25 to 120 mmHg.
  • Customizable cycle times of 20 to 80 seconds, distal to proximal.
  • Settings lock prevents accidental changes to settings.


DEVON CircuFlow 5200 Intermittent Gradient Compression Pump Multi Chamber Specifications

  • DEVON CircuFlow Intermittent Pneumatic Compression Pump Multi Chamber Product Number: 5200.
  • Width: 11.5”
  • Height: 4”
  • Depth: 10”
  • Weight: 12 lbs.
  • Operation Mode: Continuous Operation with Intermittent Gradient
  • Inflation Cycle: Adjustable 5 – 20 seconds per chamber
  • Deflation Cycle: 12 seconds
  • Cycle Time: Adjustable 20 – 80 seconds
  • Therapy Time: Adjustable 15 – 180 minutes
  • End Therapy Vacuum Time: 60 seconds
  • Electrical: 120VAC, 60Hz, 100VA MAX
  • Fuse Rated: 250VAC, 1.0AMP, SLO-BLO
