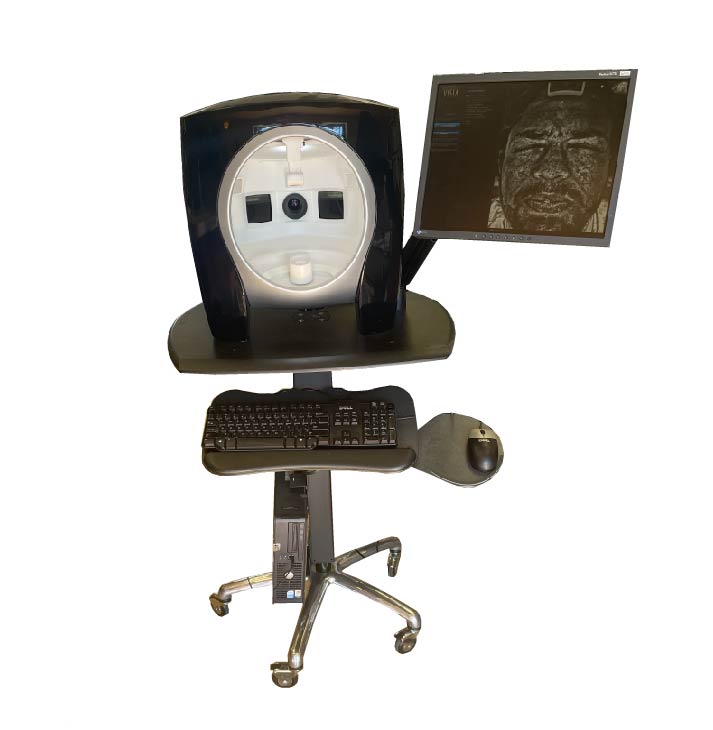

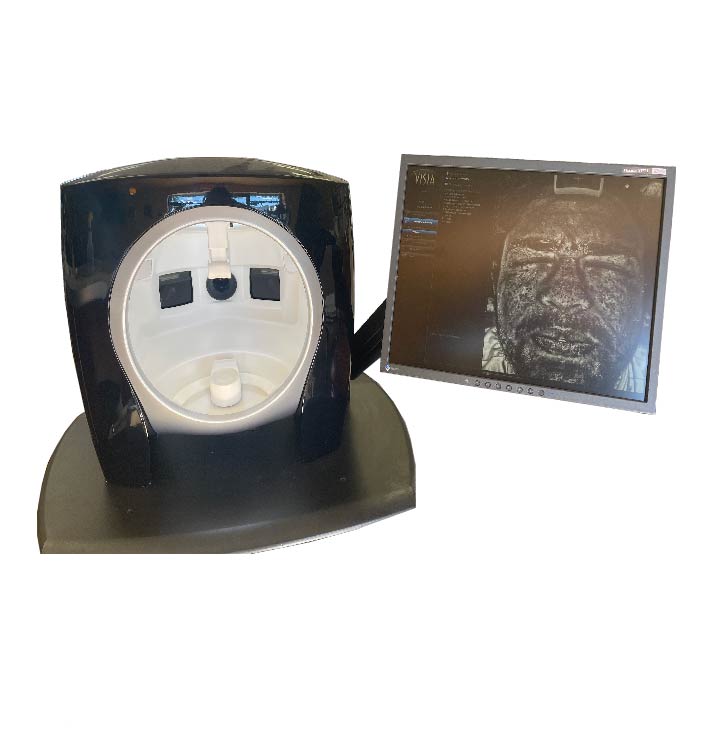

Canfield Visia Skin Facial Imaging System



Canfield Visia Skin Facial Imaging System

Canfield Visia Skin Facial Imaging System provides quantitative assessment of skin features. Measure spots, pores, wrinkles, evenness, porphyrins, UV spots and photo-damage. Grading of skin relative to peer group. Compare a female or male patient’s skin features to other individuals of the same age and skin type

Reproducible facial photography – Ensure reproducibility of images between time points built-in positioning aids and standardized lighting

Multi-spectral imaging – Uses standard white light, cross-polarized flash and UV photography to record and measure surface and subsurface skin condition

RBX™ Technology – The new RBX Technology from Canfield provides extraordinary new visualization and analysis of sub-surface melanin and vascular conditions.

3D Viewing – Visualize the skin’s surface in three dimensions from any angle, rendered in natural skin tone, color relief or gray scale.

Customized reports – Provide patients with easy-to understand, customized reports including recommendations for treatment and skin care

Integration with Mirror® medical imaging software – Harness the power of Mirror to get even more out of your VISIA images

Notes builder – Increase quality in providing treatment recommendations while saving time with predefined, customizable patient notes and treatment plans

Loupe tool – Instantly zoom in and magnify image areas for close examination of a specific skin characteristic

Multiple database options – Organize patients as needed, such as by physician or separate clinical studies

Image export – Easily transfer images from VISIA to MS PowerPoint,Word or other programs for use in presentations, publications and more

User-friendly interface – VISIA’s attractive, intuitive interface gets staff members up to speed quickly

Networking option available – With the available networking option, access images and conduct consultations on networked PC workstations, other VISIA systems or centralized databases

Canfield Visia Skin Facial Imaging System Specifications

  • Automatic focus
  • Automated white balance correction
  • Facial positions: Left 37°, Center 0°, Right 37°
  • Headrest: Adjustable vertically three positions
  • Chinrest Height: 8.8 in (22.3 cm) from table
  • Headrest Height: 16 in (40.6 cm) from table
  • Multi-spectral Imaging
    • Standard light IntelliFlash
    • Cross Polarized flash
    • Ultraviolet lighting
  • Centered Size: 13 x 14.2 x 20.9 in (32.9 x 36 x 53.1 cm)
  • Total footprint with 3 position swing: 15 x 22.9 x 20.9 in (38.1 x 58.2 x 53.1 cm)
  • Weight: 31 lbs. (14 kg)

VISIA Computer / Workstation Requirements

  • 8 GB RAM
  • 2.2 GHz or faster processor, Intel i5
  • Minimum 10 GB available disk space for installing application
  • 250 GB available disk space recommended for data
  • Monitor: 1280 x 900 (4K monitors supported at maximum 150% magnification)
  • USB Ports: 2 dedicated ports (USB 2.0)
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • Windows 7 SP 1 (Professional or Ultimate – 64 Bit)
  • Windows 8.1 (Professional 64 Bit)
  • Windows 10 (Professional 64 Bit) – Recommended
  • Windows Home Edition & Windows VISTA – NOT SUPPORTED
  • Internet Explorer 11


  • Voltage: 100 to 240 Volts AC (+/- 10%)
  • Frequency: 50/60 Hz (+/- 3 Hz)
  • Current: 3 A (rms)

The serial number is located next to the USB port on the rear panel.
