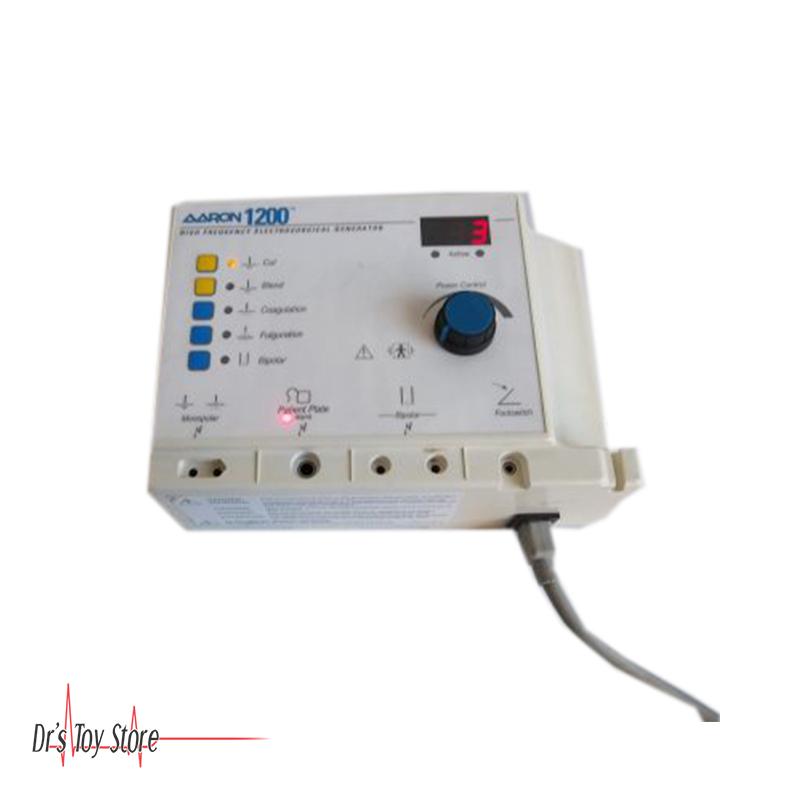

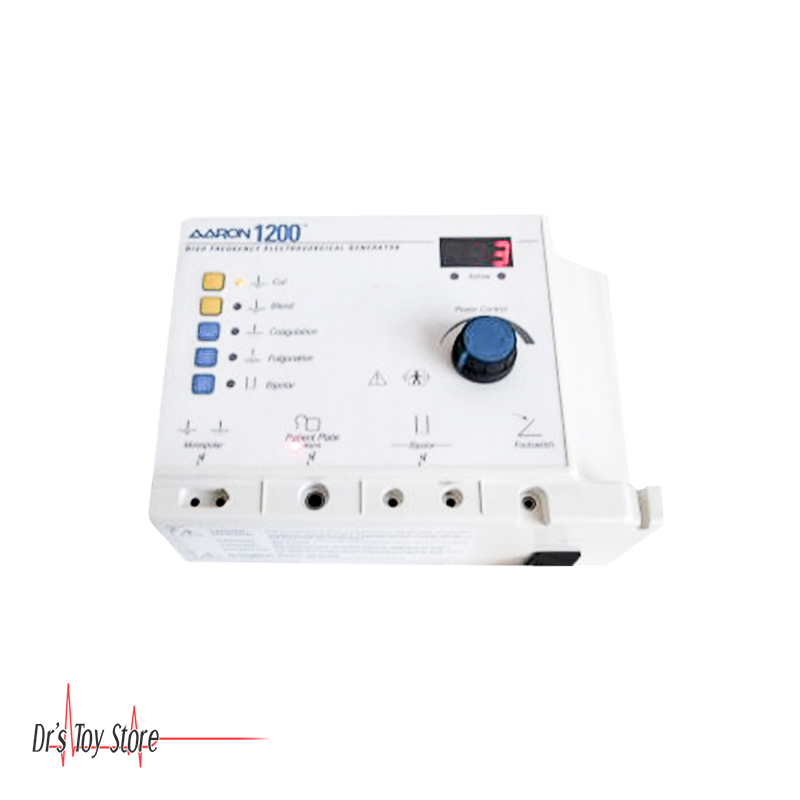

Bovie Aaron 1200 ESU
Introducing the Bovie Aaron 1200 ESU is the first High-Frequency Desiccator with Cut. You might call it a split personality. One half of the unit is a high-frequency desiccator, out of the mold of our very popular Bovie Aaron 900. The other half is a Bovie Generator, giving you 60 watts of cutting power and coag capabilities – plenty of power for LLETZ/LEEP or most any cutting procedure performed in the doctor’s office. Simplicity is achieved using easy-touch, color-coded membrane pads, and by placing all user controls and outputs on the unit’s compact front panel. The ergonomic arrangement of commonly used operating functions, plus a large, comfortable rotary dial, provide quick operating-mode selections and smooth power adjusting with the option of adjusting the handpiece power.
Bovie Aaron 1200 ESU Features
The three-button pencil is a masterpiece of engineering. It allows you to adjust the power output up and down as well as to activate the unit, even when you are in foot control mode!
Designed For Years of Trouble-Free Use
The Aaron Bovie 1200 is designed and engineered to be the most reliable and durable generator available today. The unit’s life is prolonged by incorporating the latest in chip technology and reducing the number of internal parts, thereby generating less internal heat. Unit cleanup is simplified by its non-absorbing, nonstaining, high-impact ABS enclosure.
The left half of the unit is a Bovie generator. It is a floating ground unit that requires a return electrode pad to be used. This isolated power feature helps to ensure your safety as well as that of the patient.
Simplicity is achieved using easy-touch, color-coded membrane pads, and by placing all user controls and outputs on the unit’s compact front panel. The ergonomic arrangement of commonly used operating functions, plus a large, comfortable rotary dial, provide quick operating-mode selections and smooth power adjusting with the option of adjusting the hand piece power.
Digital Error Detection
Digital error detection means unsurpassed safety for you and your patient. The Bovie Aaron 1200 continuously monitors every aspect of the unit’s output. At the sign of any problem, the machine instantly disables the output and displays the appropriate error code on the display.
The six available presets labeled “A-F” allow the user to record often used settings for one touch recall. Each preset stores the mode selection and power setting for one operating mode.
Three Modes of Operation
The Bovie Generator offers you up to 60 watts in Cut mode, Blended Cut mode, and Pinpoint Coagulation mode.
Bovie Aaron 1200 ESU Specifications
- MONOPOLAR SYSTEM
- Procedure: Cut (blend), coagulate
- Energy output: Max 150 W
- Voltage (vp-p): Max 2 kV
- BIPOLAR SYSTEM
- Procedure: Coagulate
- Energy output: Max 50 W
- Voltage (vp-p): Max 2kV
- Mounting: Wall
- DIMENSIONS: 10″ W x 3 3/4″ D x 7″ H
- WEIGHT: 7.3 lbs
- GENERATOR: Solid-state
- FREQUENCY: 350-850 kHz
- POWER SOURCE: 117 – 220 V
- COOLING SYSTEM: Convection
- Visual Signals: Yes
- Audio Signals: Yes
- Volume control: Yes
- Footswitch: Yes
