Wells Johnson Aspirator III with Accessories

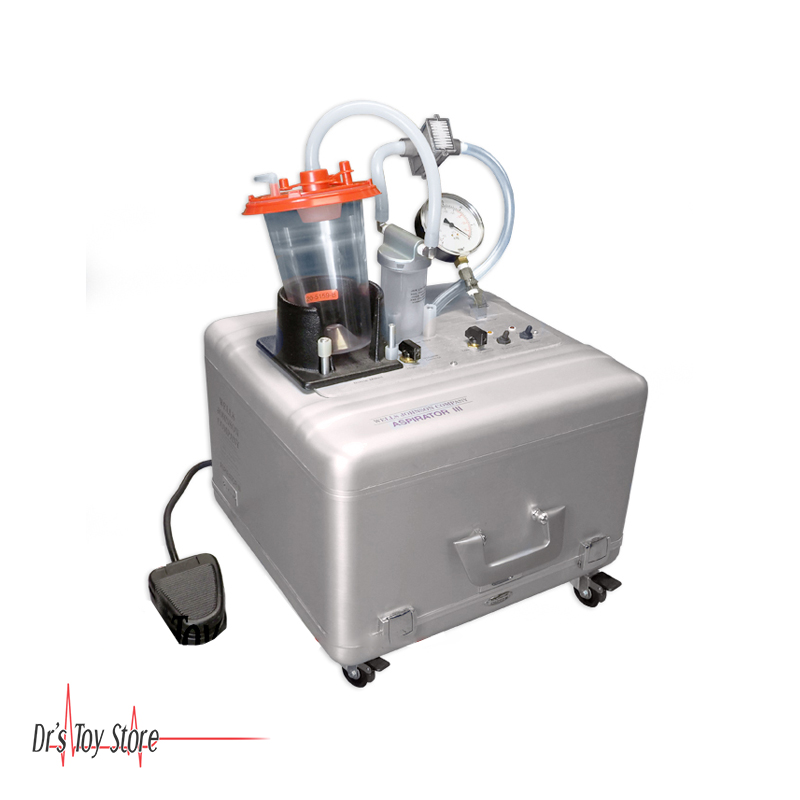

Wells Johnson Aspirator III Suction Pump with Accessories

The Wells Johnson Aspirator III Suction Pump, in a smooth gray casing and manufactured in dent-free, scratch-resistant polymer plastic, has had its interior redesigned with simplicity in mind.

Powered by dual-synchronized piston pumps and surrounded by a special 2″ sound-absorbing foam, the Wells Johnson Aspirator III aspirator delivers time-saving performance without being heard. It’s truly the quietest aspirator Wells Johnson has ever manufactured.

When you choose the Wells Johnson aspirator, you’ll receive superior quality throughout, with all-brass fittings and pre-tested high-pressure tubing, exceeding all industry requirements and ensuring reliability for years to come.

The Wells Johnson aspirator is a high-powered suction system with two oil-less piston vacuum pumps. The system is designed to pull a vacuum on any closed container or any open process system. Vacuum is accomplished by mounting the vacuum pumps in parallel.

When the Wells Johnson Aspirator III Suction Pump is connected, the air flow will be from the tip of the cannula through the tubing, collection system, overflow trap, bacterial filter and finally to the pumps evacuate the air from the lines. This creates a vacuum that pulls aspirated material in the same direction as the airflow.

Aspirated material continues flowing to the collection system under normal suction until the cannula is exposed to air again.

Wells Johnson Aspirator III Specifications

  • Weight: 64 lbs
  • Horsepower: 2/3 HP
  • Number of pumps: 2
  • Pump Type: 2 cylinder piston
  • Sound Level: 50 db @ 6 ft
  • Dimensions: 17 1/2″ x 18 1/2″ x 19 3/4″
  • Maximum Vacuum: 29+ in/Hg
  • Maximum Flow Rate: 6.5 cubic feet per minute

Additional information

Weight 15 lbs
