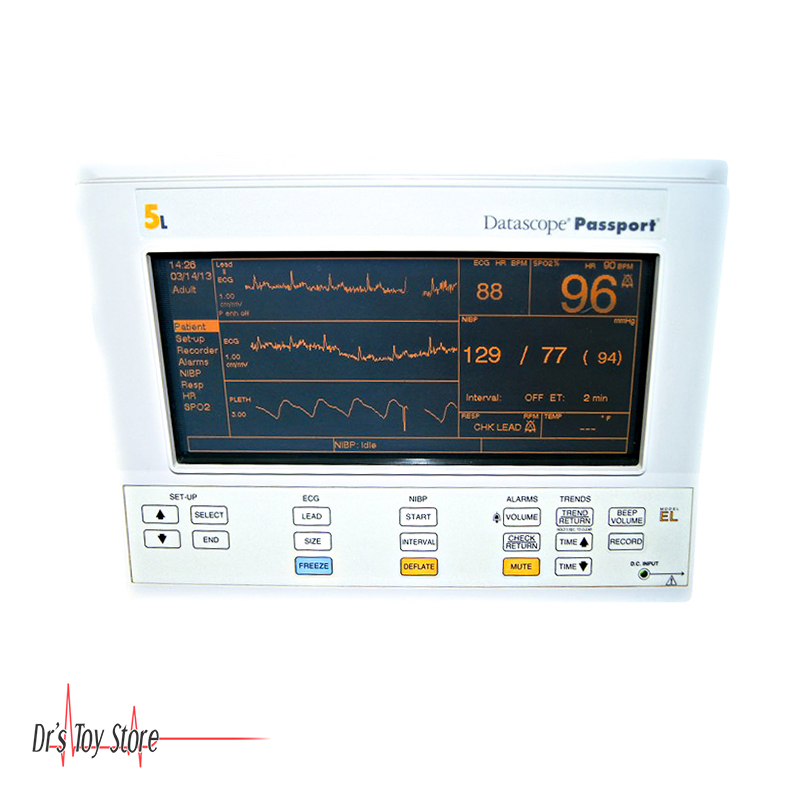

Datascope Passport EL Patient Monitor

CALL FOR PRICE

SKU: DPE-056 Category:

Datascope Passport EL Patient Monitor

Designed for surgery, bedside and transport applications. The Datascope Passport EL Patient Monitor has a 36-square inch electro luminescent screen to ensure optimal visibility from virtually any angle. The Passport EL also has list trend capabilities providing up to 120 measurements and rapid review of patient data and simplified record keeping. The Passport EL features ECG, NIBP, INVASIVE BP, pulse oximetry, respiration, temp and recorder. The Passport’s easy-to-understand menu and single dedicated function keys make it fast and easy-to-use. The Passport can also be configured with optional mainstream end-tidal CO2. Lightweight and portable, the Mindray Datascope Passport EL Patient Monitor is a perfect device for multi-parameter monitoring needs.

Mindray Datascope Passport EL Patient Monitor Features

  • Large, easy-to-read electro luminescent display provides up to three waveforms.
  • Light weight and portable.
  • Fast and easy-to-use.
  • Patient cables included for NIBP, SPO2, and ECG
  • Built-in Printer/recorder
  • Compact bedside and transport use for maximum monitoring flexibility
  • Adult to neonatal capability with respiration
  • Fast response CO2 sensor verifies intubation and allows clinical assessment of ventilation
  • Single function keys for ease of use
  • List trend of up to 120 measurements to aid record keeping and easy review of patient data
  • Alarm status is instant and simple
  • Unique replaceable cartridge makes software enhancements fast and easy

Datascope Passport EL Patient Monitor Specifications

  • Dimensions: 13″ W x 8″ L  x 9-1/2″ H
  • Weight: 13 lbs
  • Power consumption: 15 W typical
  • Voltage input: 100 V, 120 V, 220 V, 240 V ±10%
  • Main frequency: from 47 Hz to 65 Hz
  • ECG Leads: I, II, III
  • Display sensitivity: 0.25, 0.5, 1.0, 2.0, 3.0, 4.0 cm/mV ±10%
  • Frequency response to screen
    • ESU filter out: 0.5 to 40 Hz, -3 dB max @ 1 mVpp input
    • ESU filter in: 0.5 to 20 Hz, -3 dB max @ 1 mVpp input
  • Heart Rate Meter Range
    • Adult / Child: 30 – 300 bpm
    • Neonatal: 30 – 350 bpm
  • Heart Rate Meter Accuracy: 30 – 250 bpm ±3 bpm or 3% whichever is greater
  • Display update: 2 seconds
  • NIBP
  • Technique: Oscillometric
  • Systolic range
    • Adult/Ped mode: 50 – 250 mmHg
    • Neonate mode: 15 – 150 mmHg
  • Diastolic range Adult/Ped mode: 30 – 200 mmHg
  • Systolic accuracy: mean error less than 7 mmHg, standard deviation less than 8 mmHg (adult/pediatric)
