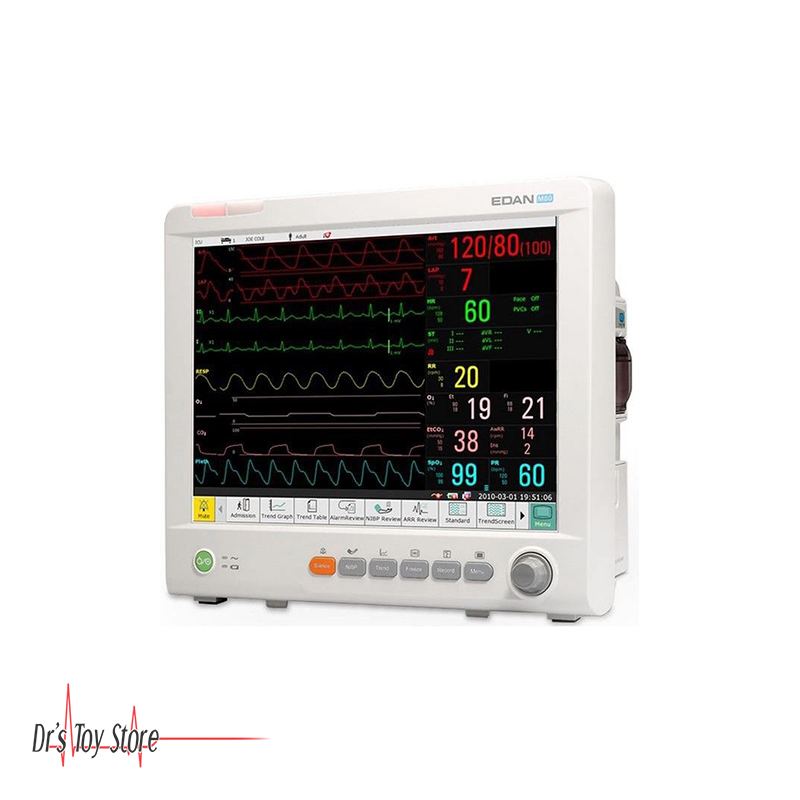

EDAN M80 Patient Monitor

SKU: EMP-800 Category: Tag:

EDAN M80 Patient Monitor

Introducing the EDAN M80 Patient Monitor for sale.

EDAN M80 Patient Monitor Features

  • 15” high-resolution color TFT display with maximum 13 waveforms
  • Full touch-screen enables intuitive operation by clicking on the specific parameters or the waveform in real time, the standard configuration includes the navigation knob
  • Pacemaker detection, electrosurgical interference proof
  • Defibrillation protection and defibrillation synchronization
  • SD card slot enables memory extension for large data storage
  • USB and serial ports allow for several future upgrades
  • VGA output and Analog output
  • OxyCRG available to judge the respiration and circulation function for neonates
  • Large font display
  • Arrhythmia and S-T segment analysis
  • Built-in rechargeable Li-ion (up to 6 hours)
  • Nurse Call function and bi-directional communication with MFM-CMS central station

EDAN M80 Patient Monitor Specifications

  • Dimensions: 14-1/2″ L x 7″ W x 12-1/2″ H
  • Weight: 15.4 lbs
  • DISPLAY
  • Type: Color TFT LCD
  • Size: 15″ / Optional Touch Screen
  • Traces: up to 8
  • Waveforms: up to 13
  • Sweep Speed: 6.25, 12.5, 25, 50 mm/s
  • ECG
  • Lead Type: 5-lead and 3-lead
  • Gain: Auto, x 0.125, x 0.25, x 0.5, x 1, x 2
  • Sweep Speed: 6.25, 12.5, 25, 50 mm/s
  • ECG HR Range
    • Adult: 15 ~ 300 bpm
    • Pediatric/Neonate: 15 ~ 350 bpm
  • Resolution: 1 bpm
  • Filter
    • Diagnostic Mode: 0.05 ~ 150 Hz
    • Monitoring Mode: 0.5 ~ 40 Hz
    • Surgical Mode: 1 ~ 20 Hz
  • ST Segment Detection
    • Measurement Range: -2.0 mV ~ 2.0 mV
    • Alarm Range: -2.0 mV ~ 2.0 mV
  • RESPIRATION
  • Method: Trans-thoracic impedance
  • Operation Mode: Auto / Manual
  • RR Measurement Range
    • Adult: 0 ~ 120 rpm
    • Neonate / Pediatric: 0 ~ 150 rpm
  • Resolution: 1 rpm
  • Apnea Alarm Threshold: 10, 15, 20, 25, 30, 35, 40 second
  • Band Width: 0.2-2.5 Hz
  • Sweep Speed: 6.25, 12.5, 25, 50 mm/s

Configuration

  • Standard
    • 5-lead ECG, NIBP, EDAN SpO2, RESP, 2-Temp, PR
  • Optional
    • 12-lead ECG, Nellcor-SpO2, 2-IBP/ 4-IBP, CO2 Mainstream / Sidestream, Multi-gas, CO Full Touch-screen, Thermal Recorder, WLAN Accessory

About Edan

Edan is a healthcare company dedicated to improving the human condition around the world by delivering value-driven, innovative and high-quality medical products and services. Healthcare professionals around the world depend on Edan’s breakthrough medical technologies and outstanding customer support. For over 20 years, Edan has been pioneering a comprehensive line of medical solutions that address a broad range of healthcare practices including:

  • Diagnostic ECG
  • Ultrasound imaging
  • In-Vitro Diagnostics
  • Patient Monitoring
  • Point-of-Care Testing
  • Veterinary
  • OB/GYN
