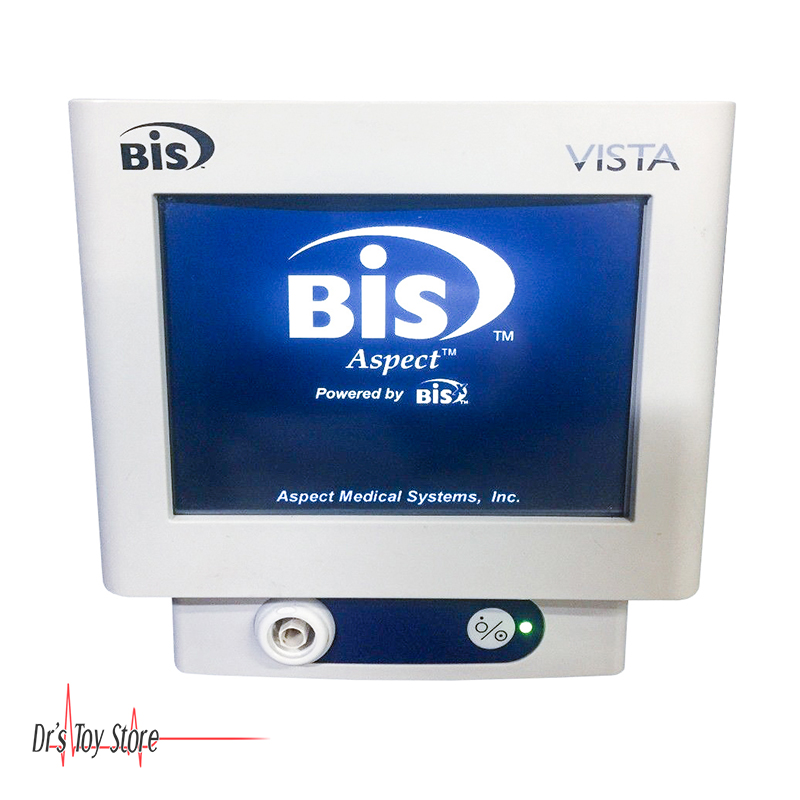

Aspect BIS Vista BiSpectral Index Patient Monitor


SKU: BVB-022 Category: Tag:

Aspect BIS Vista Patient Monitor

Introducing the Aspect BIS Vista Patient Monitor for Sale.

Aspect BIS Vista Patient Monitor Features

  • Processing power and case storage is increased compared to the BIS™ A2000 Monitoring System
  • USB ports for system expandability and real-time updates
  • Utilizes the BIS™ BISX module platform
  • Full-color, touch screen navigation
  • Large LCD display
  • User-configurable settings
  • Integrated record keeping
  • Alarms with user-adjustable limits and volumes
  • Long battery life

Greater awareness of patient-specific reactions to anesthesia and sedation

Patients respond differently to anesthesia, and BIS monitoring can be particularly valuable in patients whose responses are least predictable, including:

  • Geriatric and pediatric patients
  • Frail patients
  • Patients undergoing lengthy surgeries
  • Patients with conditions known to affect responsiveness to anesthesia

Benefits for anesthesia and critical care

BIS measurements can help clinicians formulate the precise type and optimal dosages of anesthetic or sedative medication for each patient. BIS monitoring is most widely used in the OR to help:

  • Regulate anesthetic drug use
  • Decrease the incidence of post-operative side effects such as nausea and vomiting
  • Reduce length of stay in the PACU (recovery room)
  • Prevent intraoperative awareness

BIS monitoring can also be useful during outpatient surgery and conscious sedation.

Aspect BIS Vista Patient Monitor Specifications

  • Weight: 4.5 lbs
  • Dimensions: 7-1/2″ W x 5″ D x 8″ H
  • Display Size: 4″ H x 5-1/4″ W
  • Digital Output: USB ports A, B, RS232 serial port
  • Power Requirements: 100-240 VAC, 50-60 Hz, 0.7 A
  • Electrical Safety: UL 60601-1, IEC 60601-2-26, CAN/CSA-C22.2#601.1
  • Battery Backup: 45 minutes at full operation
  • Recharge Time: 6 hours
  • EEG
  • Epoch Duration: 2 seconds
  • Artifact Rejection: Automatic
  • EEG Scales: 25 μ V/div (+/- 1 mV Full Scale)
  • EEG Sweep Speeds: 30 mm/sec, Display Type – EEG: 15, 25, or 30 mm/sec
  • Computed Parameters: Bispectral Index, Suppression Ratio, EMG, Signal Quality Indicator, and Burst Count
  • User-defined Displays: Trend and real-time EEG waveforms
  • Update Rate: 1 second for BIS number, 10 seconds for Trend
  • Event Markers: User selected
  • Alarms: Auditory and visual, user adjustable limits
  • Filters: ON (2 – 70 Hz with notch) or OFF (.25 – 100 Hz)
  • Mode: Sensor automatically selects mode
