Olympus Exera BF Type 1T160 Video Bronchoscope


Certified Pre-Owned
SKU: OEE-160 Category: Tags: ,

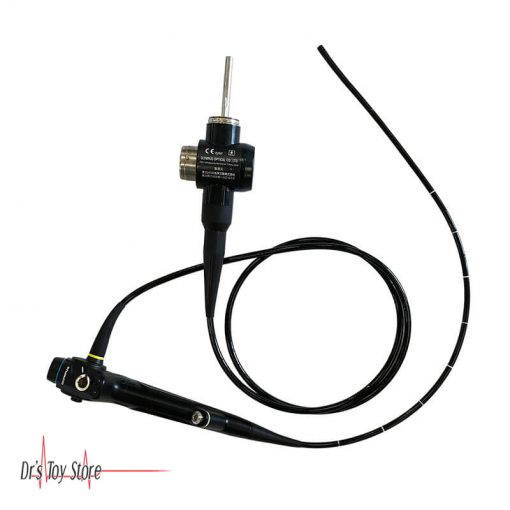

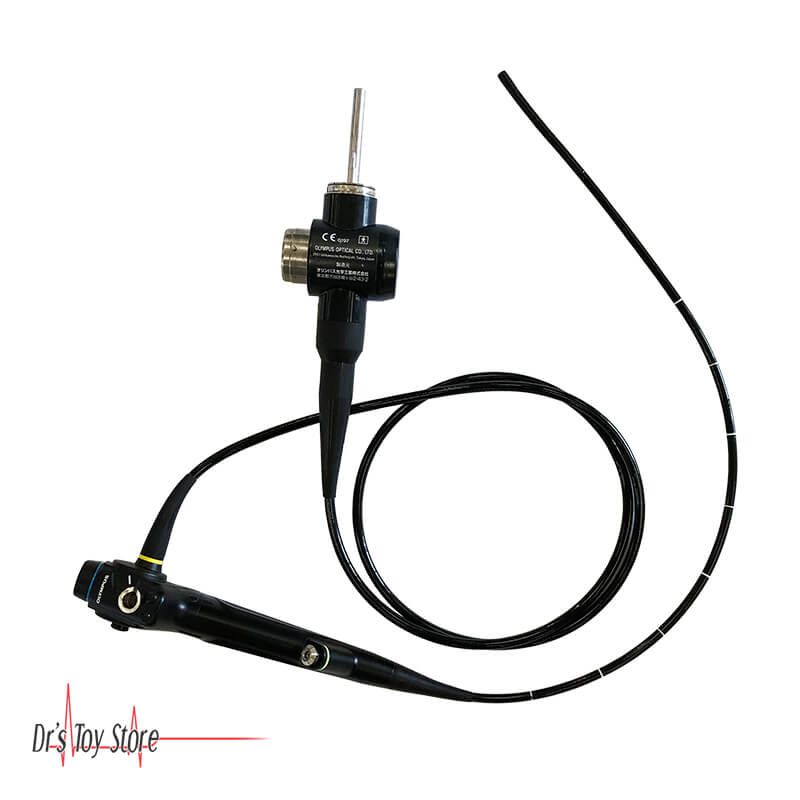

Olympus Exera BF-Type 1T160 Bronchoscope

Introducing the Olympus Exera BF-Type 1T160 Bronchoscope.

Designed to take bronchoscopic treatment to the next level, the new Olympus Exera BF-Type 1T160 Bronchoscope incorporates a wide 2.8 mm channel in a slim insertion tube that measures 6.0 mm in diameter. Besides giving you more treatment options than ever before, this powerful scope also delivers larger, high-quality images thanks to the newly-developed high-resolution color-chip CCD built into the scope tip at the distal end. The Olympus Exera BF-1T160 is fully-compatible with the Olympus CV-160 video system center and its existing CV-100/140 video system centers, offering you a cost-effective solution to all your endoscopic requirements.

Olympus Exera BF-Type 1T160 Bronchoscope Features

  • Incorporates a compact, color-chip CCD (built into the scope tip) to provide clearer and more-detailed images than previous Olympus models
  • Expanded image size makes it easier to observe the minute details and subtle textures critical to successful procedures
  • Its 2.8 mm diameter channel increases suction capability and allows a greater variety of Endo-Therapy accessories to be used, including a balloon-equipped ultrasonic probe
  • Bending section angulation range of 180º UP / 130º DOWN allows easier handling and maneuverability in the smaller distal airways
  • Fully insulated to provide compatibility with electrosurgery and lasers
  • Ergonomically designed control section and switch layout helps reduce operator fatigue
  • Standard accessories are the same as those for all Olympus bronchoscopes

Olympus Exera BF-Type 1T160 Bronchoscope Specifications

  • Optical System
    • Field of View: 120°
    • Depth of Field: 3 to 100 mm
  • Insertion Tube
    • Distal End Outer Diameter: 6.0 mm
    • Insertion Tube Outer Diameter: 6.0 mm
    • Working Length –  600 mm
  • Instrument Channel
    • Inner Channel Diameter: 2.8 mm
    • Minimum Visible distance – 3 mm from distal end
  • Bending Section
    • Angulation Range: Up 180° | Down 130°
  • High Frequency Compatibility: Yes
  • Total Length: 870 mm
